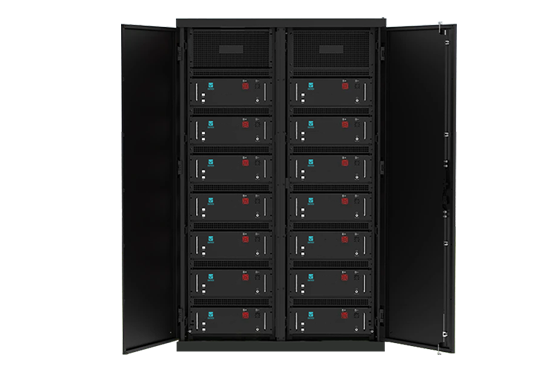

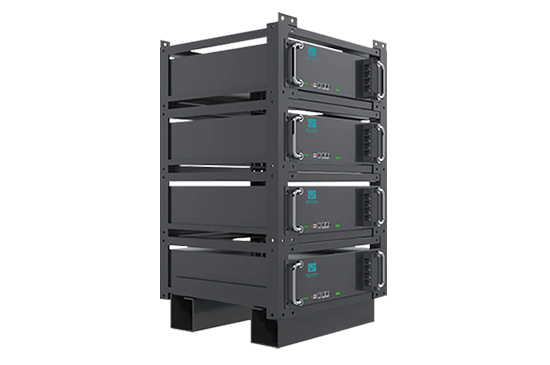

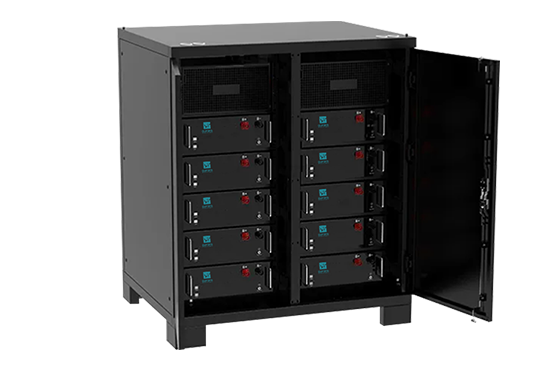

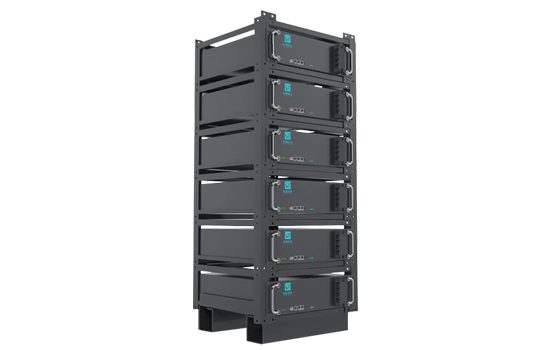

Aurora 4.8KWH 48V Rack-mounted battery cabinet

Model NO. YF-LFP-4.8KWH

・Each module is equipped with an indepent BMS system. ・Safe lithium ion phosphate battery cell. ・Compact size ultralight module. ・Compact and fashionable design fits in your sweet home environment. ・Simple fixing minimize the installation time and cost.

INQUIRY NOW

< >

Main Features

Parameter

Capacity	4.8KWH
Voltage	48V
Nominal Voltage	48V
Nominal Voltage Range	45V-54V
Charge Cut-off Voltage	54V
Discharge Cut-off Voltage	40.5V
Max. Charge&Discharge Current	100A
Recommend Charge&Discharge Current	50A
Standard Charge Current	50A
Max Output Power	4800Wh
Discharge DOD	90%
Communication Port	RS485/CAN
Cycle Times	>6000@25℃
Working Temperature	Discharge:-10~45℃ Charge:0~45℃
Warranty	6 Years
Battery Cell Material	Lithium(LiFePO4)
Certification	CE,IEC62619(Cell&Pack),UL1973,CEC,UN38.3
Product dimension	480550155mm

Product Details

Application
