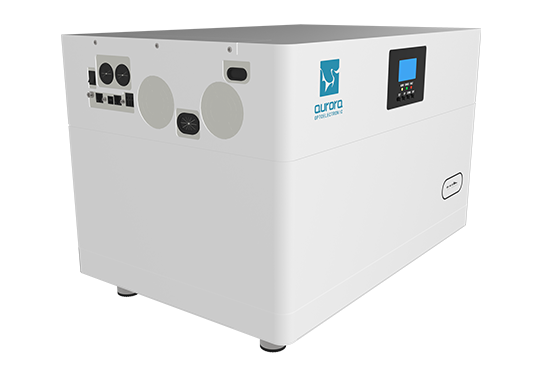

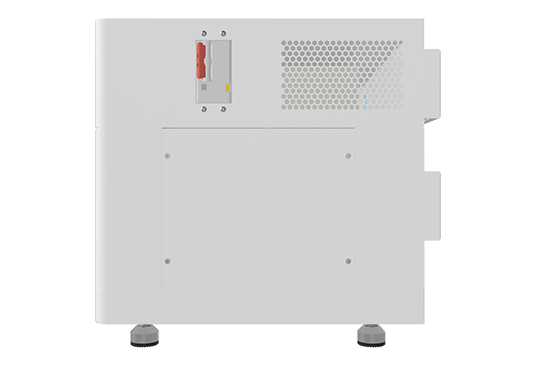

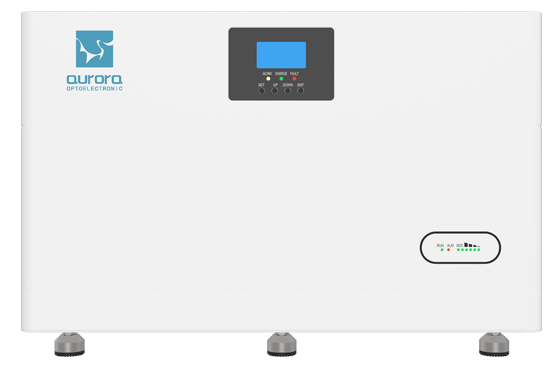

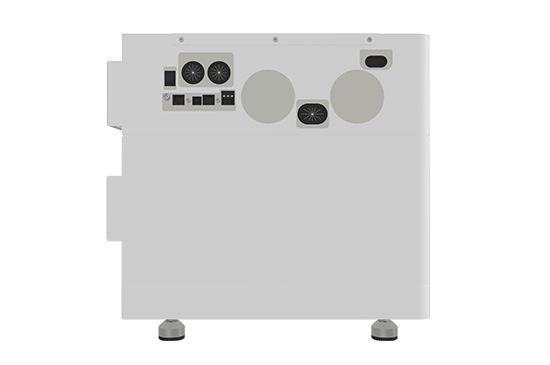

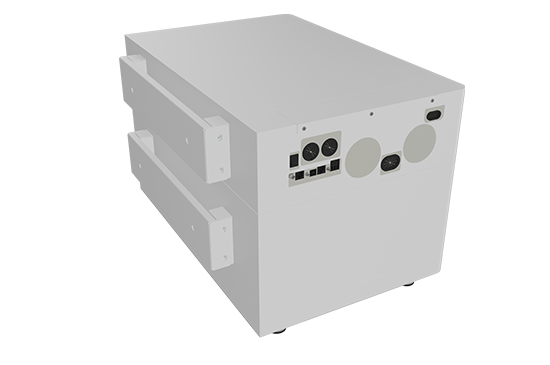

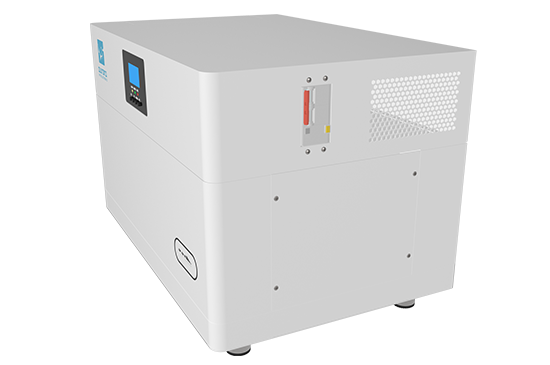

AURORA battery 51.2V integrated lithium battery system with inverter

Model NO. YF-ENGBOX-LV5.12

・All-in-1 solar system: 1*5kva inverter + 1*5kwh battery. ・Low voltage battery system: 51.2V. ・Expandable System. ・Safest Battery & Perfect Compatibility. ・Natural cooling & Easy Installation. ・Certifications Available.

INQUIRY NOW

< >

Main Features

Parameter

Model	YF-ENGBOX-LV5.1
Capacity	5.12KWH
Voltage	48V
Nominal voltage	51.2V
Nominal voltage range	44.8-57.6V
Charge cut-off voltage	57.6V
Discharge cut-off voltage	44.8V (Recommend discharge cut-off voltage = 46V)
Max. Charge & discharge current	100A
Recommend Charge & discharge current	50A
Max Output power	5120Wh
Discharge DOD	90%
Communication Port	RS485/CAN
Communication Mode	WIFI / BLUETOOTH
Ingress protection	IP20
Cycle times	>6000 @25℃
Working temperature	Discharge:-20~45℃ Charge:0~45℃
Warranty	6 years
Battery Cell Material	Lithium (LiFePO4)
Certification	CE, IEC62619(Cell&Pack),UL1973,CEC,UN38.3

Product Details

Application

AURORA battery 51.2V integrated lithium battery system with inverter
