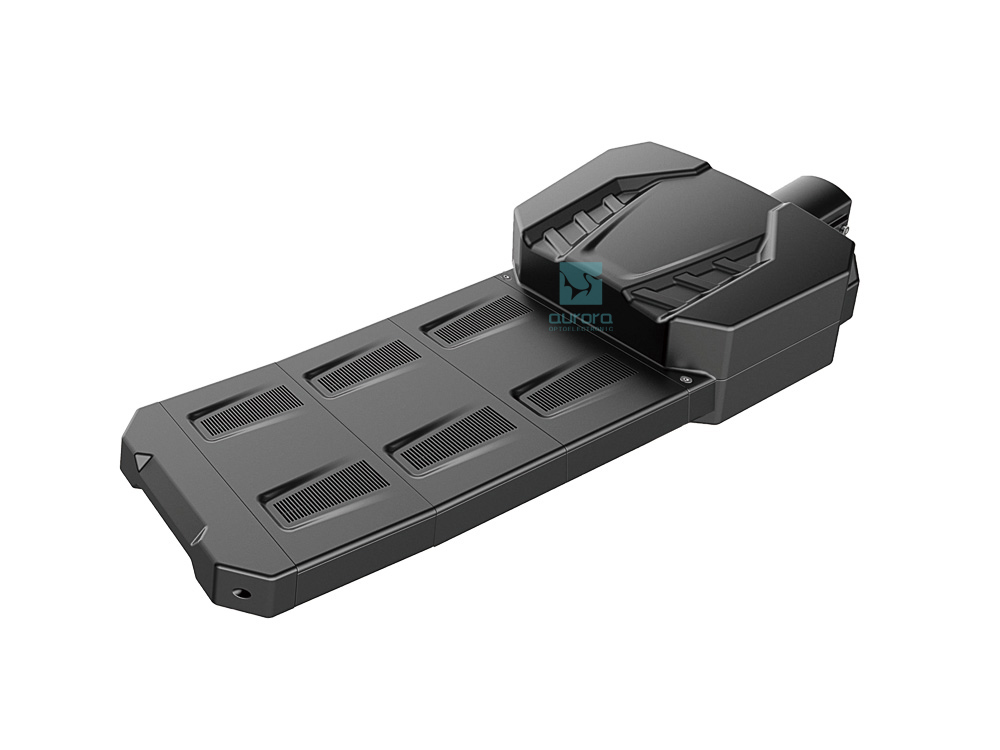

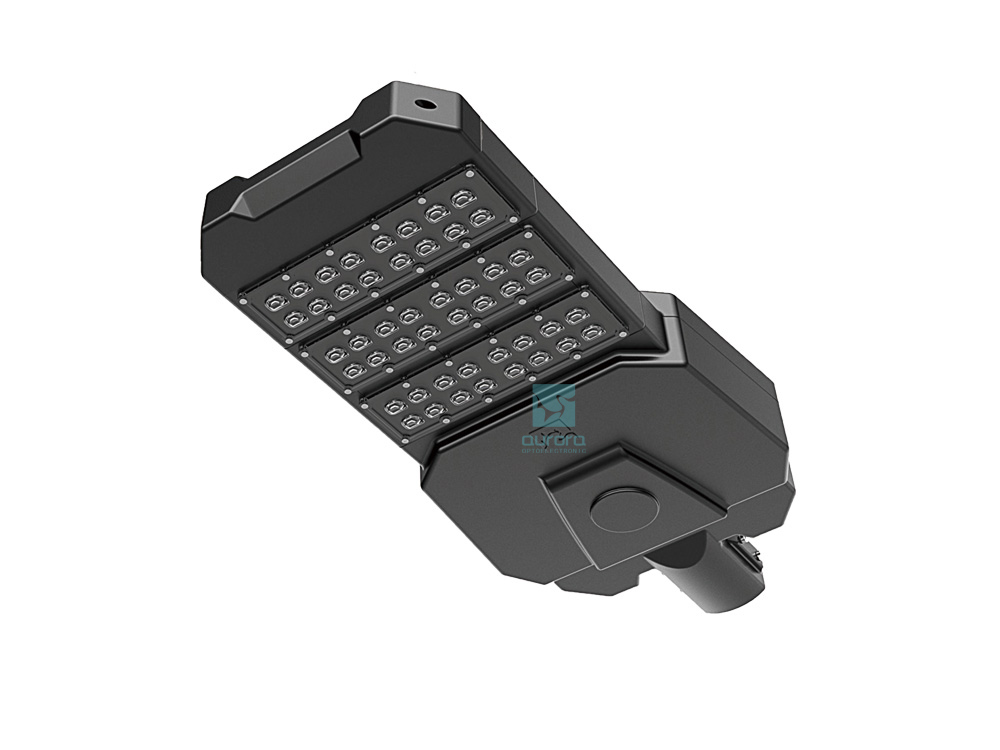

Patent led street light 120w ip66 waterproof 100v-277v AC

Model NO. YF-SL-120W

LED street light patent design, AC-powered, 100v-277v, IP65 waterproof, alloy aluminum body, 160lm/w, SMD led modular structure...

INQUIRY NOW
Main Features

· Patented spaceship alloy aluminum body design, mix and match into different size and power.

· Adopt modular lens light source, energy saving 65% more than traditional lamp based on same power.

· Individual led light source, more convenient for replacement.

· High energy efficiency, 70% energy saving more than traditional lamp based on same lux.

· Super long lifespan, up to 50,000hours.

· Soft lighting, No UV or IR.

· Eco-friendly, Mercury and Xenon free.

· High quality constant current driver, no flicker, better to protect human eyes.

· High quailed Bridgelux led chips, high lumen efficiency, high CRI.

· Integrated lamp heat sink, 100% heat dissipation.

· IP Grade: IP65.


Parameter
MODELYF-SL-120WYF-SL-150WYF-SL-200WYF-SL-240W
LED stree light power120W(3LED Module)120W(4LED Module)200W(5LED Module)240W(6LED Module)
DriverRated input voltage range100Vac—277Vac
Input voltage90-305Vac
Input frequency range50/60HZ
Power factor0.95-0.98(220Vac/50HZ full load)
Max Input current1.8A(100Vac full load)2.4A(100Vac full load)2.8A(100Vac full load)
Output current22V-56V
Output voltage2.7A-4.2A2.8-5.6A4.3-6.67A
Efficiency@220Vac92.0%-93.0%92.0%-93.0%92.5%-93.0%
LampLED type5050SMD
Chips quantity48Pcs64pcs

80pcs

96pcs
LED consumption112.0W140.0W186.0W225W
system consumption120.0W150.0W200.0W

240W

CCT

5000-5500K

Lamp lumen efficiency140-160LM/W
Initial luminous flux18600lm22800lm30000lm36000lm
Luminous maintenance rate≥80%(50000Hrs)
CRIRa≥70
Light distribution curvepls take attachment for reference
Working temperature-40℃ ~ +90℃
Storage temperature-40℃ ~ +85℃
IP gradeIP66
IK gradeIK08
Lifespan50000Hrs
MaterialAluminum + PC
Lamp typeClass I lamp
Lamp body colorMatte black


Product Details

Patent led street light 120w ip66 waterproof 100v-277v AC

· LED street light patent design,

· AC-powered, 100v-277v,

· IP65 waterproof,

· Alloy aluminum body,

· 160lm/w,

· SMD led modular structure


Patent led street light 120w ip66 waterproof 100v-277v AC

· led street lights
