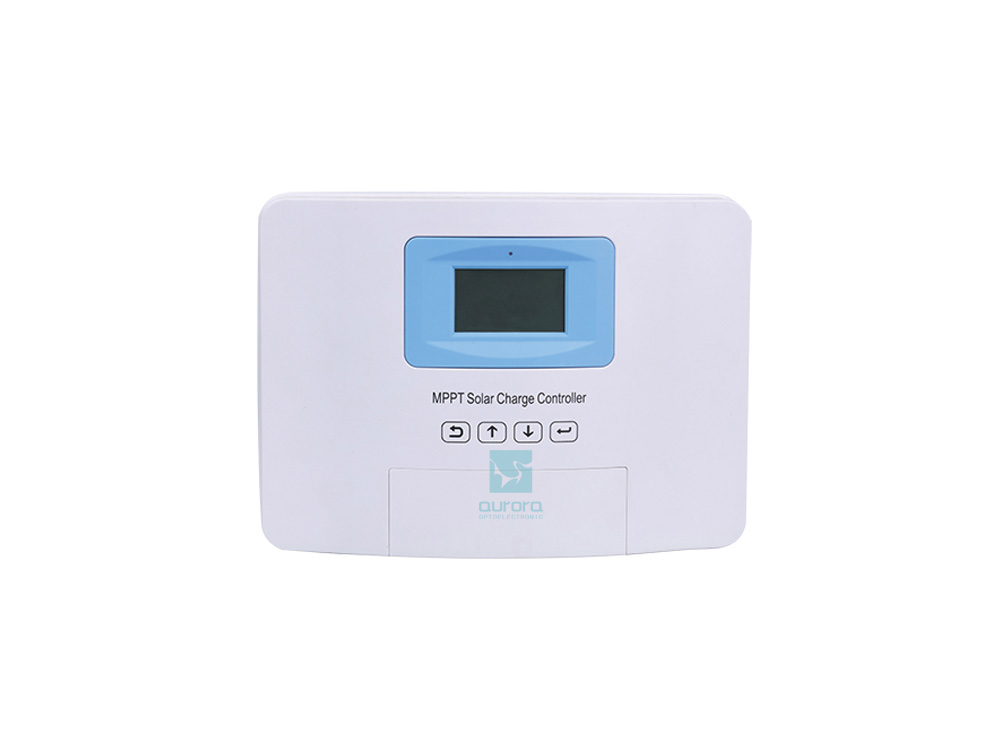

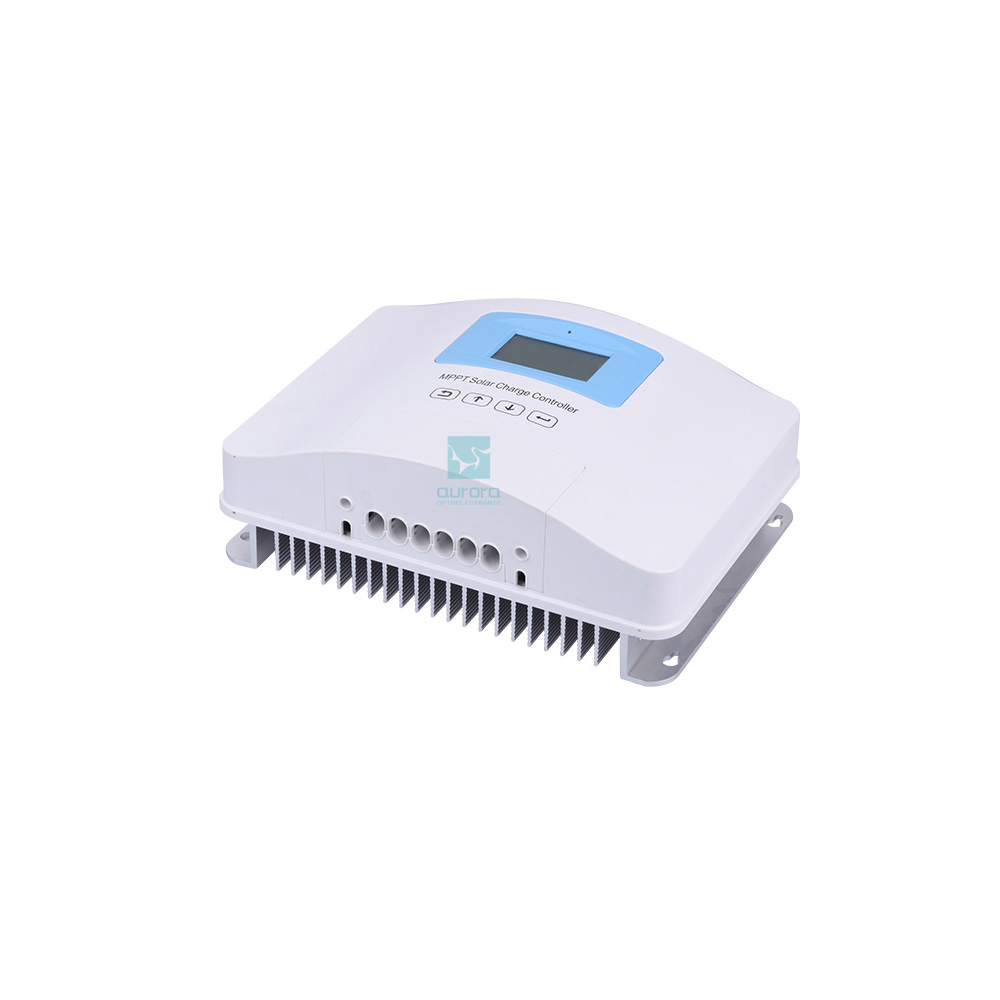

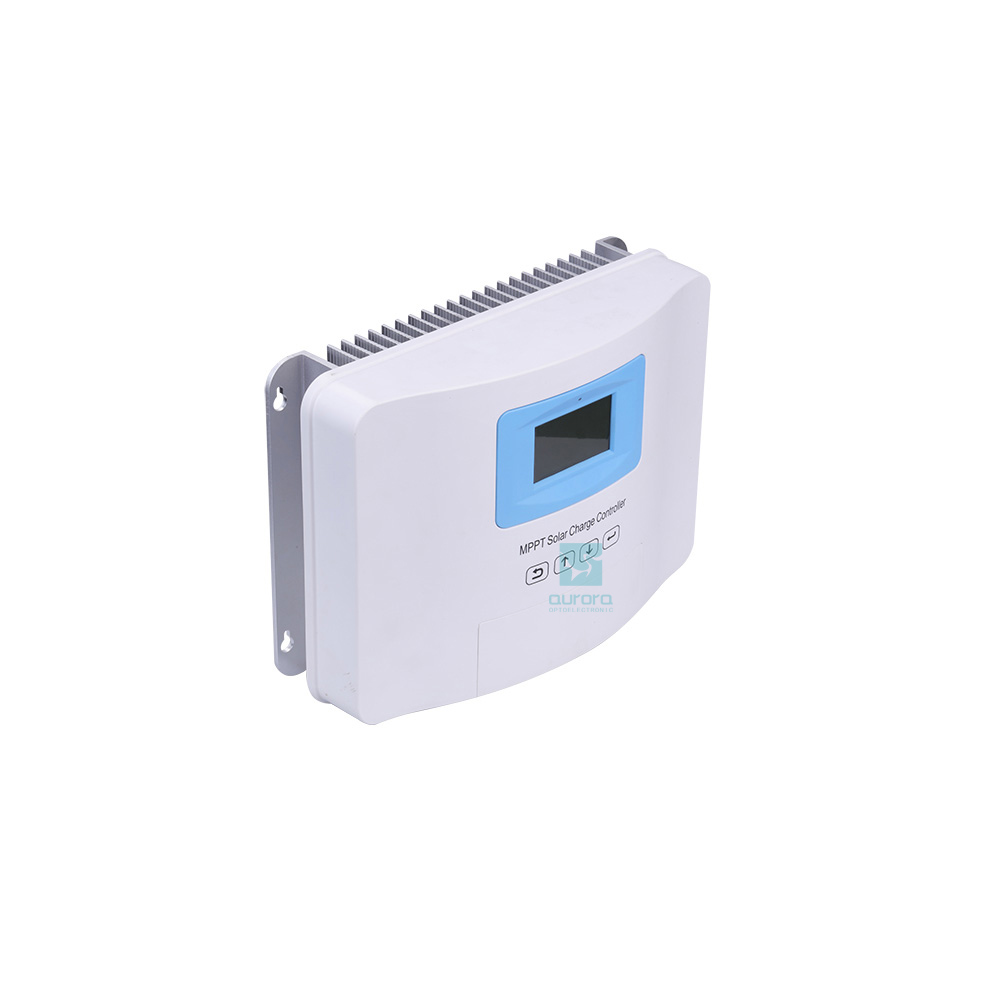

MPPT type, solar charge controller, high efficiency, intelligent battery management, large capacity load start...
INQUIRY NOWProfessional design to promote system reliability
· High charging efficiency, significantly reduce the producttemperature.
· Using international well-know brand semiconductor device such as IR.TI.ST.ON.NXP
· Natural cooling
· P54 protection degree
Maximum power point tracking
· MPPT algorithm can significantly improve the energy utilization efficiency of photovoltaic system, which is 15%~30% higher than traditional PWM charging efficiency.
· Accurate identification and tracking of the maximum power point of multiple peaks
High efficiency
· Charging conversion efficiency is up to98%.
· MPPT efficiency is up to 99.9%
Intelligent battery management
· MPPT charging, constant voltage and float charging, greatly extending battery life
· Significantly extends the battery lifetime up to 50% base on intelligent temperature compensationmanagement
· Support different type of batterysuch as gel battery, sealed battery, open battery, lithium battery
Self consumption power
· Self consumption power<0.9W
Standard Modbus protocol
· Support standard Modbus protocol and meet communication needs in different occasions
Large capacity load start
·Maximum capacitive load and starting with capacitor reach 12000uf
Perfect protect function
· Battery reverse connection protection
· Solar panel reverse connection protection
· Prevent discharging from battery to solar panel
· Battery low voltage protection
· Module overheat protection
· Load short circuit protection
· TVS lightning protection
Content | Model | |||
YM2430 | YM2440 | YM2450 | YM2460 | |
Rated system voltage | 12V/24V | |||
Max Charge current | 30A | 40A | 50A | 60A |
Rated discharge current | Rated discharge current 20A | |||
Maximum capacity load | Supportdifferent type of battery, such as gel batteries, sealed batteries, open batteries, lithium batteries, etc | |||
Battery type | 8~32V | |||
Battery voltage range | Battery voltage +2V~72V | |||
Temp compensation coefficient | -4mV/℃/2V | |||
PV Max Voltage | 100V(low temp),85V(25℃) | |||
PV max input power | 400W(12V) | 530W(12V) | 650W(12V) | 800W/12V |
800W(24V) | 1050W(24V) | 1300W(24V) | 1600W/12V | |
MPPT efficiency | ≥99.9% | |||
Max. charge efficiency | 98% | |||
Self consumption power | <0.9W | |||
Communication | RS485/BT | |||
Storage/Operating temperature range | -25~45℃ | |||
Relative humidity range | 0~95% | |||
Max. operating altitude | 3000m | |||
Degree of protection | IP32 | |||
Certification | CE,ROHS | |||
N.W | 2kg | 3.5kg | ||
G.W | 2.1kg | 3.85kg | ||
Product size(mm) | 244*178*83mm | 305*210*86.8mm | ||
Packing box size(mm) | 310*230*118mm | 385*285*150mm |
