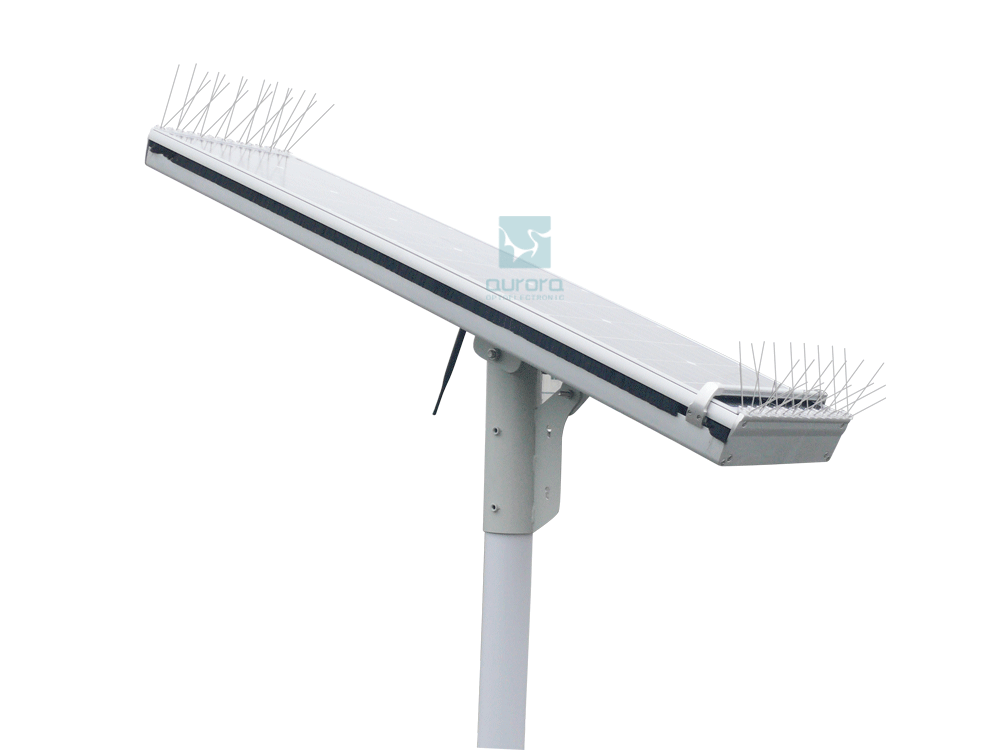

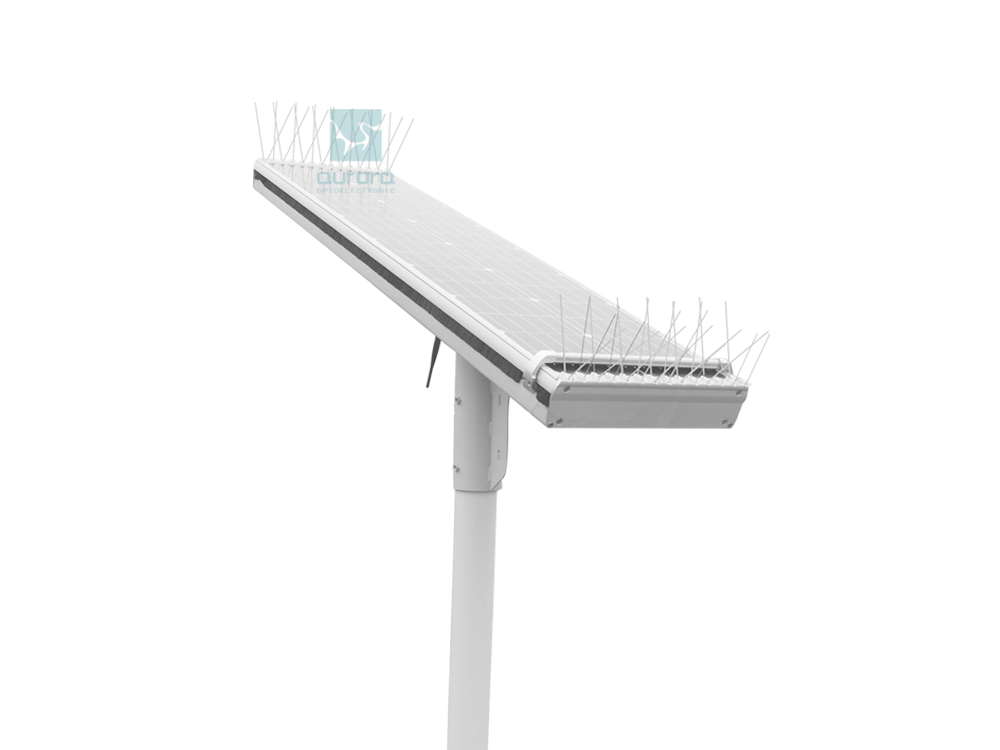

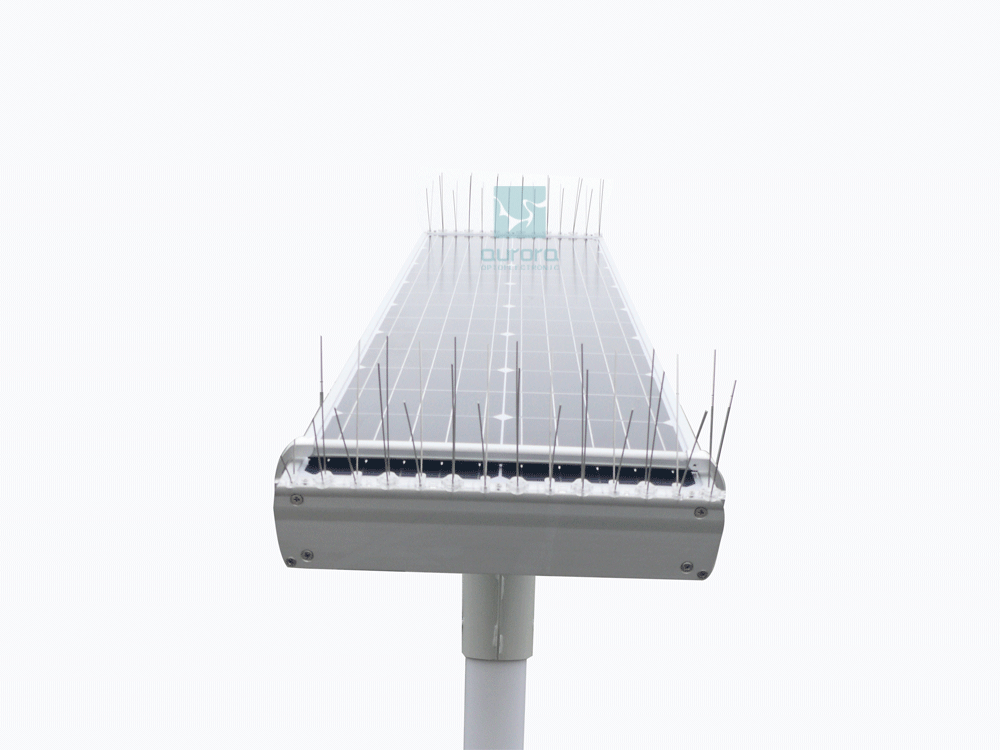

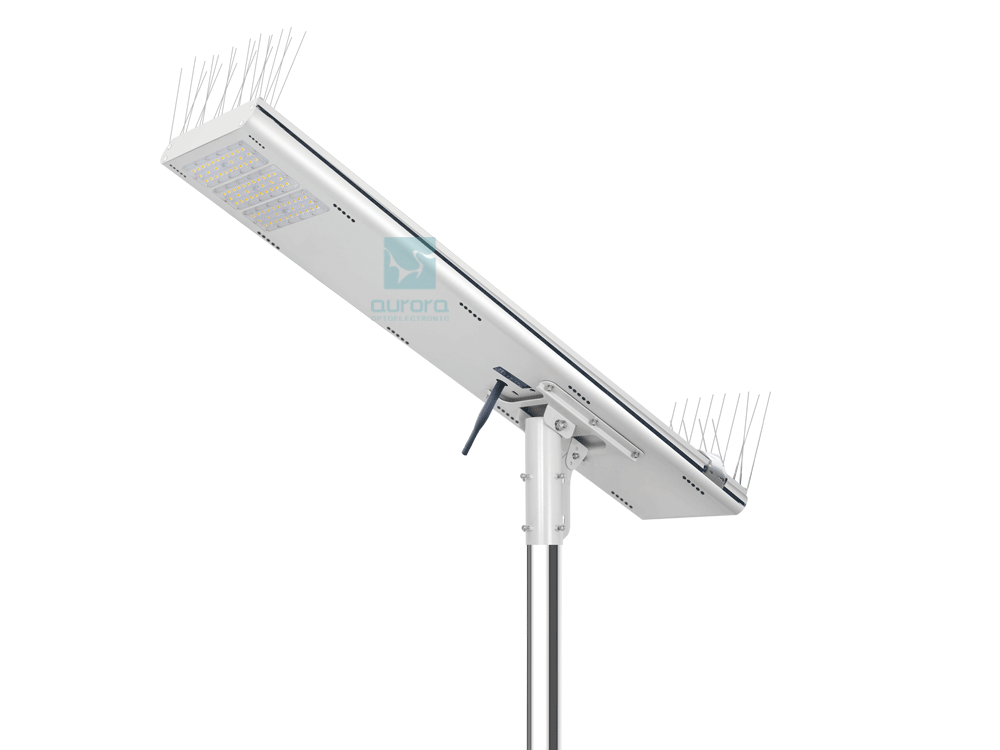

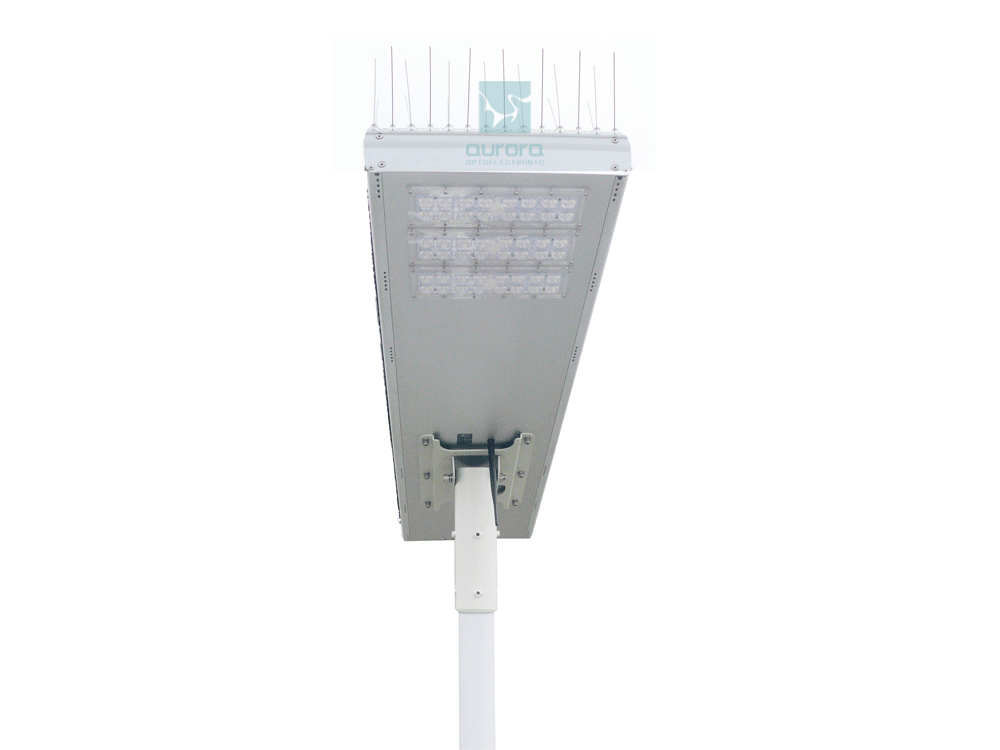

60w all-in-one solar street light manufacturer with its own cleaning system

Model NO. YF-SHA-60W

All in one solar street light with Self robot cleaning system, anti-brid design, PIR/microwave/Bluetooth/IoT function for optional, 180lm/w, MPPT charge controller, LiFePO4 battery pack, Multiple installation methods, adjustable bracket...

INQUIRY NOW
Main Features

Ten years of industry experience

60w all in one solar street light with self cleaning system

· PIR/microwave/Bluetooth/IoT system for optional,

· Multiple installation methods,

· Energy saving, individual battery pack,

· Adjustable bracket


· Streamline and Integrated design by aviation grade aluminum alloy body, anti-corrosion surface treatment for >10years lifespan, patented product.

· DIY module structure, simply divided by 3parts, solar panel, led with lamp case and energy pack.

· Amazing lighting effect with high brightness chips. Achieve more than 170lm/w

· Bluetooth function, just use mobile to control the lamp and set working parameter.

· PIR/microwave sensor for optional.

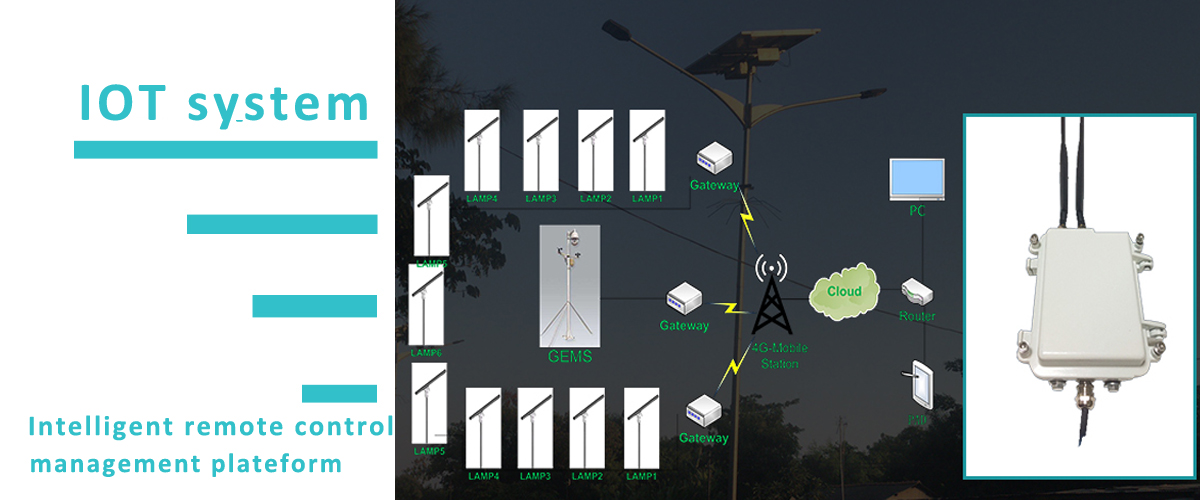

· Internet of things is also optional function, make all lamp work smart and intelligent control

· Range from 2000lm to 12000lm, meet even exceed your expectation,

· Simple and fool proof installation, just put the bracket onto pole and fasten the screws.

· Self-cleaning system


Why need to clean solar panel?

· Dust, sand, bird drops or any other particles on surface of the solar panel will reduce charge efficiency.


How to clean the solar panel?

· Traditional way is artificially cleaning by pressured water wash in regular period. it is labor costly especial for high pole.


Do you have any better solution?

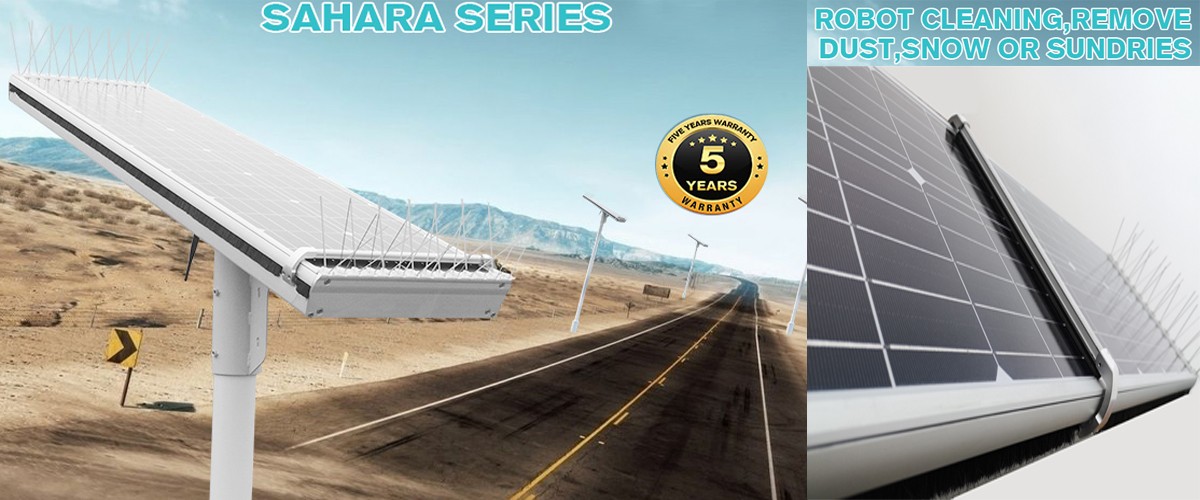

· SAHARA series integrated Robot cleaning system with solar street light, from dawn and dusk,  this solar street light will automatically clean the solar panel twice. keep all panel surface is tidy and neat to achieve best power generation performance. it is free of maintenance work.


How many times will it auto clean per day?

· twice per day, clean from dawn and dust.1 cycle back and forth via solar panel surface


How much energy power the cleaning system will consume?

· it's about 3-5w.


What’s type material of cleaning brush? How is the lifespan?

· It's anti-Uv Rubber brush. same as what the car windshield wiper. More than 3 years in outdoor environment.


Parameter
ModelYF-SHA-60WYF-SHA-80W
LED Street Light Power60W(3 LED Modules)80W(4 LED Modules)
PV Model90W120W
Light Efficiency150lm/w150lm/w

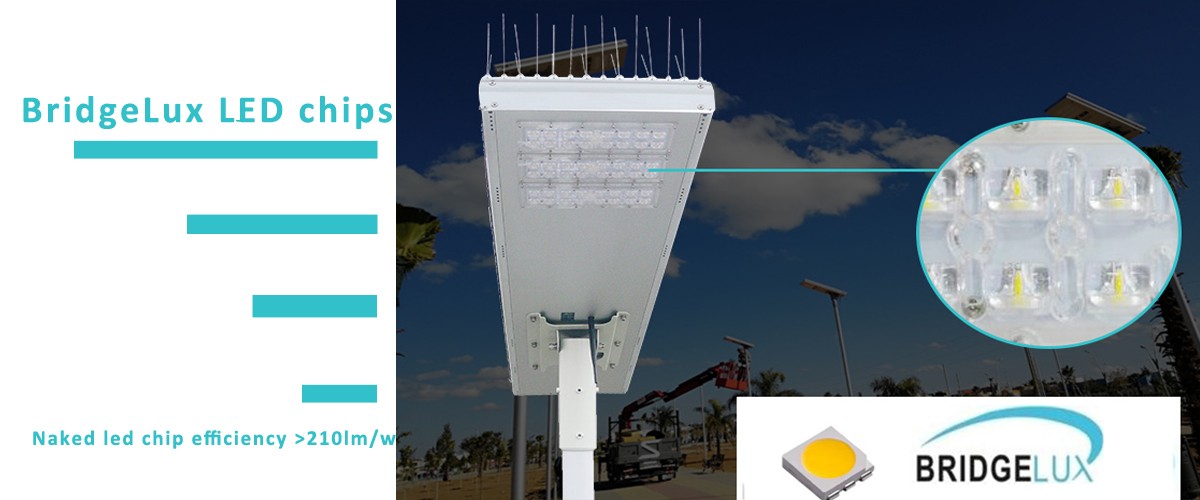

LED Chip5050 LED BridgeLux5050 LED BridgeLux
Light Distribution TypeType IIType II
Viewing Angle70°*140°70°*140°
CRI>80>80
Lifetime>10 years>10 years
Battery TapeLiFePO4 BatteryLiFePO4 Battery
Battery Capacity422WH768WH
Battery life time(5-8 years)(5-8 years)
MPPT Change ControllerIncluding Wireless Communucation ModuleIncluding Wireless Communucation Module
Working modelWith motion sensorWith motion sensor
Circuit ProtectionOvercharge,Discharge,short circuit,open load,lightning protection and other functionsOvercharge,Discharge,short circuit,open load,lightning protection and other functions
Life Time8years8years
Charging Time(STC)6-8 Hours(With STC)6-8 Hours(With STC)
CertificateCE、ROSH、IP65CE、ROSH、IP65
Storage Temperature0℃~45℃0℃~45℃
Protection GradeIP65IP65
Dimension Size(mm)L1310*W358*H98.8mmL1610*W358*H98.8mm
Installation Height6m to 8m light pole6m to 8m light pole
Installation Diameter≤80mm≤80mm
Distance of Installation20m to 35m25m to 40m
Warranry3years3years


Product Details

solar street light china

street light revit

smart led street light

all in one solar light

20w led street light

Solar panels

powerful solar street lights

Solar street light structure diagram

our companyOur honorOur exhibitionOur transportation service

FAQ:

Q: how about your company history?
A: our company original start from 2005 to supply components and accessory for led lighting company, then move to & only focus solar street lighting production since 2010, we have 10 years of solid business experience.



Q: What is your main product?
A: we used to manufacture various type of led outdoor light, but now we just focus on solar lighting, grid power light and some off-grid home system.



Q: What is your business service?
A: all our product is self-developed patent product, we also provide ODM/OEM service, semi knock down to help customer lower the tariff and fulfill local content.



Q: What is your core competence & flexibility?
A: we have stronger and experienced R & D, quality control, production and international sales team. Offer quick response and action to customer inquiry or characteristic requirement. Our product is module design, there is great flexibility to extend the specification to meet customer expectation.





Q: are your manufacturer? how about your production capacity and delivery lead time?

A: yes, we have more than 3000squre electronic parts production, final assembly and testing workshop, and another 8000square meters for metal part diecast, powder coating, and mechanical process. We also keep minimum inventory for common parts, so our lead time, sample: 3 days, small batch: 1-week, bulk order: 2-4weeks.



Q: How many years of warranty offered? How is lifespan of your product
A: all our product line offers 3 years of warranty base on terms and conditions, and lifespan is 6-8 years depends on working environment.



Q: do you help installation, maintenance and commissioning?

A: we provide good technical support, training or even on-site commissioning upon customer request. Very good one stop turnkey solution & service.
