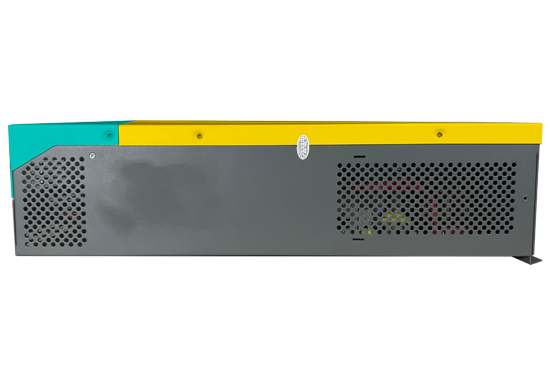

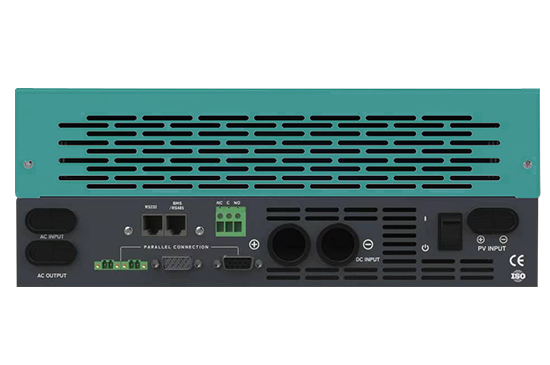

Pure sine wave solar inverter(on/off Grid)
Output power factor 1.0;
Built-in Lithium battery automatic activation.
Smart battery charge design to optimize battery life.
Built-in anti-dust kit for harsh environment.
Model | YF-FS-HP 6248 |
Input Formation | L+N+PE |
AC Input | 220/230/240VAC |
Input Voltage Range | 90-280VAC+3V(Normal Mode)185-264VAC+3V(UPS Mode) |
Frequency | 50/60Hz(Adaptive) |
Rated Power | 6200W |
AC Output Power | 6200W |
Load Cut Off Voltage | 44V |
Load Return Voltage | 52V |
Output Voltage(AC) | 220/230/240VAC |
Output Frequency | 50/60Hz |
Output wave | Pure Sine Wave |
Peak Power | 12400VA |
Grid Voltage Range | 195-253VA |
Output Current | 26.9A |
Rated Voltage | 48VDC |
Constant Charging Voltage | 56.4VDC |
Float Charging Voltage | 54V |
PV Charging Method | MPPT |
Max PV Input Power | 7500W |
PV Input Voltage Range | 60-500VDC |
MAX PV Input Voltage | 500VDC |
MAX PV Input Current | 27A |
MAX PV Charge Current | 120A |
MAX AC Charge Current | 100A |
MAX Charge Current | 120A |
Parallel Interface | Support Parallel |
Operating Temperature | -10°C~50°C |
