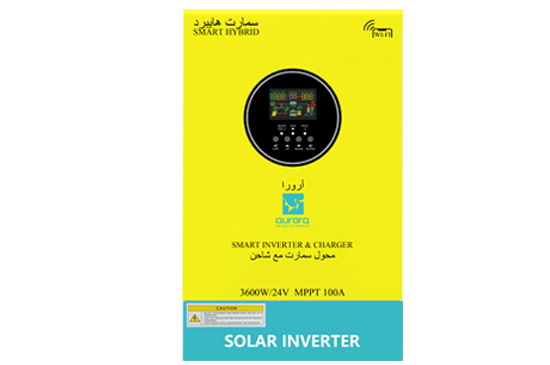

Aurora 24V High Frequency On/off Grid Solar Inverter

Model NO. YF-FS-HP 3624

INQUIRY NOW

< >

Main Features

 Pure sine wave solar inverter(on/off Grid)

 Output power factor 1.0;

 Built-in Lithium battery automatic activation.

 Smart battery charge design to optimize battery life.

 Built-in anti-dust kit for harsh environment.

Parameter

Model	YF-FS-HP 3624
Input Formation	L+N+PE
AC Input	24V
Input Voltage Range	90-280VAC+3V(Normal Mode)185-264VAC+3V(UPS Mode
Frequency	50/60Hz(Adaptive)
Rated Power	3600W
AC Output Power	3600W
Load Cut Off Voltage	22V
Load Return Voltage	26V
Output Voltage(AC)	220/230/240VAC
Output Frequency	50/60Hz
Output wave	Pure Sine Wave
Peak Power	7200VA
Grid Voltage Range	195-253VA
Output Current	16.3A
Rated Voltage	24VDC
Constant Charging Voltage	28.2VDC
Float Charging Voltage	27V
PV Charging Method	MPPT
Max PV Input Power	5000W
PV Input Voltage Range	60-500VDC
MAX PV Input Voltage	500VDC
MAX PV Input Current	18A
MAX PV Charge Current	100A
MAX AC Charge Current	80A
MAX Charge Current	100A
Parallel Interface	Not support Parallel
Operating Temperature	-10°C~50°C

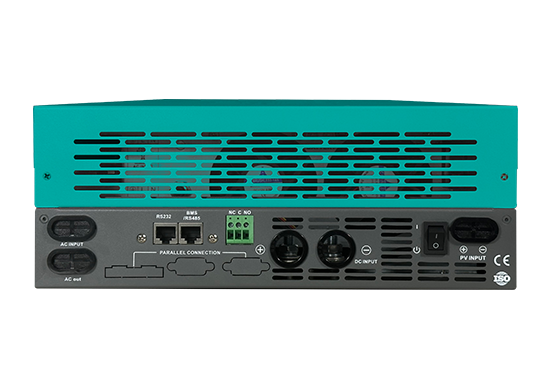

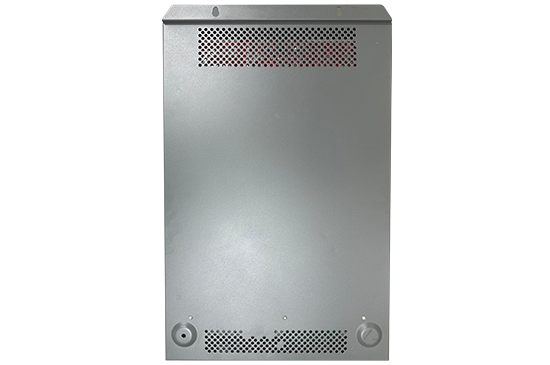

Product Details
