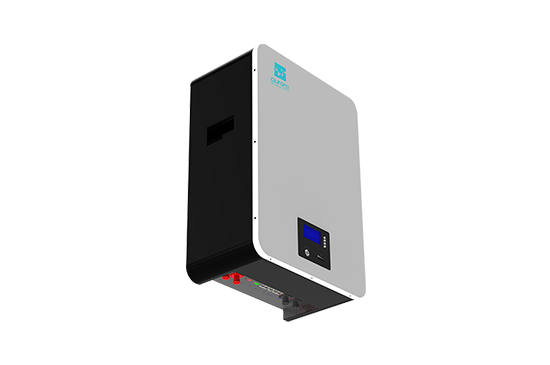

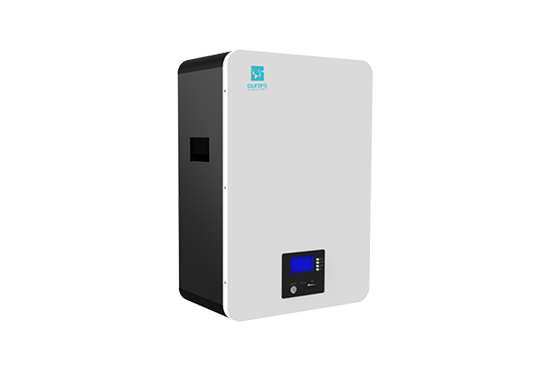

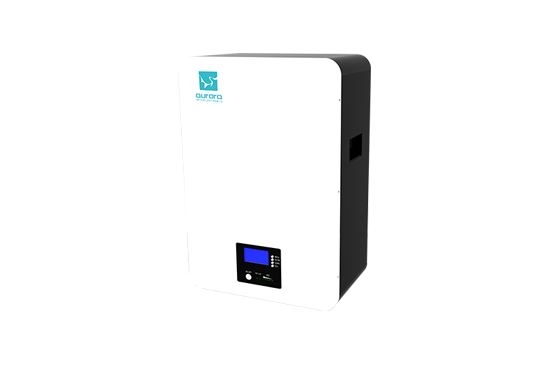

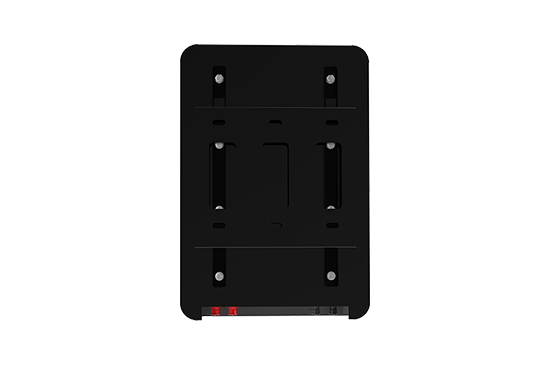

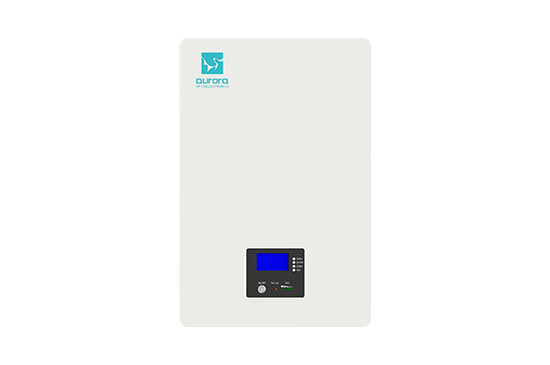

off grid solar power system 10KWH lithium battery pack

Model NO. YF-LFP-10KWH

10KWH lifepo4 battery capcity, 51.2v 200ah capacity, >6000cycles, 6years warranty, brand new grade A lifepo4 battery cell

INQUIRY NOW
Main Features

Support on/off-grid

Safe & Reliable: Lithium Iron Phosphate (LFP)

Easy installation. Flexible communication WLAN, Ethernet, 4G

Parameter
Model YF-LFP-10KWH
Capacity10KWH
Voltage48V
Nominal voltage51.2V
Nominal voltage range44.8-57.6V
Charge cut-off voltage57.6V
Discharge cut-off voltage44.8V (Recommend discharge cut-off voltage = 46V)
Max. Charge & discharge current150A
Recommend Charge & discharge current100A
Nominal Output power10240Wh
Discharge DOD80
Communication PortRS232/RS485/CAN
Communication ModeWIFI / BLUETOOTH
Ingress protectionIP20
Cycle times>6000 @25℃
Working temperatureDischarge:-40~60℃ Charge:0~55℃
Warranty6 years
Battery Cell MaterialLithium (LiFePO4)
CertificationCE, IEC62619(Cell&Pack),UL1973,CEC,UN38.3
