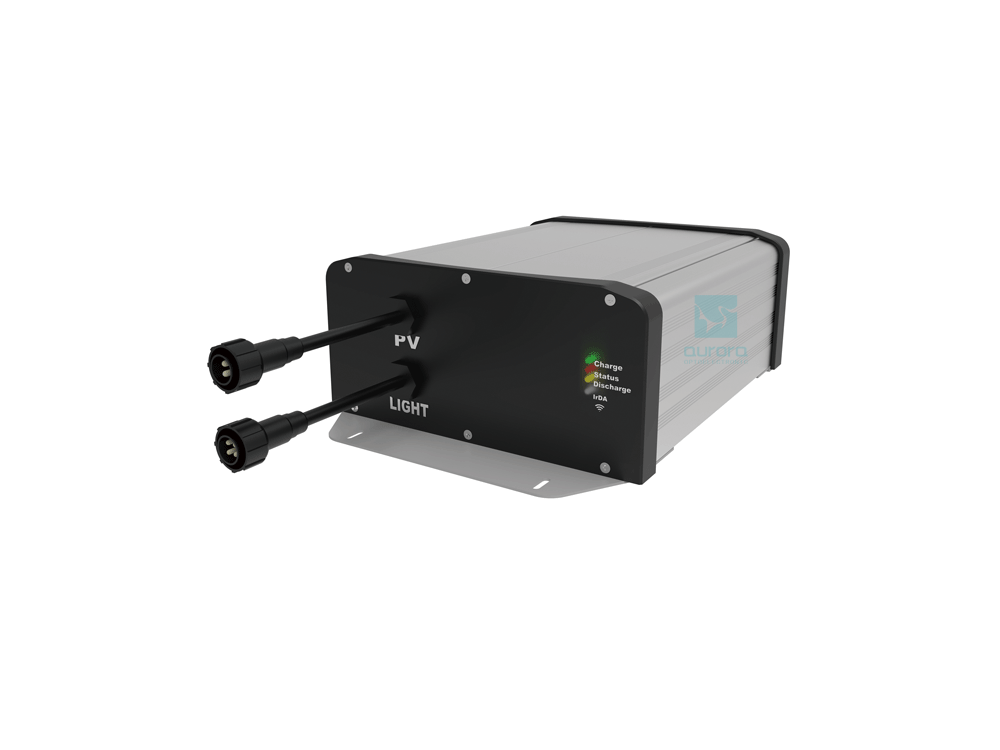

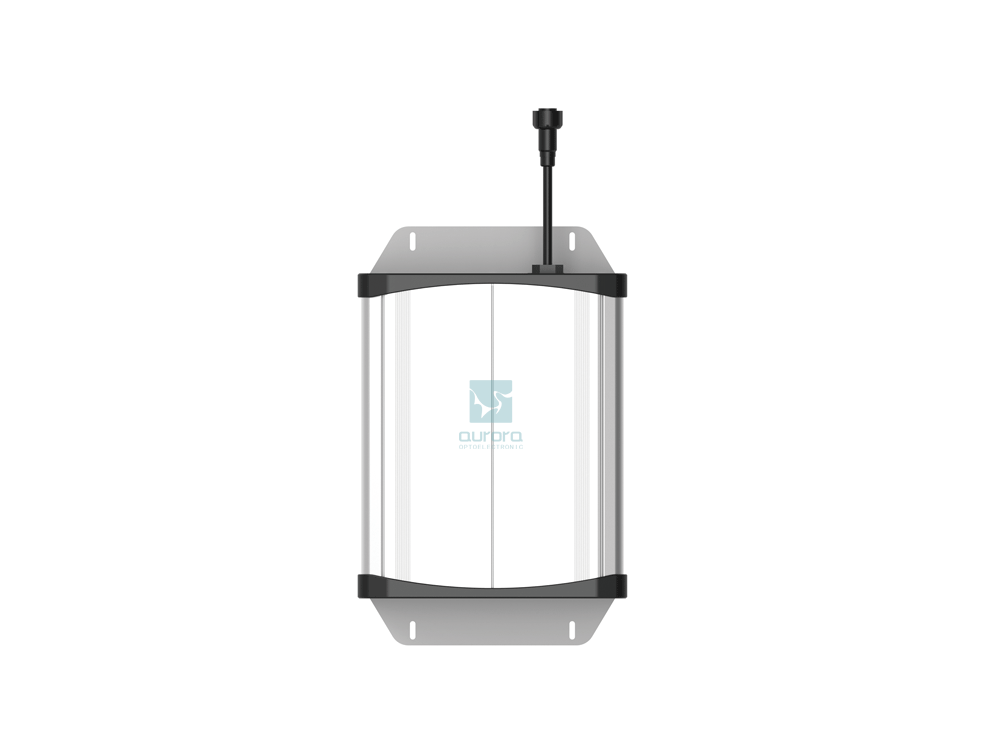

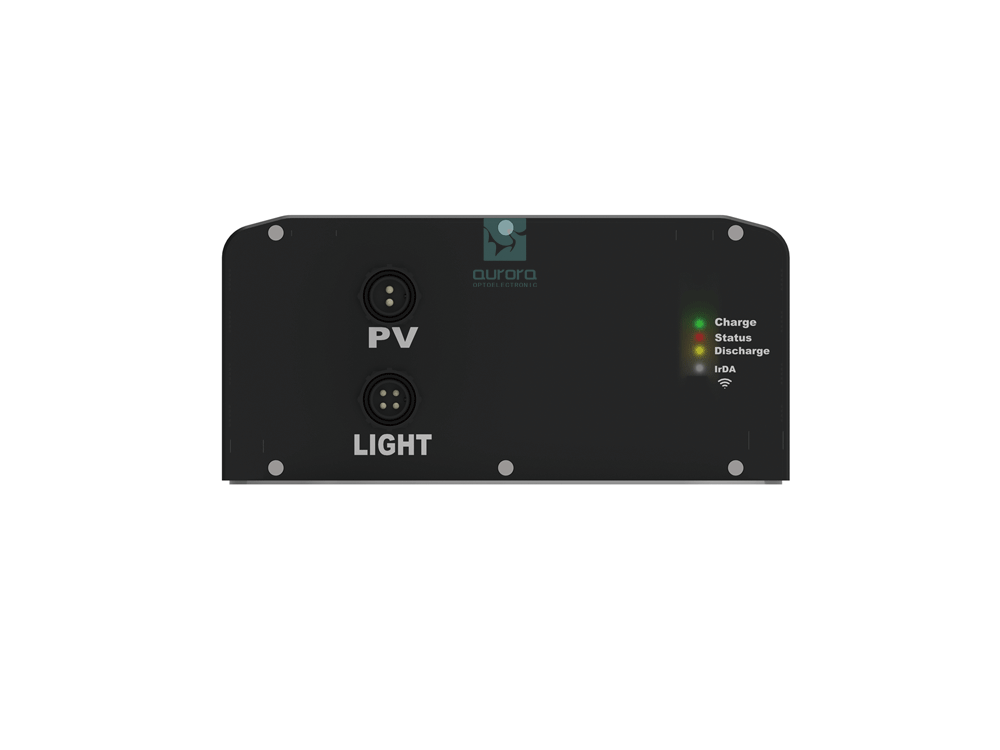

3.2V battery pack energy pack energy system solar system LiFePO4 battery for solar street light

Model NO. YF-BP-3.2V-160WH

Solar street light Battery pack, energy pack, solar off grid system, IP65, bluetooth app..

INQUIRY NOW
Main Features

· The battery adopts power lithium iron phosphate battery, the cycle life is more than 3000 times, and it can be used for 5-8 years;

· MPPT controller, faster charging and better protection function;

· LED adopts patented adaptive function, only need to set power, automatically adapt to 5-17 strings of LED lamp beads

· All aluminum alloy shell, anodized surface, anti-corrosion, reliable structure, convenient installation;

· Bluetooth APP management, human-computer interaction is more intuitive, and the operation is convenient;


Parameter
Model No.YF-BP-101YF-BP-102YF-BP-103YF-BP-104YF-BP-105
Battery typeLiFePO4
Battery capacity160WH288WH384WH576WH768WH
Battery capacity15W20W30W
40W40W
LED voltage5V—35V
MPPT voltage10V≤Vmp≤25V
Charge modelMPPT
Charge current15A20A30A
Solar panel input volts MaxVmp≤25V
Communicate wayPm≤80WPm≤100WPm≤150W
Battery TapeBluetooth app
Working model12hrs (can be adjusted)
N.W(kg)344.56.57
G.W(kg)3.54.5477.5
Demension(mm)260*245*86mm
Ctn size(mm)320*285*120mm
Working temperature(℃)-20℃ --- +65℃
IP gradeIP65


Product Details

3.2V battery pack energy pack energy system solar system LiFePO4 battery for solar street light

· Solar street light Battery pack,

· energy pack,

· Solar off grid system,

·  IP65,

·  Bluetooth app


3.2V battery pack energy pack energy system solar system LiFePO4 battery for solar street light

· LiFePO4 battery pack solar system


Application
