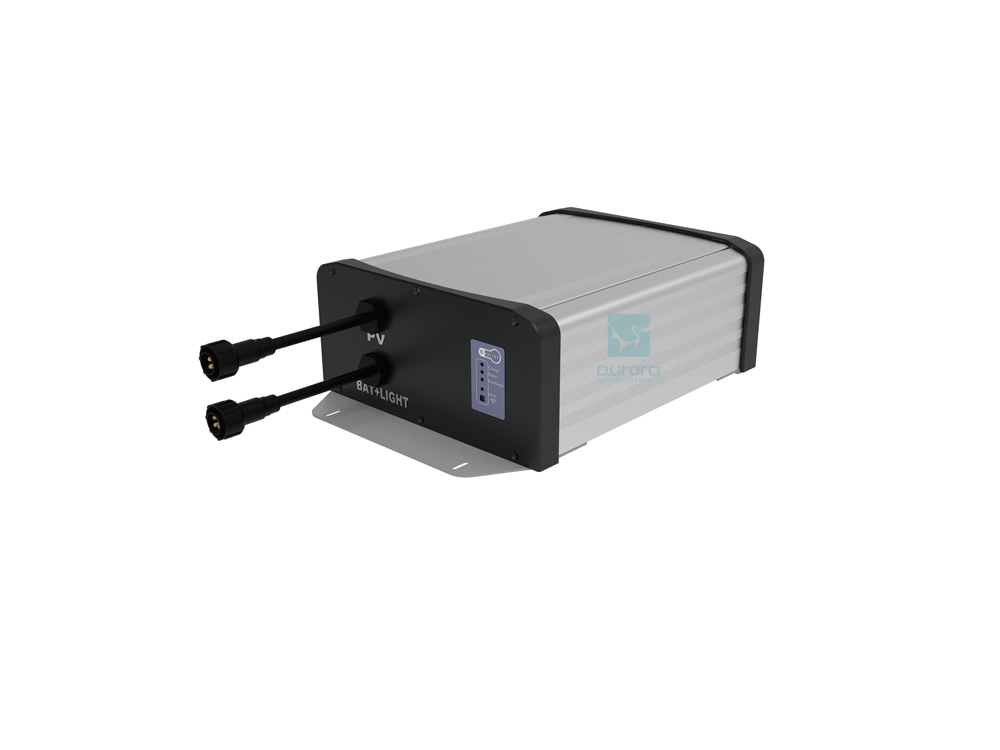

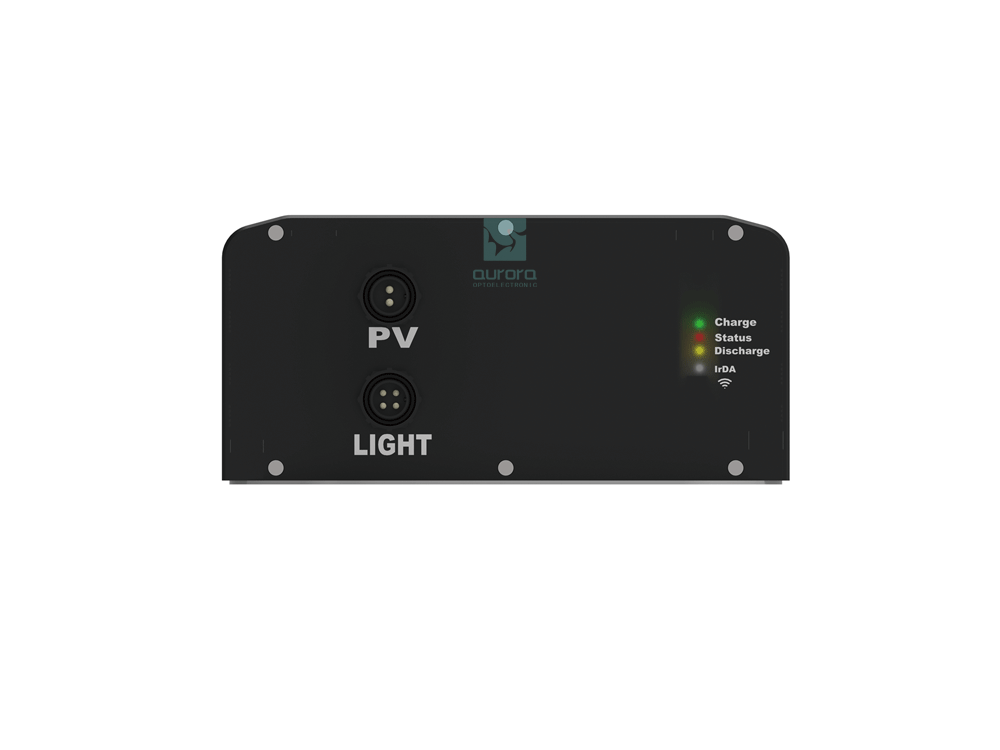

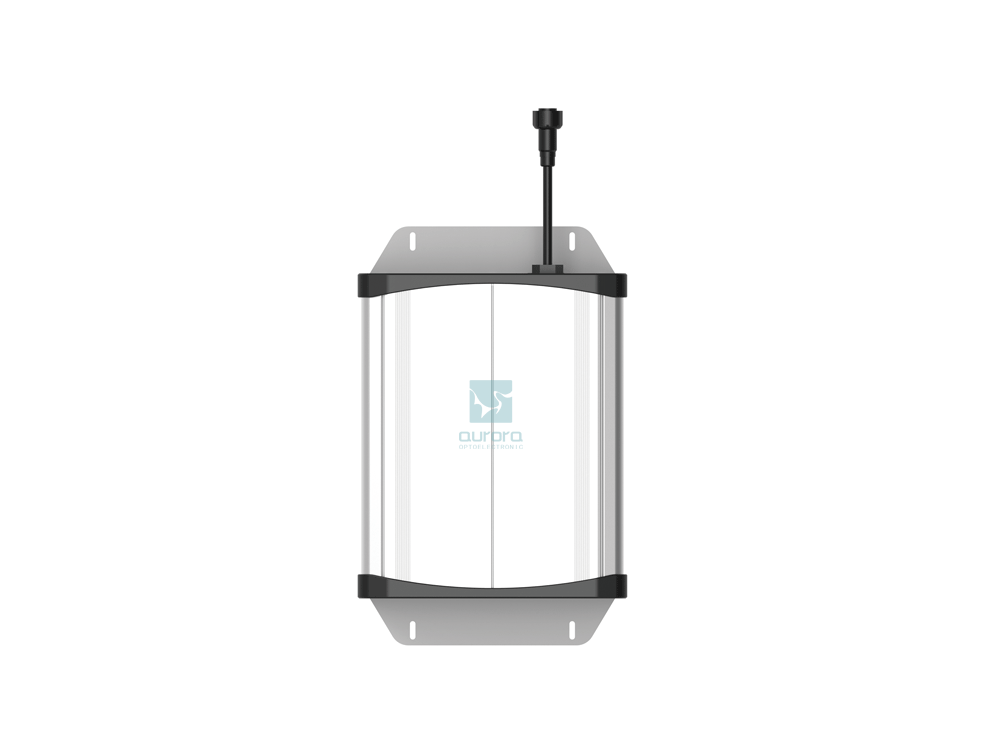

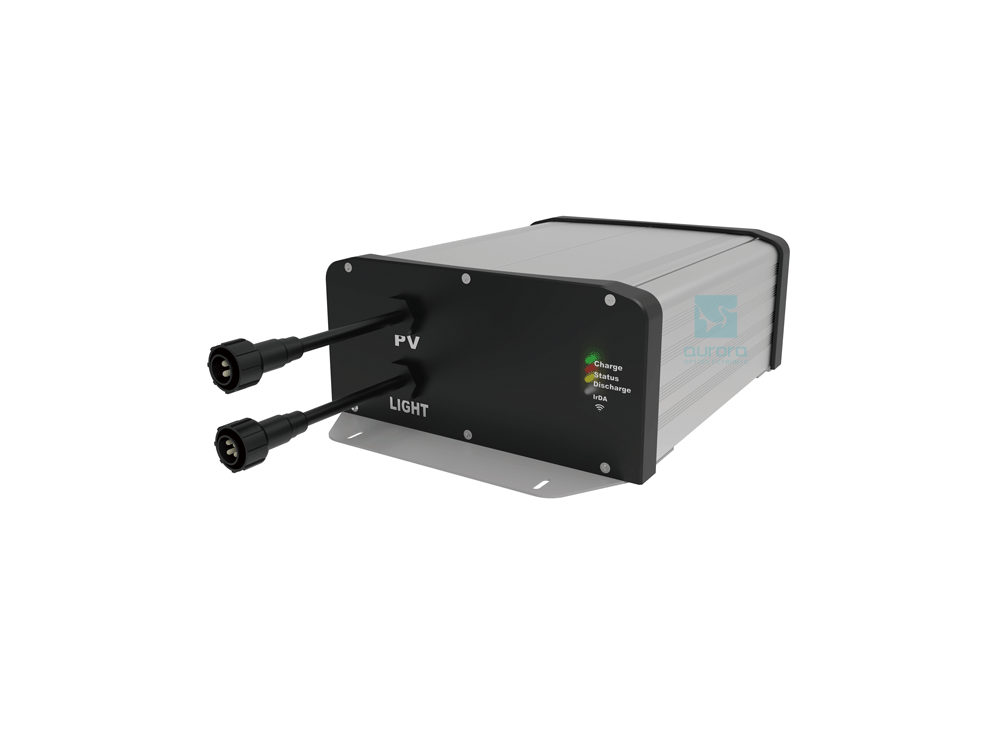

Solar street light Battery pack, energy pack, solar off grid system, IP65, bluetooth app..
INQUIRY NOW
· The battery adopts power lithium iron phosphate battery, the cycle life is more than 3000 times, and it can be used for 5-8 years;
· MPPT controller, faster charging and better protection function;
· LED adopts patented adaptive function, only need to set power, automatically adapt to 5-17 strings of LED lamp beads
· All aluminum alloy shell, anodized surface, anti-corrosion, reliable structure, convenient installation;
· Bluetooth APP management, human-computer interaction is more intuitive, and the operation is convenient;
| Model No. | YF-BP-101 | YF-BP-102 | YF-BP-103 | YF-BP-104 | YF-BP-105 |
| Battery type | LiFePO4 | ||||
| Battery capacity | 160WH | 288WH | 384WH | 576WH | 768WH |
| Battery capacity | 15W | 20W | 30W | 40W | 40W |
| LED voltage | 5V—35V | ||||
| MPPT voltage | 10V≤Vmp≤25V | ||||
| Charge model | MPPT | ||||
| Charge current | 15A | 20A | 30A | ||
| Solar panel input volts Max | Vmp≤25V | ||||
| Communicate way | Pm≤80W | Pm≤100W | Pm≤150W | ||
| Battery Tape | Bluetooth app | ||||
| Working model | 12hrs (can be adjusted) | ||||
| N.W（kg） | 3 | 4 | 4.5 | 6.5 | 7 |
| G.W（kg） | 3.5 | 4.5 | 4 | 7 | 7.5 |
| Demension（mm） | 260*245*86mm | ||||
| Ctn size(mm) | 320*285*120mm | ||||
| Working temperature（℃） | -20℃ --- +65℃ | ||||
| IP grade | IP65 | ||||
3.2v Battery management system power pack solar power system for solar street lights
· Solar street light Battery pack,
· Energy pack,
· Solar off grid system,
· IP65,
· Bluetooth app
3.2v Battery management system power pack solar power system for solar street lights
· LiFePO4 battery pack solar system
