30W integrated solar street lamp outdoor solar lighting

Model NO. YF-EIF-30W

PIR/microwave/Bluetooth/IoT system for optional, Multiple installation methods, energy saving, bluetooth function is optional, individual battery pack, adjustable bracket...

WHERE TO BUY ?
Product Details

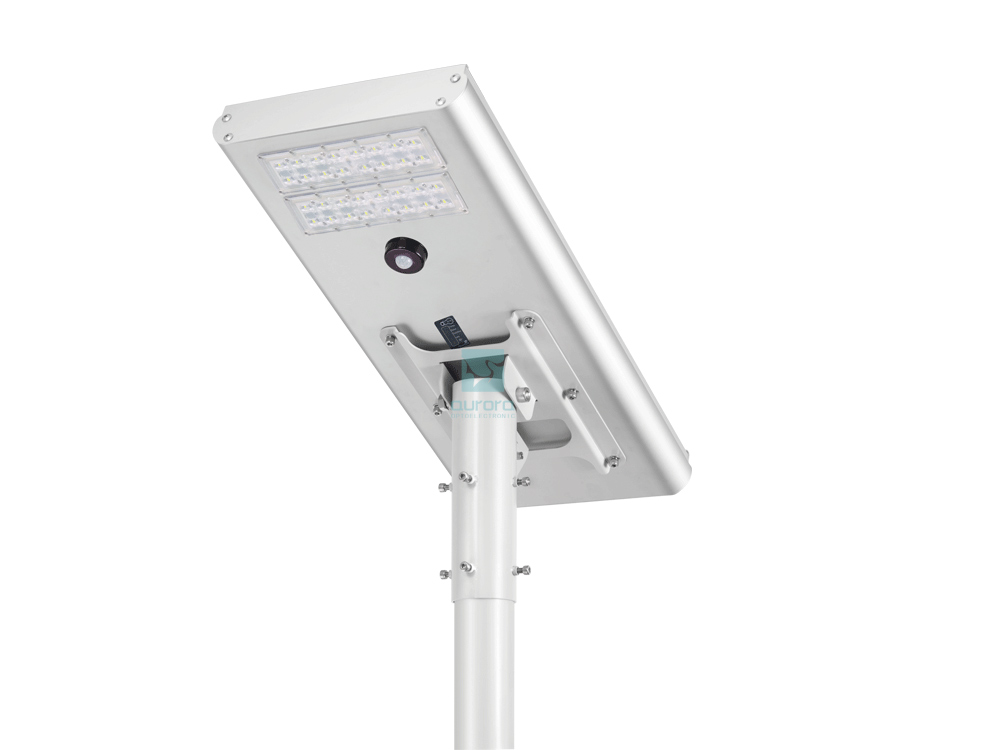

30W integrated solar street lamp outdoor solar lighting

· PIR/microwave/Bluetooth/IoT system for optional,

· Multiple installation methods,

· Energy saving, individual battery pack,

· Adjustable bracket

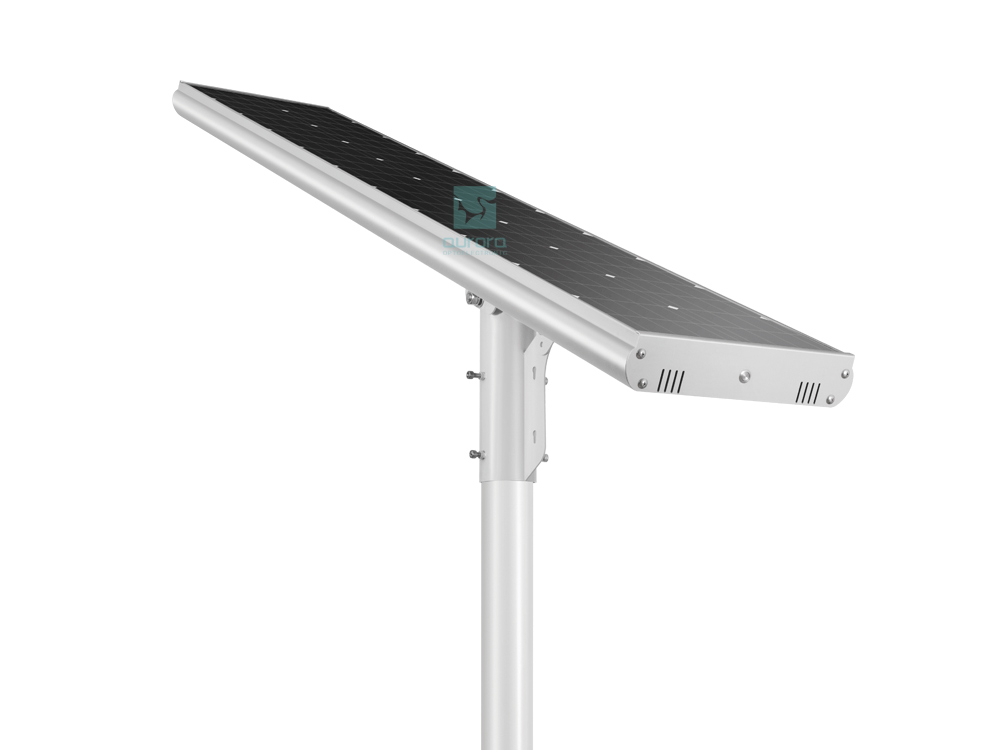

30W integrated solar street lamp outdoor solar lighting

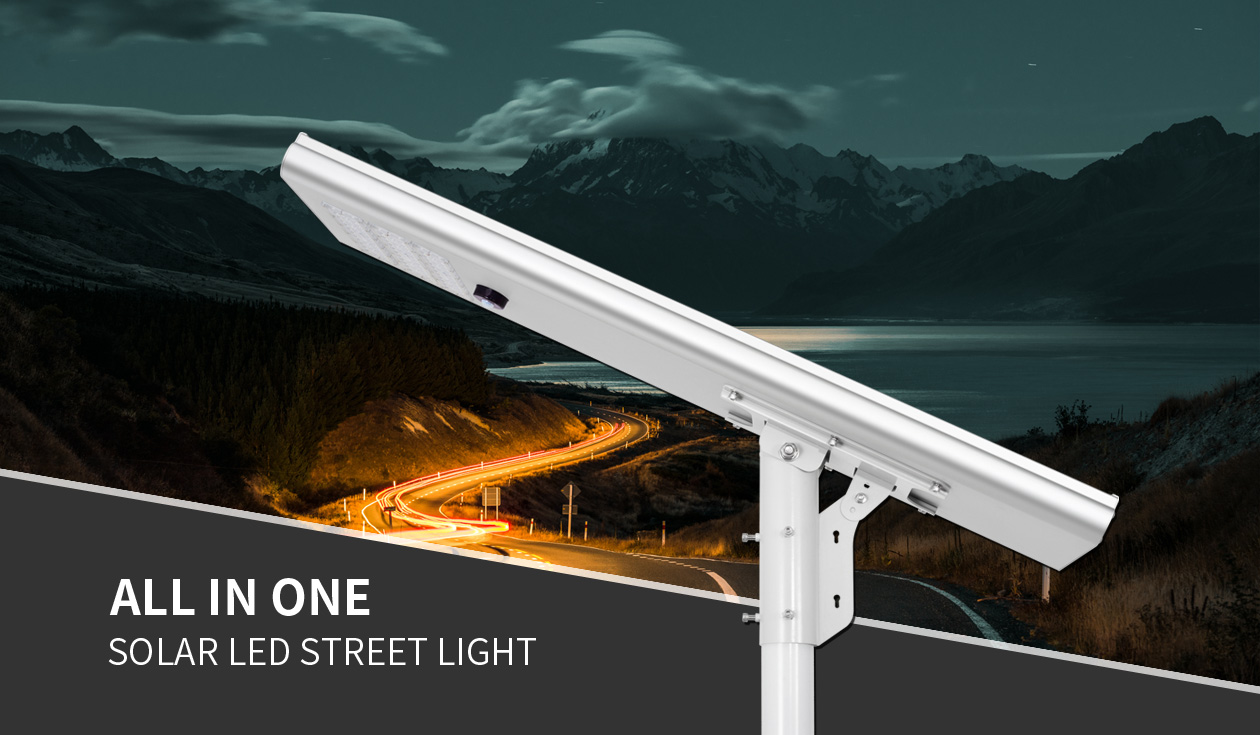

·All in one Integrated solar street light 4-6M pole height


Main Features

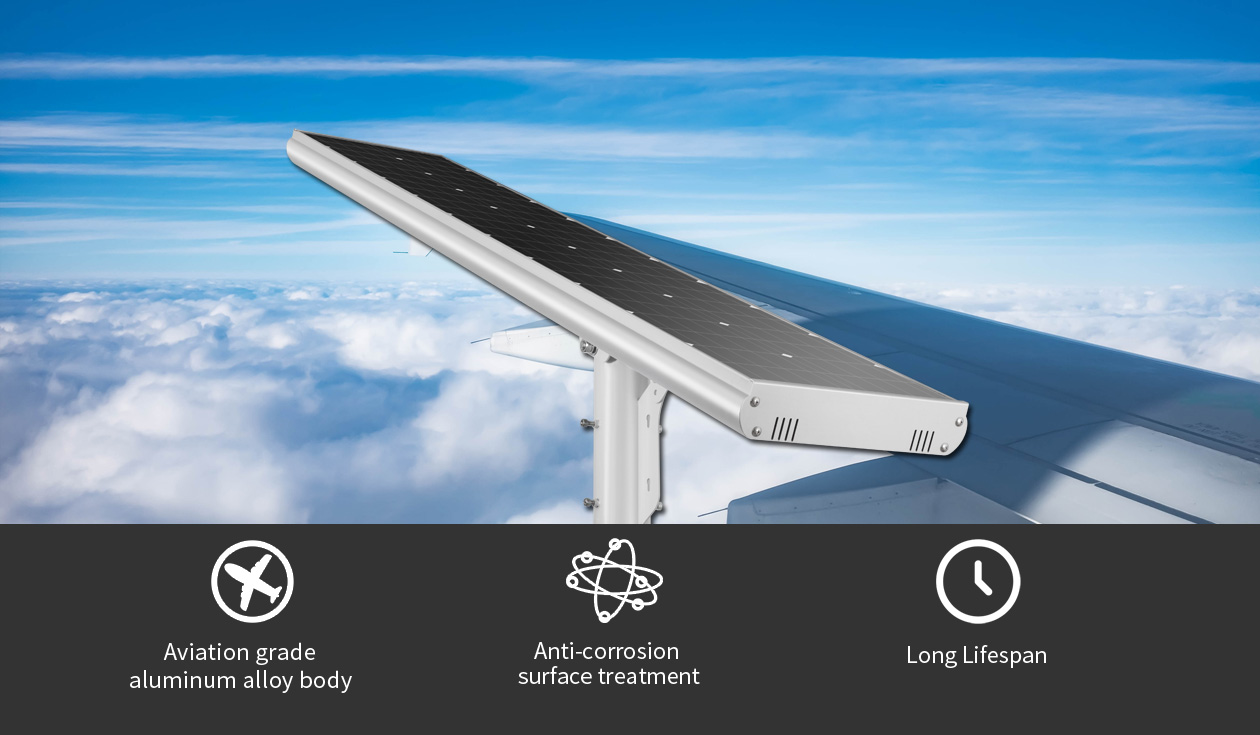

· Streamline and Integrated design by aviation grade aluminum alloy body, anti-corrosion surface treatment for >10years lifespan, patented product.

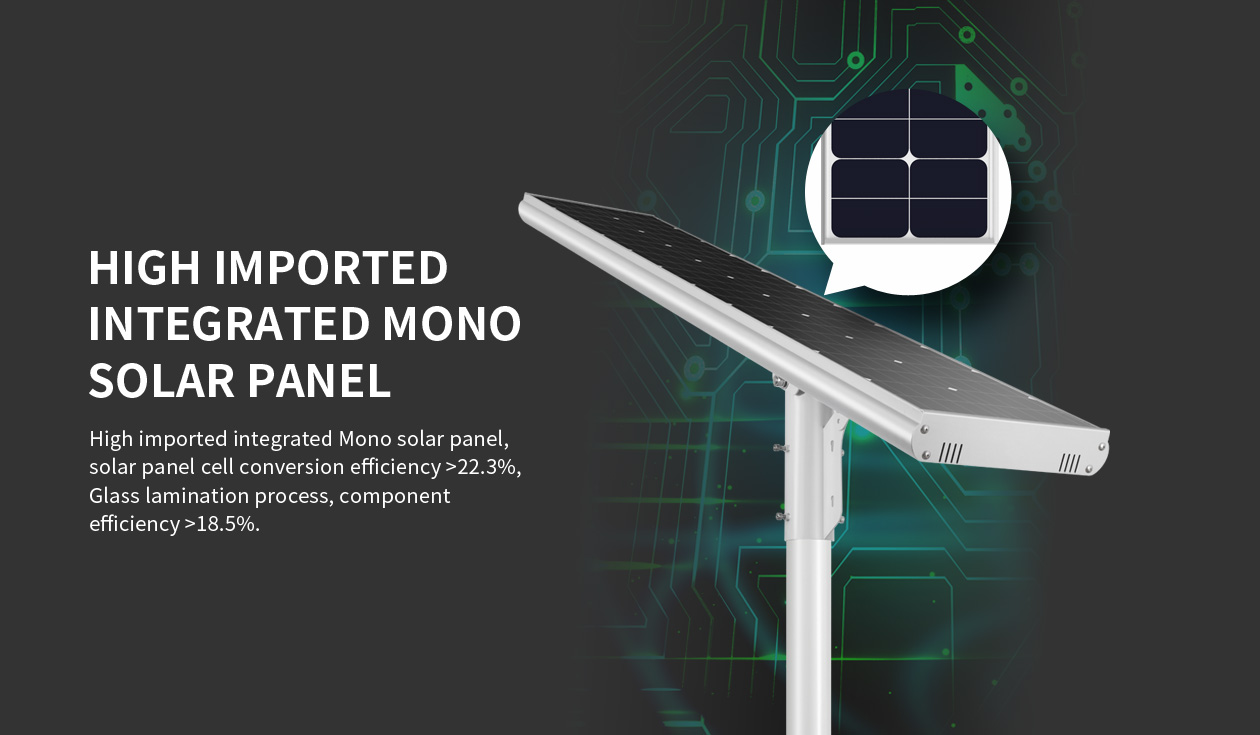

· DIY module structure, simply divided by 3parts, solar panel, led with lamp case and energy pack.

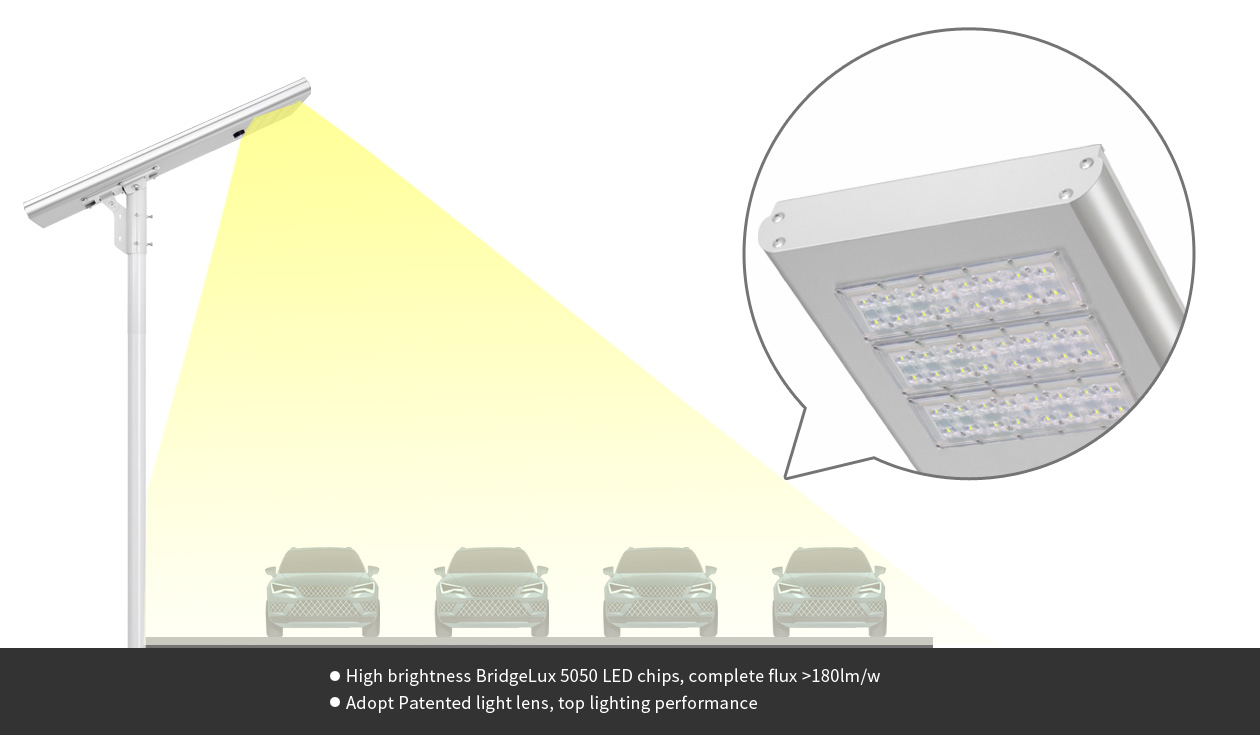

· Amazing lighting effect with high brightness chips. Achieve more than 170lm/w

· Bluetooth function, just use mobile to control the lamp and set working parameter.

· PIR/microwave sensor for optional.

· Internet of things is also optional function, make all lamp work smart and intelligent control

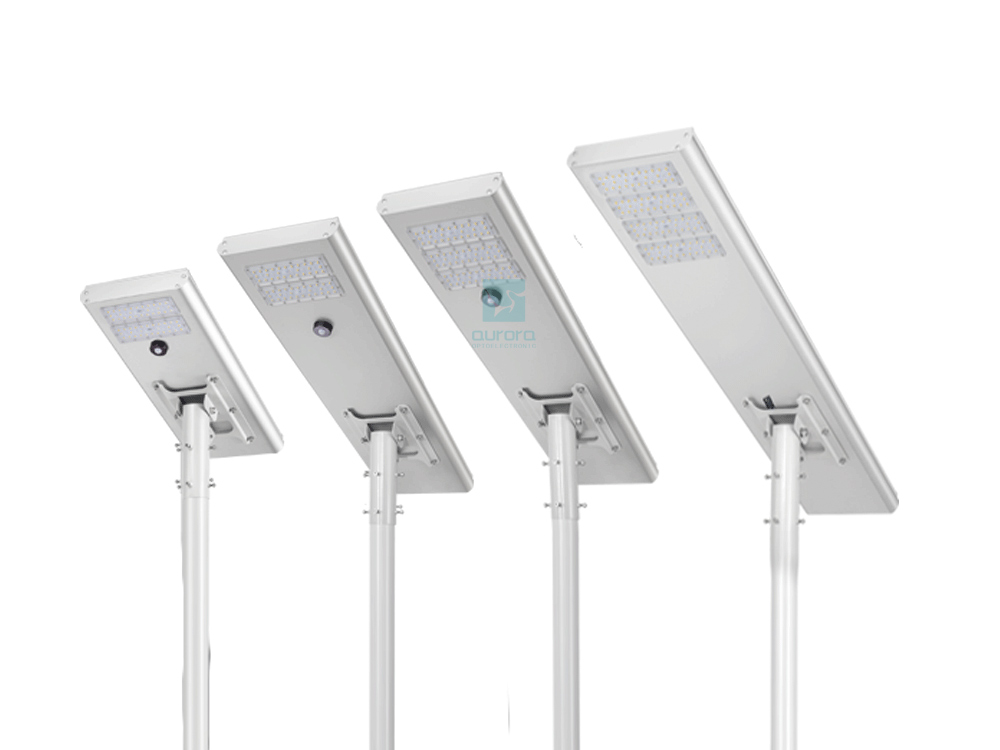

· Range from 2000lm to 12000lm, meet even exceed your expectation,

· Simple and fool proof installation, just put the bracket onto pole and fasten the screws.






Parameter
ModelYF-EIF-30WYF-EIF-40WYF-EIF-50W
LED Street Light Power30W(2 LED Module)50W(2 LED Module)50W(2 LED Module)
PV Model50W70W90W
Light Efficiency150lm/w150lm/w150lm/w
LED Chip5050 LED BridgeLux3030 LED SANAN3030 LED SANAN
Light Distribution TypeType IIType IIType II
Viewing Angle70°*140°70°*140°70°*140°
CRI>80>80>80
Lifetime>10 years>10 years>10 years
Battery TapeLiFePO4 BatteryLiFePO4 BatteryLiFePO4 Battery
Battery Capacity268WH384WH422WH
Battery life time(5-8 years)(5-8 years)(5-8 years)
MPPT Change Controllerincluding wireless communication moduleIncluding Wireless Communucation ModuleIncluding Wireless Communucation Module
Timing ModeWith motion sensorWith motion sensorWith motion sensor
Life Time8years8years8years
Charging Time(STC)6-8 Hours(With STC)6-8 Hours(With STC)6-8 Hours(With STC)
CertificateCE、ROSH、IP65CE、ROSH、IP65CE、ROSH、IP65
Storage Temperature0℃~45℃0℃~45℃0℃~45℃
Protection GradeIP65IP65IP65
Dimension Size(mm)L830*W358*H98.8mmL1010*W358*H98.8mmL1310*W358*H98.8mm
Installation Height

4M to 6M light pole

4M to 6M light pole4M to 6M light pole
Installation Diameter≤80mm≤80mm≤80mm
Distance of Installation15m to 20m20m to 25m20m to 25m
Warranry3years3years3years

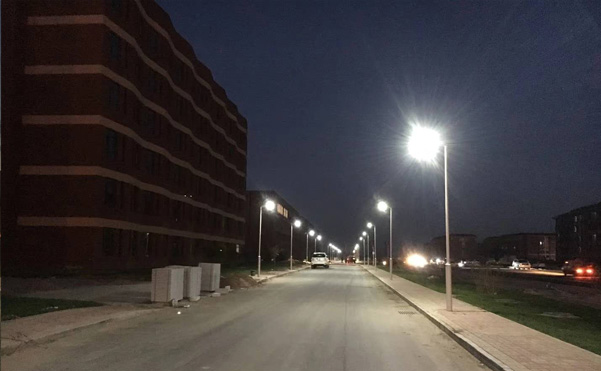

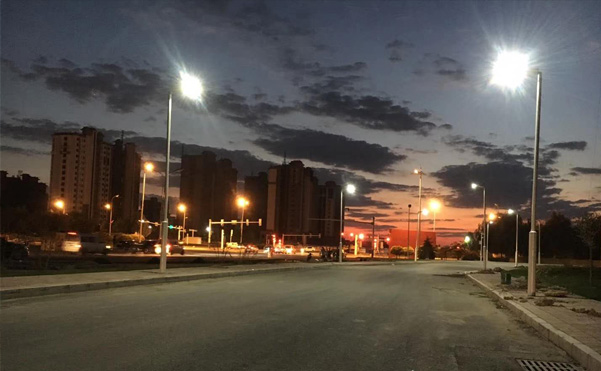

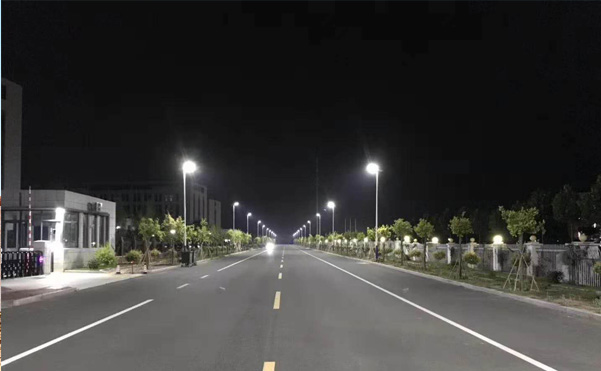

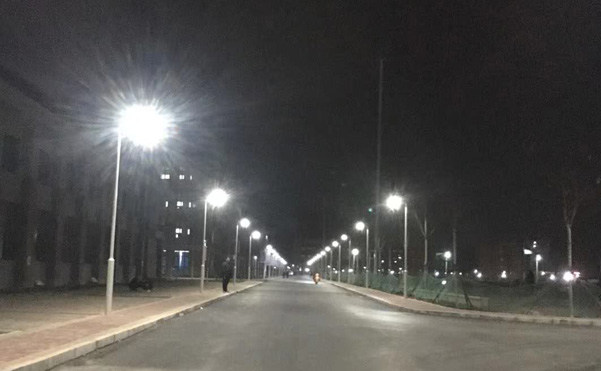

Application
