All in two solar street light, thermostat control technology for LiFePO4 battery safety, Eco-energy lighting system, 180lm/w, Patented spaceship alloy aluminum body design...
INQUIRY NOW40W all in two solar street light with built-in battery
· PIR/microwave/Bluetooth/IoT system for optional,
· Thermostat control technology for LiFePO4 battery safety,
· Eco-energy lighting system, sustain 365 days without any turn off
· Patented spaceship alloy aluminum body design
40W all in two solar street light with built-in battery
· All in two LED solar street lights

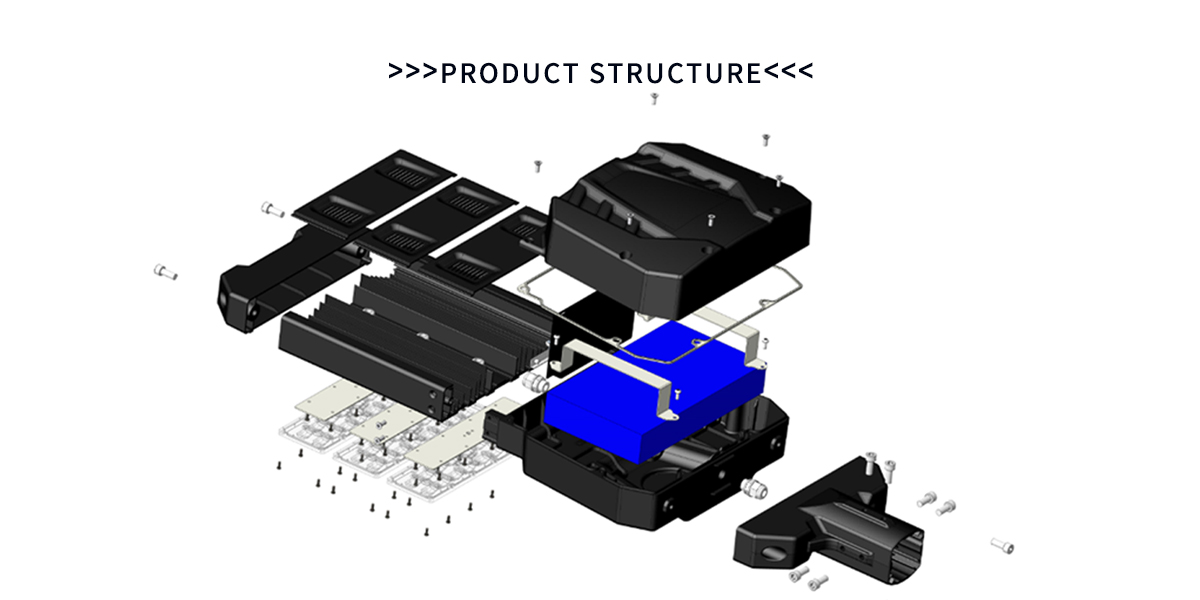

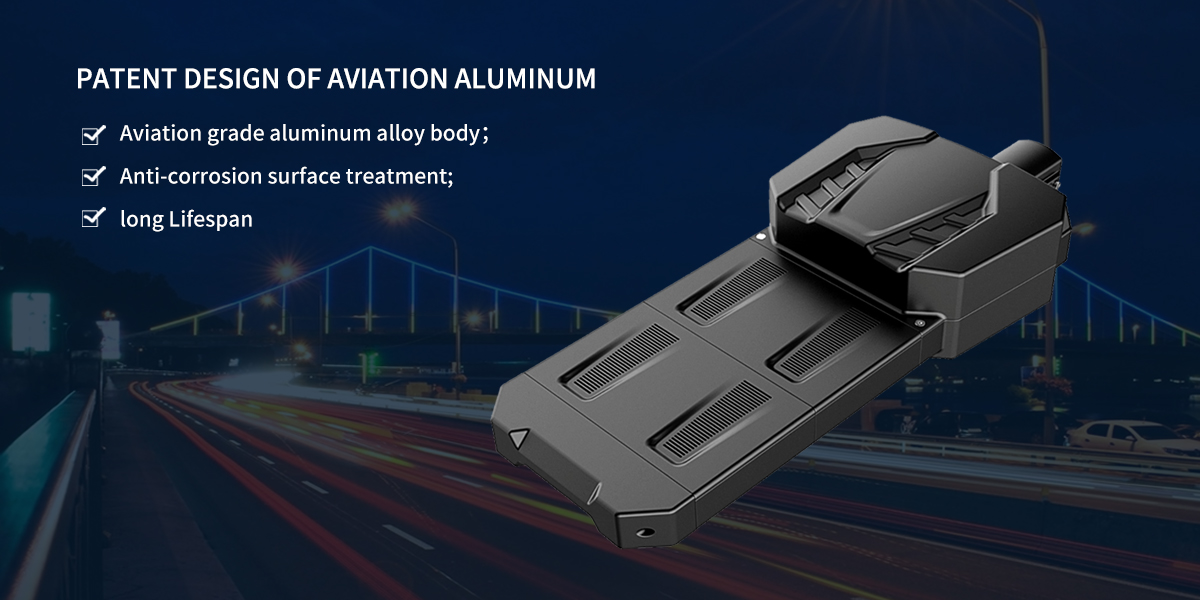

· Patented spaceship alloy aluminum body design, mix and match into different size and capacity
· Energy pack and system build-in the lamp body, reserve good features of conventional solar street light, also very easy to install and maintain.
· Super high lumens output, target to replace tradition grid power lighting.

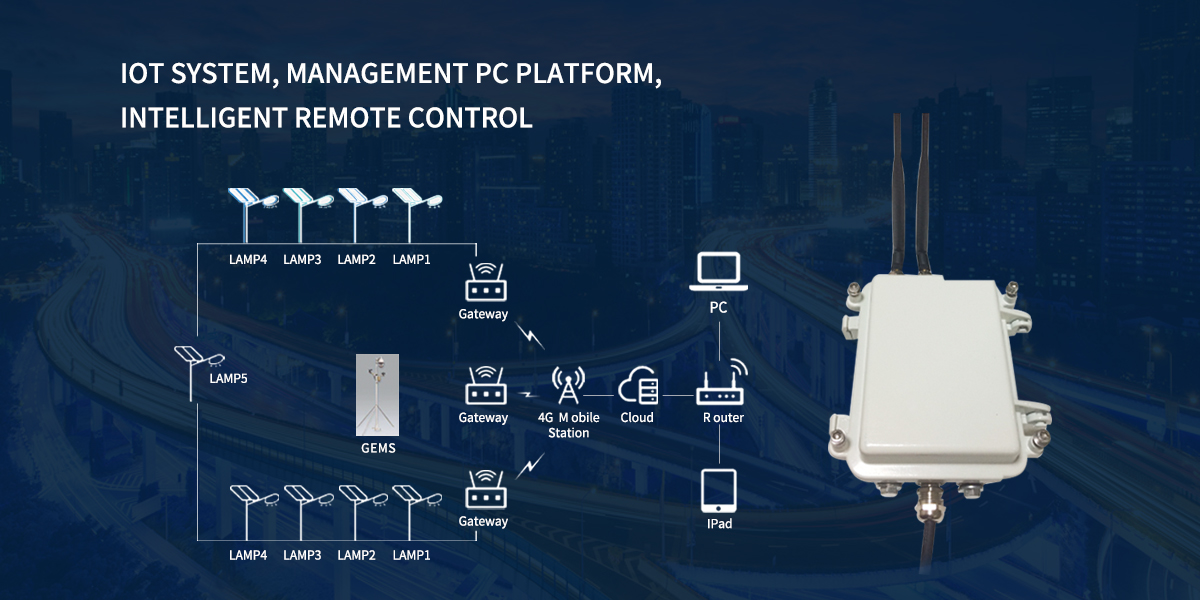

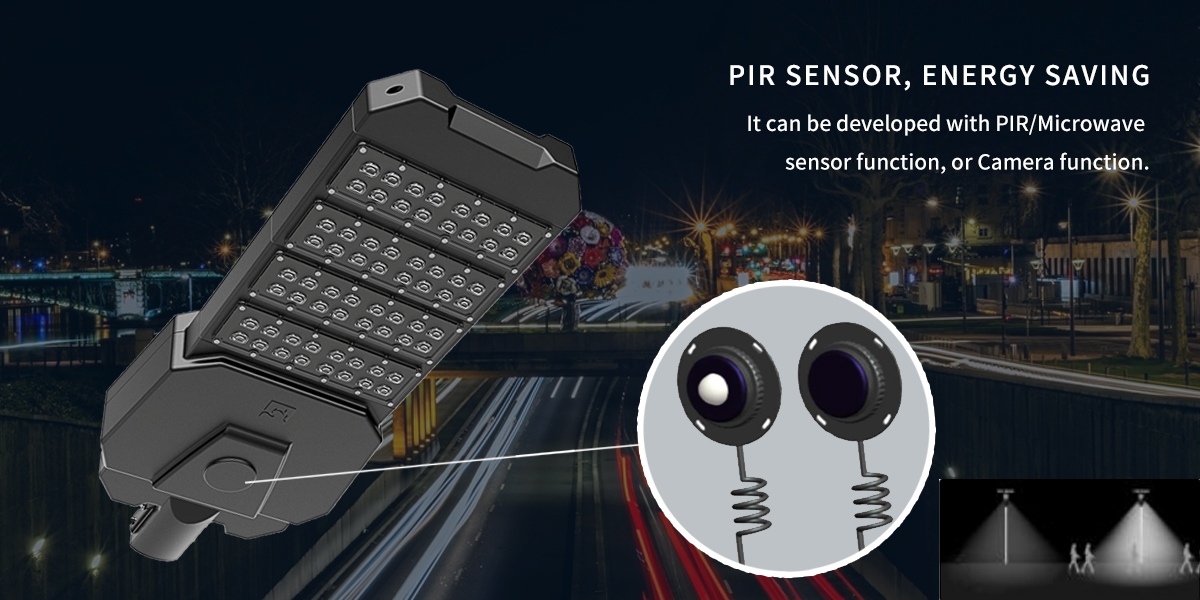

· PIR/microwave/Bluetooth/IoT system for optional

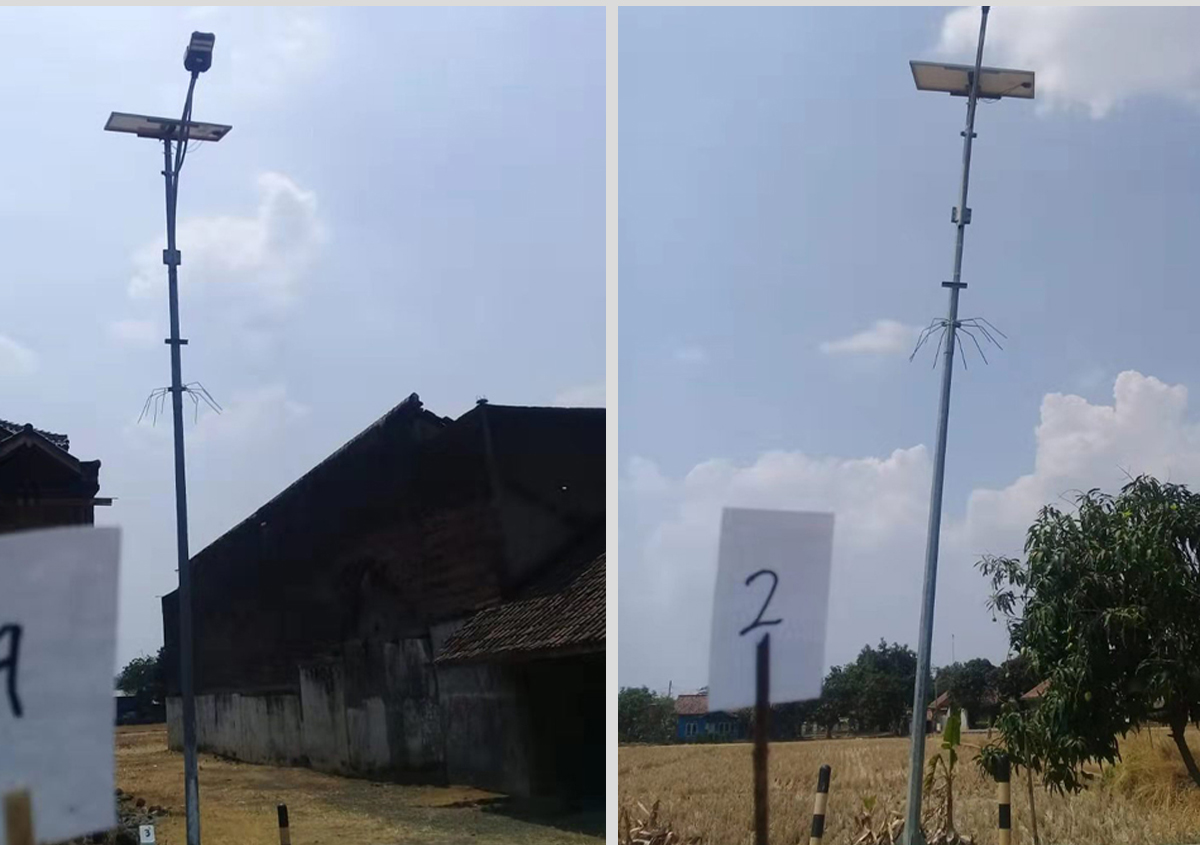

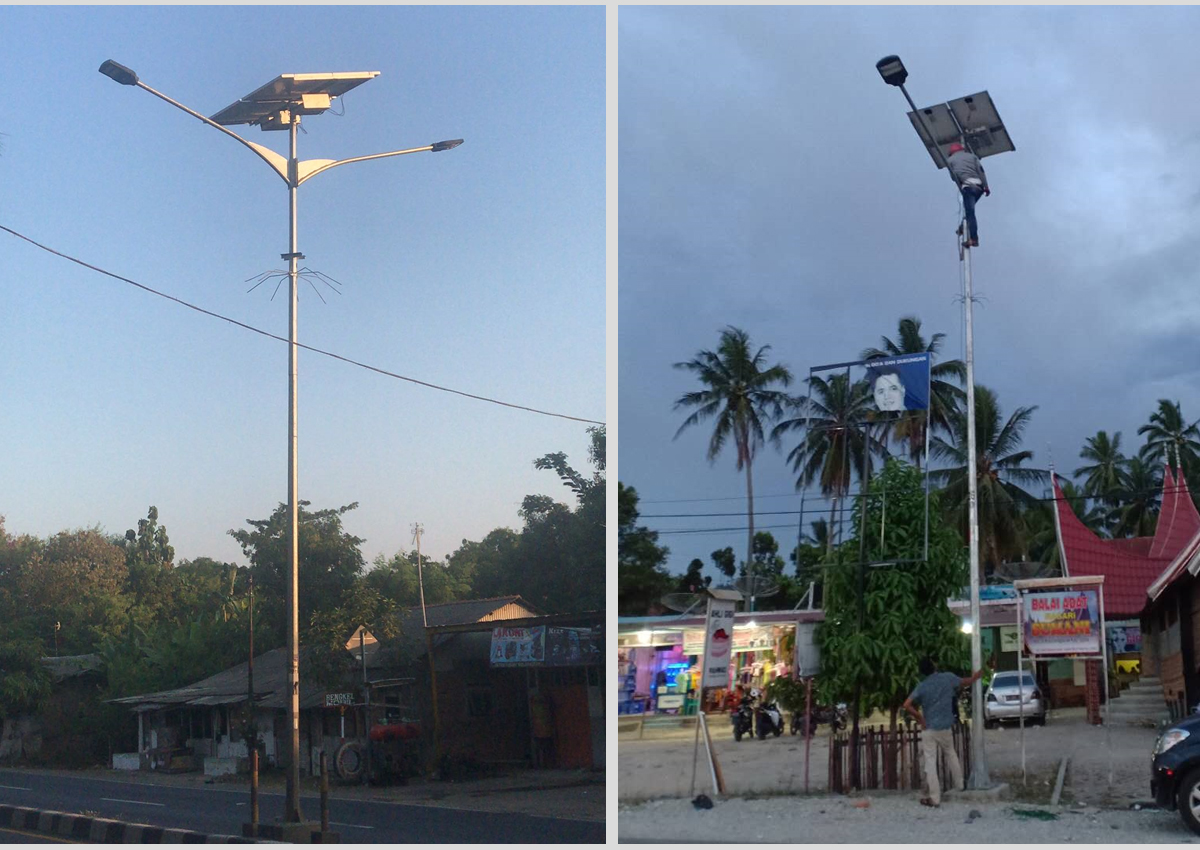

· Perfect solution for main road, high way lighting project.
Model | YF-SLX-40W-2 | YF-SLX-60W-2 | YF-SLX-80W-2 |
LED Street Light Power | 40W(2 LED Modules) | 60W(3 LED Modules) | 80W(4 LED Modules) |

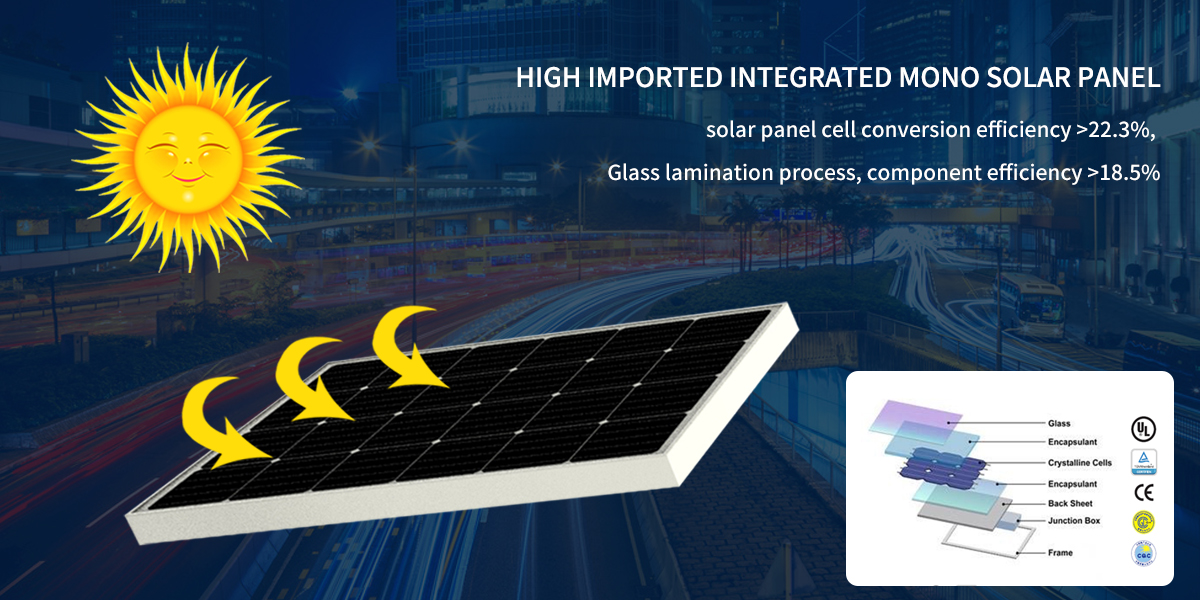

PV Model | 120w | 160w | 120w*2pcs |
Life time | 25 years ( The power attenuation of each year is around 1%) | 25 years ( The power attenuation of each year is around 1%) | 25 years ( The power attenuation of each year is around 1%) |
Light Efficiency | 180lm/w | 180lm/w | 100lm/w |

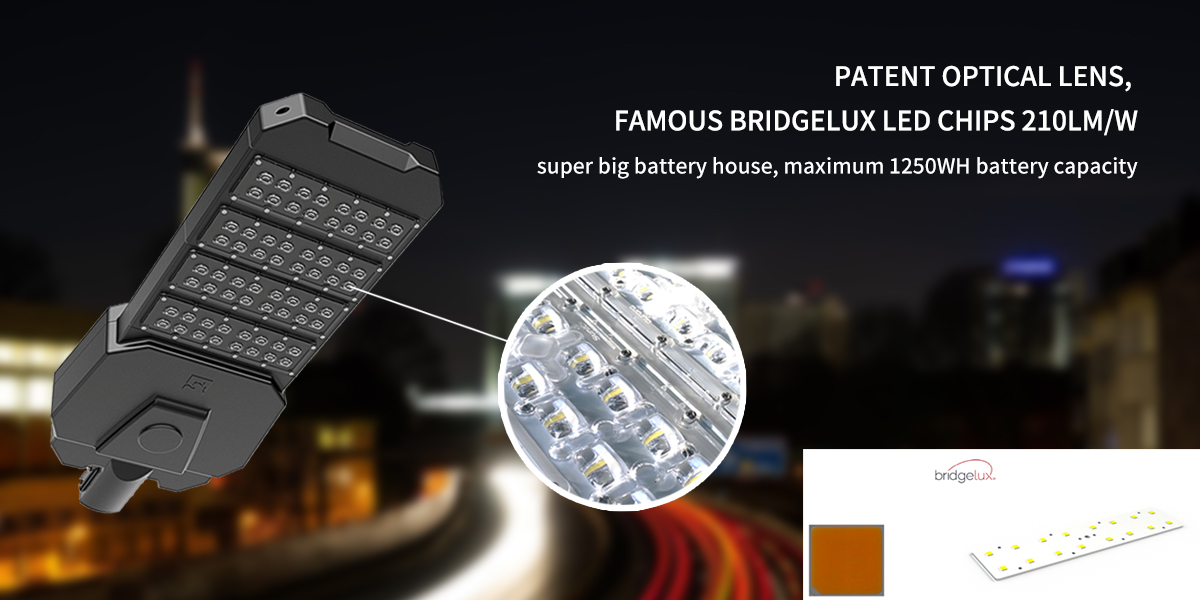

LED Chip | 5050 LED BridgeLux | 5050 LED BridgeLux | 5050 LED BridgeLux |
Light Distribution Type | Type II | Type II | Type II |
Viewing Angle | 70°*140° | 70°*140° | 70°*140° |
CRI | >80 | >80 | >80 |
Lifetime | >10 years | >10 years | >10 years |
Battery Tape | LiFePO4 Battery | LiFePO4 Battery | LiFePO4 Battery |
Battery Capacity | 460WH | 640WH | 896WH |
Battery life time | (5-8 years) | (5-8 years) | (5-8 years) |
MPPT Change Controller | Including Wireless Communucation Module | Including Wireless Communucation Module | Including Wireless Communucation Module |
Working model | Time dimming | Time dimming | Time dimming |
Circuit Protection | Overcharge,Discharge,short circuit,open load,lightning protection and other functions | Overcharge,Discharge,short circuit,open load,lightning protection and other functions | Overcharge,Discharge,short circuit,open load,lightning protection and other functions |
Life Time | 8years | 8years | 8years |
Charging Time(STC) | 6-8 Hours(With STC) | 6-8 Hours(With STC) | 6-8 Hours(With STC) |
Certificate | CE、ROSH、IP65 | CE、ROSH、IP65 | CE、ROSH、IP65 |
Storage Temperature | -20℃~+60℃(When the temperature is below -10℃,derating use ) | -20℃~+60℃(When the temperature is below -10℃,derating use ) | -20℃~+60℃(When the temperature is below -10℃,derating use ) |

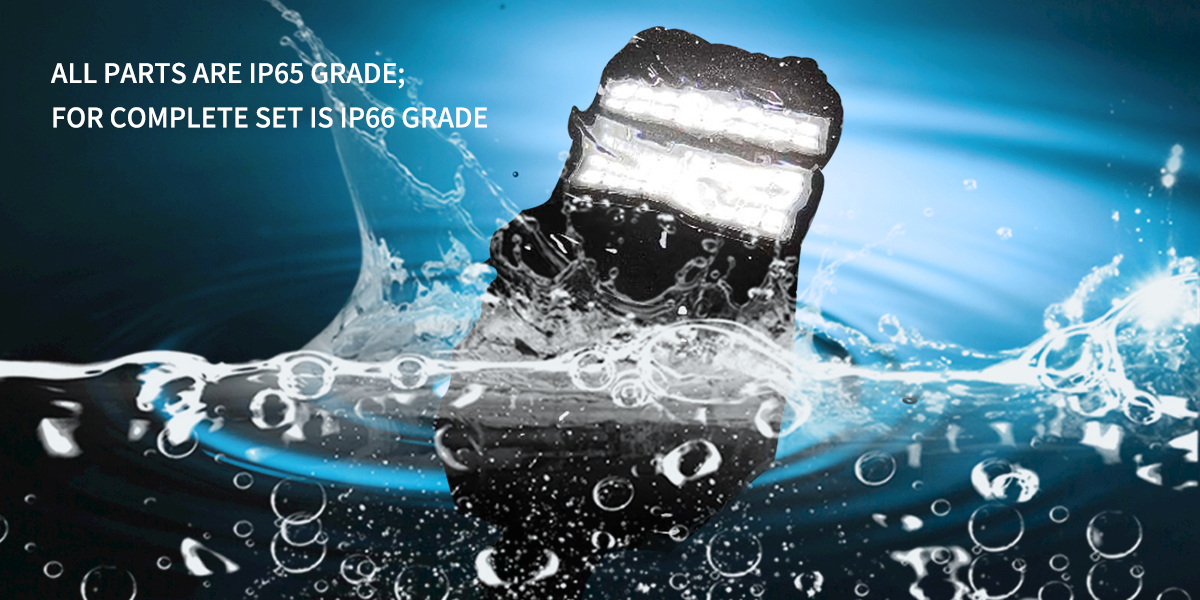

Protection Grade | IP65 | IP65 | IP65 |
Dimension Size(mm) | L672*W320*H170mm | L757*W320*H170mm | L842*W320*H170mm |
Installation Height | 4M to 6M light pole | 4M to 6M light pole | 4M to 6M light pole |
Installation Diameter | ≤80mm | ≤80mm | ≤80mm |
Warranry | 3years | 3years | 3years |
