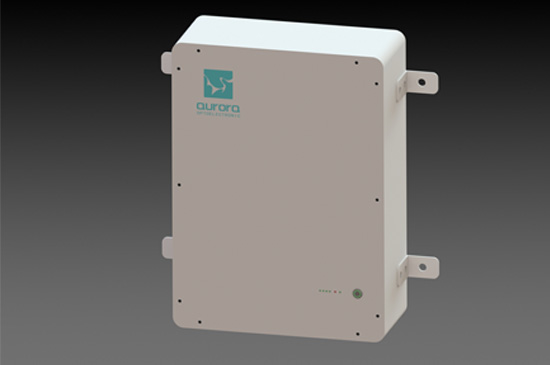

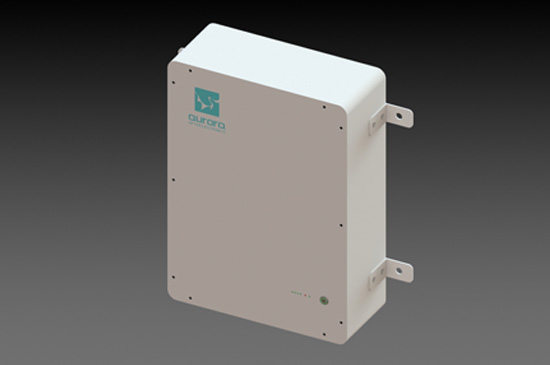

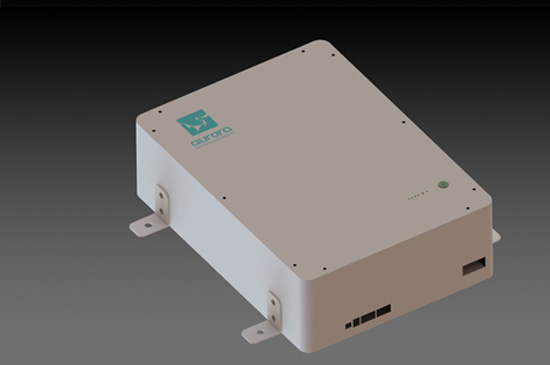

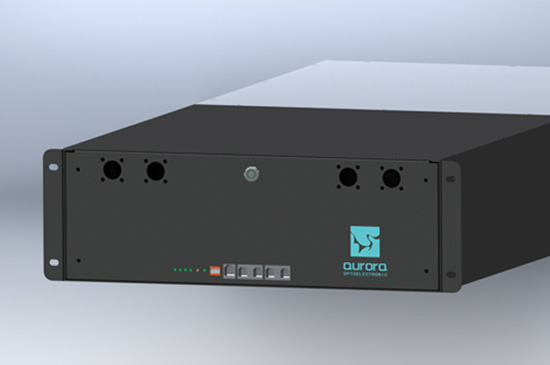

5KWH home solar light kit lithium battery pack for off grid system

Model NO. YF-LFP-5KWH

lithium battery pack, use for solar off grid home system

INQUIRY NOW
Main Features


Safe and Long life cycle, the cell belongs to lithium iron phosphate power cell which can be recycled more than 5000 times.

Intelligent BMS, intelligent battery protection system make the battery more stable and safer.

Comprehensive compatibility, It is better suited for off-grid inverters and hybrid inverters.

Parameter
Model YF-LFP-5KWH
Capacity5KWH
Voltage48V
Normal voltage51.2V
Normal voltage range44.8-57.6V
Charge cut-off voltage57.6V
Discharge cut-off voltage44.8V (Recommend discharge cut-off voltage = 46V)
Max. Charge & discharge current100A
Recommend Charge & discharge current80A
Max Output power5000Wh
Discharge DOD95%
Communication PortRS485/CAN
Communication ModeWIFI / BLUETOOTH
Ingress protectionIP20
Cycle times>5000 @25℃
Working temperatureDischarge:-20~45℃ Charge:0~45℃
Warranty8 years
Battery Cell MaterialLithium (LiFePO4)
CertificationCE, IEC62619(Cell&Pack),UL1973,CEC,UN38.3
Net weight49kg
Gross weight51kg
Product dimension393*540*161mm?
Package dimension423*560*181mm?


Product Details
Application
