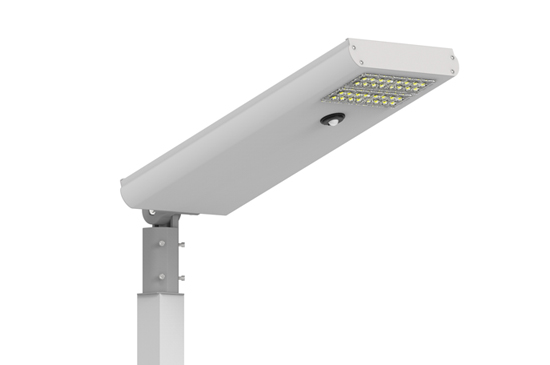

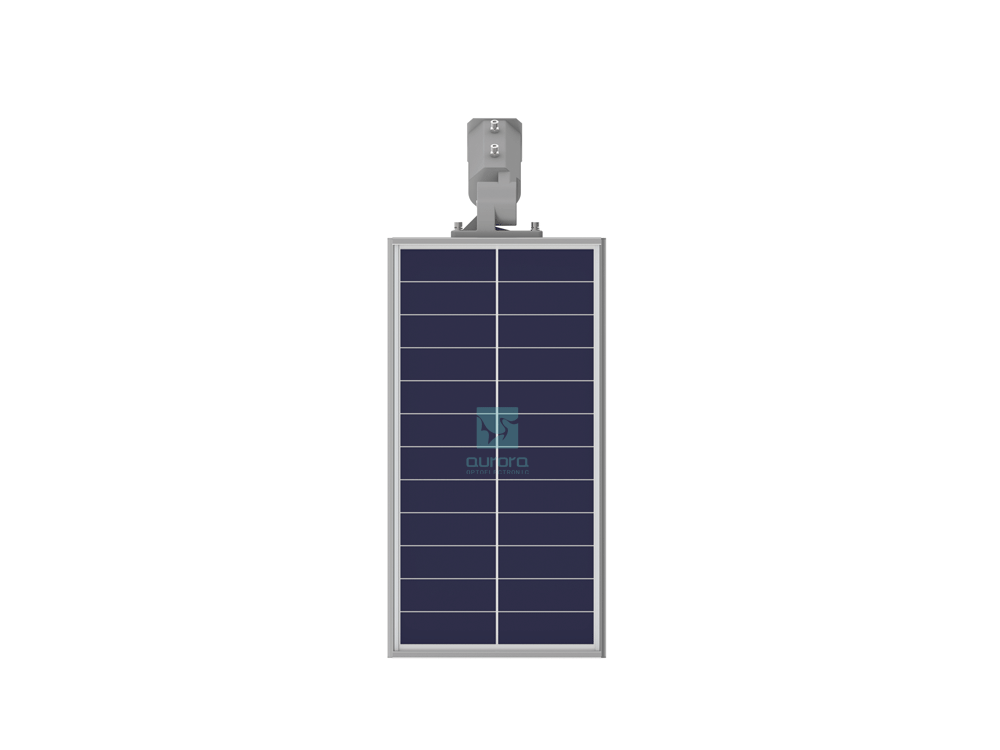

solar street light manufacturer 40w 50w solar led path lights solar powered outside light

Model NO. YF-EIM-40W

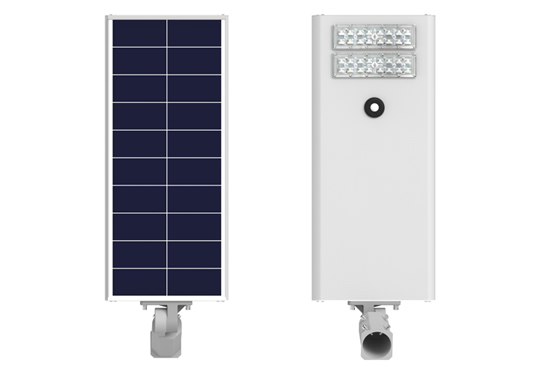

Bluetooth function, all in one integrated design, economic product, adjustable bracket...

INQUIRY NOW
Main Features

10 years of industry experience

solar street light manufacturer 40w 50w solar led path lights solar powered outside light

· 365days light on, work automatically

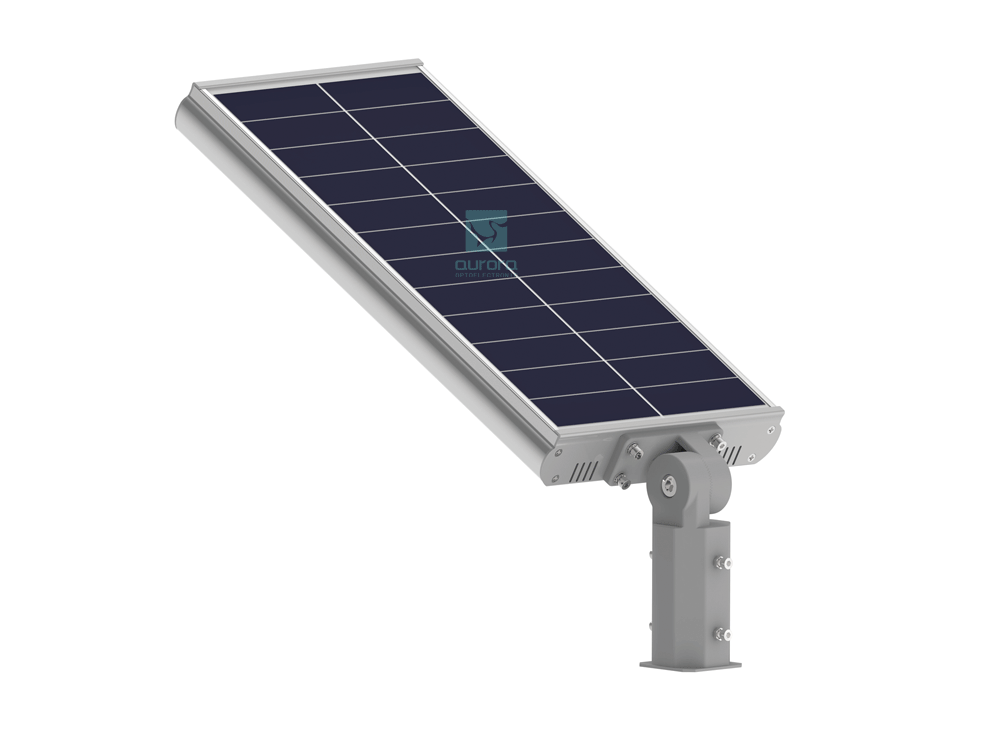

· Adjustable bracket, adjust the solar panel angle, absorb the highest sunlight;

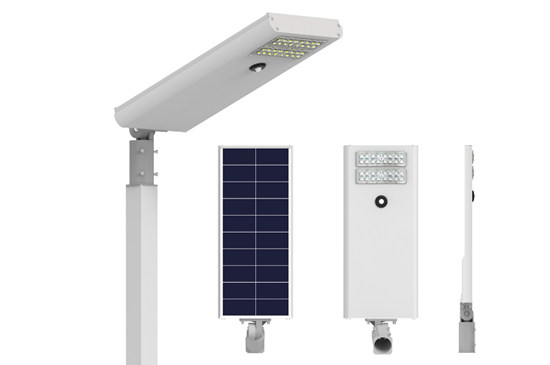

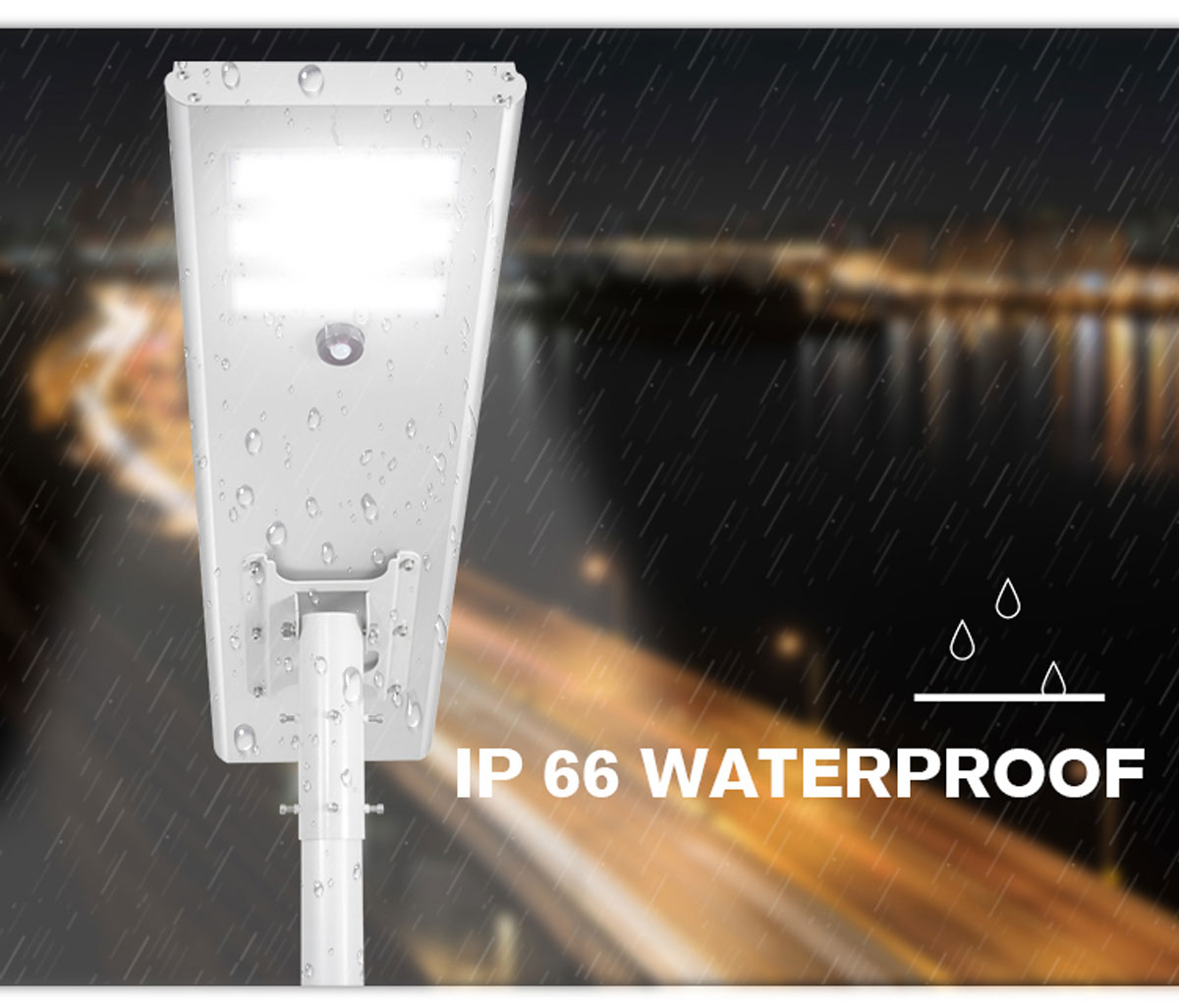

· All in one integrated design, IP65

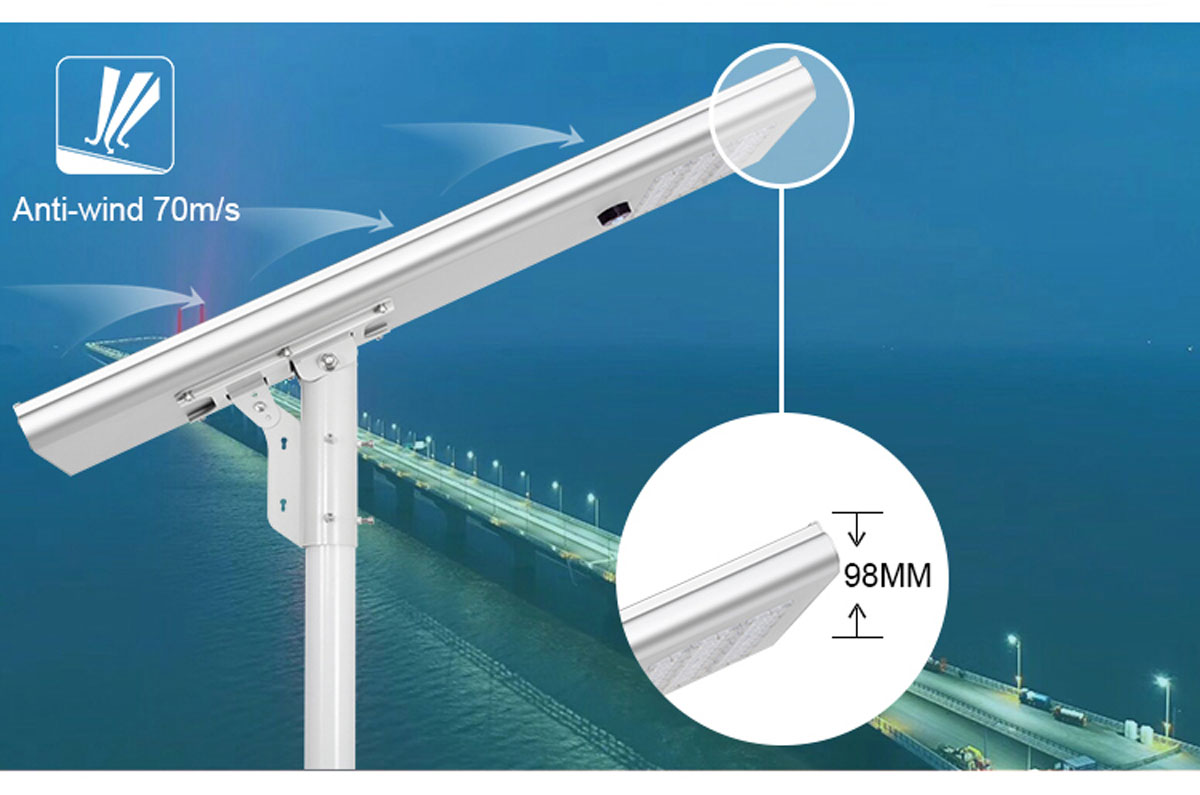

· Streamline and Integrated design by aviation grade aluminum alloy body, anti-corrosion surface treatment for >10years lifespan, patented product.

· 365days light on, work automatically

· Amazing lighting effect with high brightness chips.

· Simple and fool proof installation, just put the bracket onto pole and fasten the screws.


Parameter
ModelYF-ELM-20WYF-ELM-30WYF-ELM-40W
LED Street Light Power20W30W40W/50w

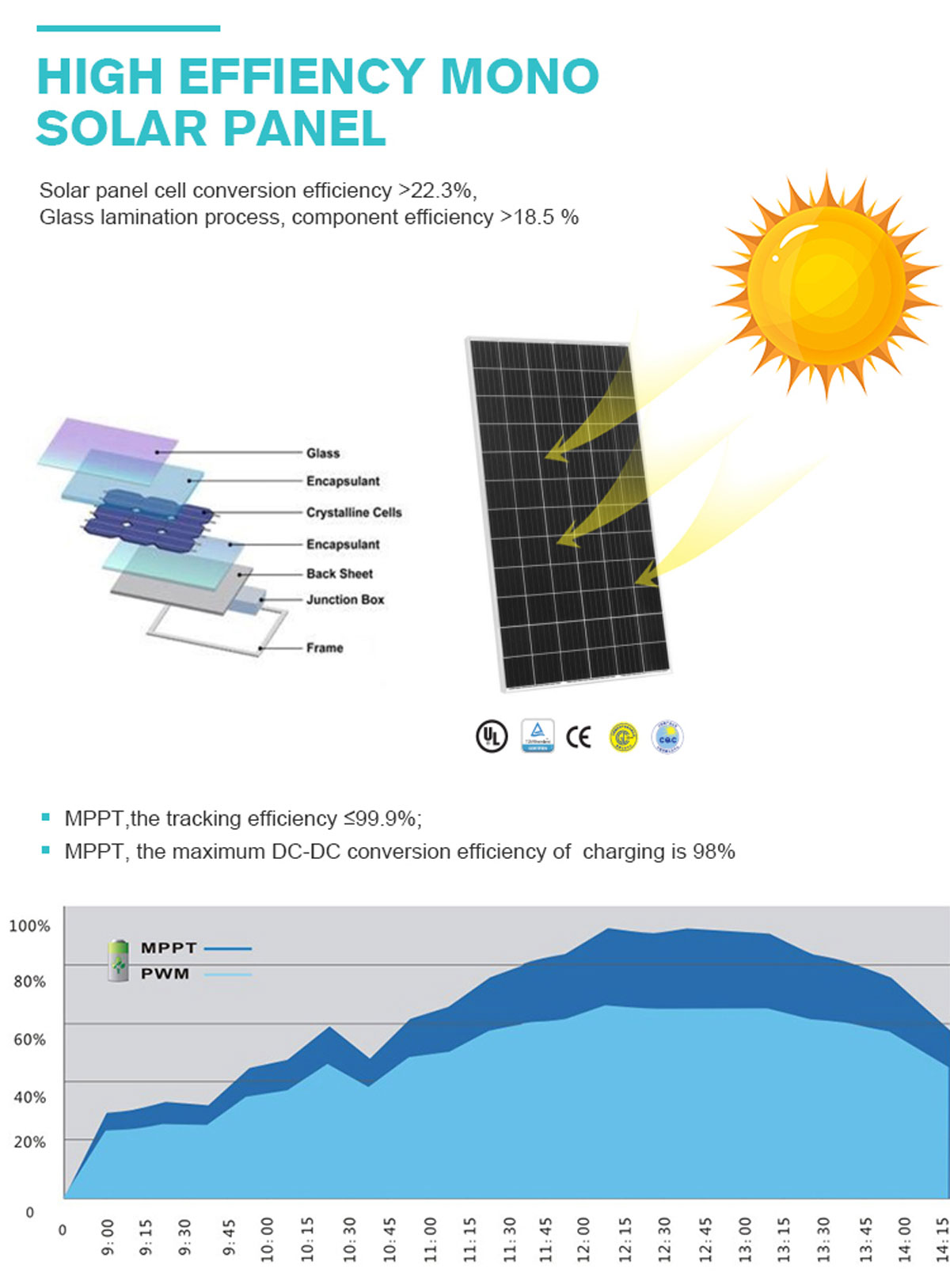

PV Model30W40w50w
Light Efficiency100lm/w100lm/w100lm/w

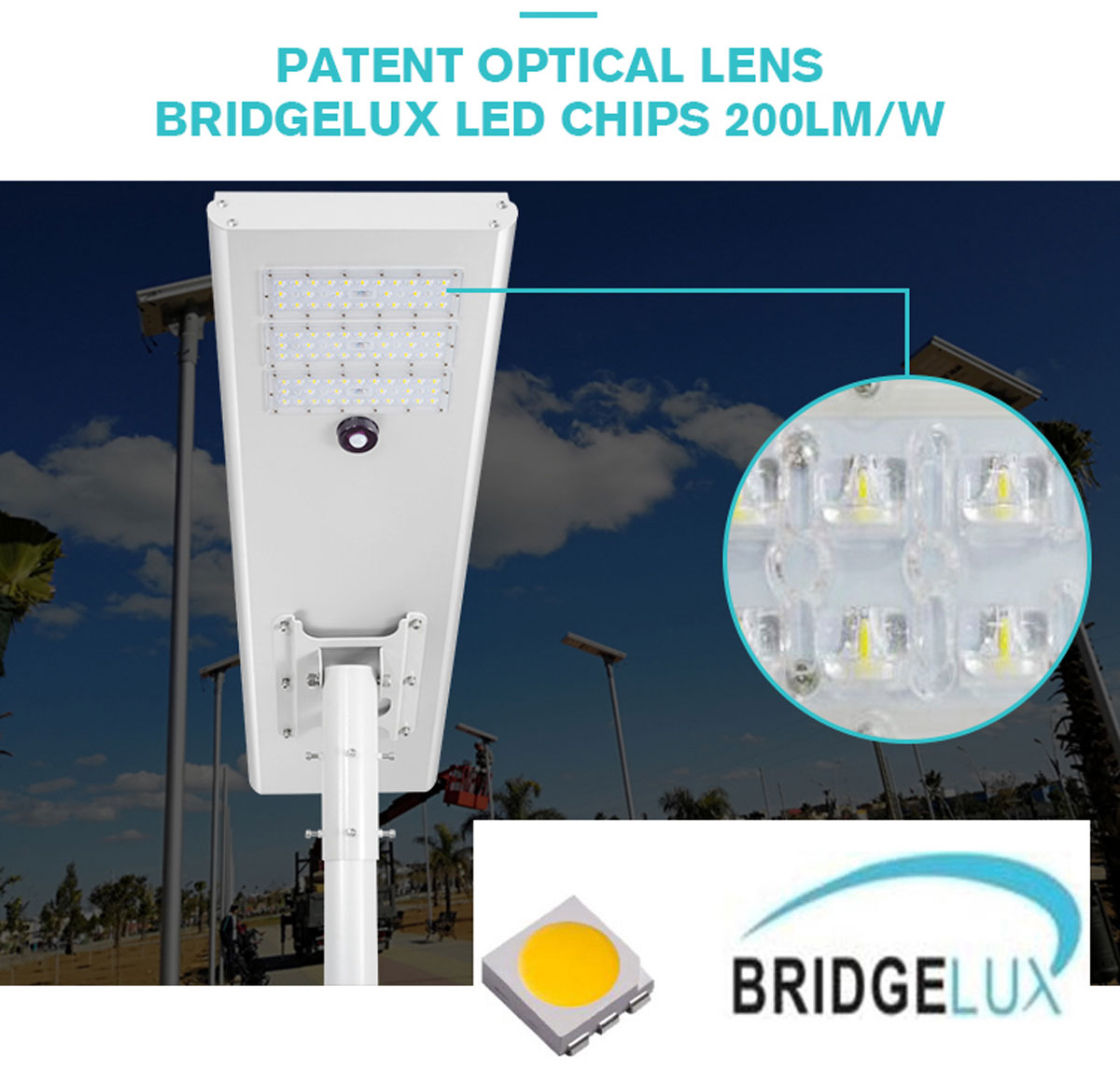

LED ChipBridgeLux SMD5050BridgeLux SMD5050BridgeLux SMD5050
Light Distribution TypeType IIType IIType II
Viewing Angle140 x  70°140 x  70°140 x  70°
CRI>70>70>70
Lifetime>10 years>10 years>10 years
Battery TapeLiFePO4 BatteryLiFePO4 BatteryLiFePO4 Battery
Battery Capacity160WH192WH230WH
Battery life time(5-8 years)(5-8 years)(5-8 years)

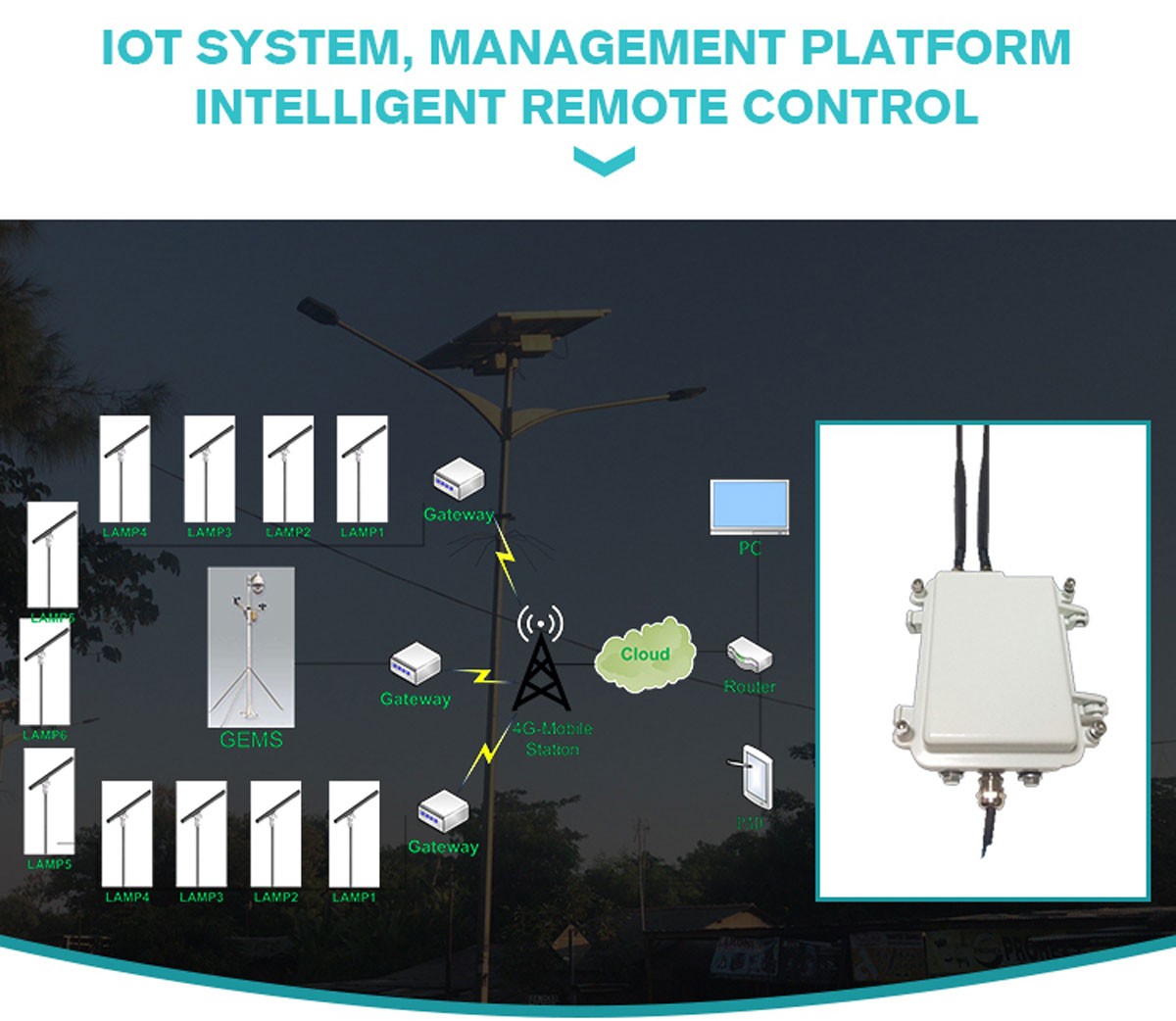

MPPT Change ControllerIncluding Wireless Communucation ModuleIncluding Wireless Communucation ModuleIncluding Wireless Communucation Module
Timing ModeInterllingent ControlInterllingent ControlInterllingent Control
Bluetooth FunctionYESYESYES
Circuit ProtectionOvercharge,Discharge,short circuit,open load,lightning protection and other functionsOvercharge,Discharge,short circuit,open load,lightning protection and other functionsOvercharge,Discharge,short circuit,open load,lightning protection and other functions
Life Time8years8years8years
Charging Time(STC)6-8 Hours(With STC)6-8 Hours(With STC)6-8 Hours(With STC)
CertificateCE、ROSH、IP65CE、ROSH、IP65CE、ROSH、IP65
Storage Temperature0℃~45℃0℃~45℃0℃~45℃
Protection GradeIP65IP65IP65

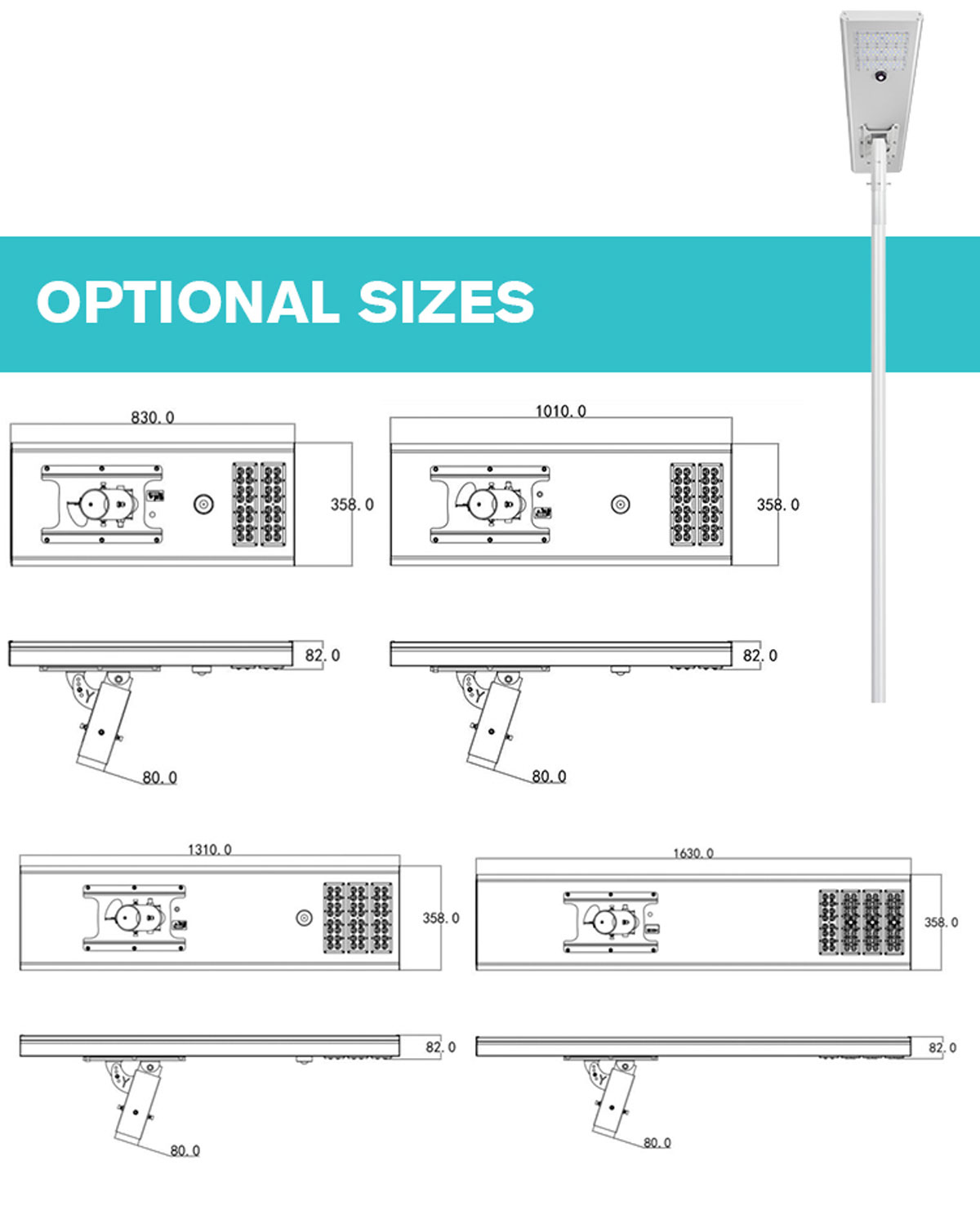

Dimension Size(mm)585*358*72.5mm685*358*72.5mm830*358*72.5mm
Installation Height

4M to 6M light pole

4M to 7M light pole5M to 8M light pole
Installation Diameter≤60mm≤60mm≤60mm
Warranry3years3years3years


Product Details

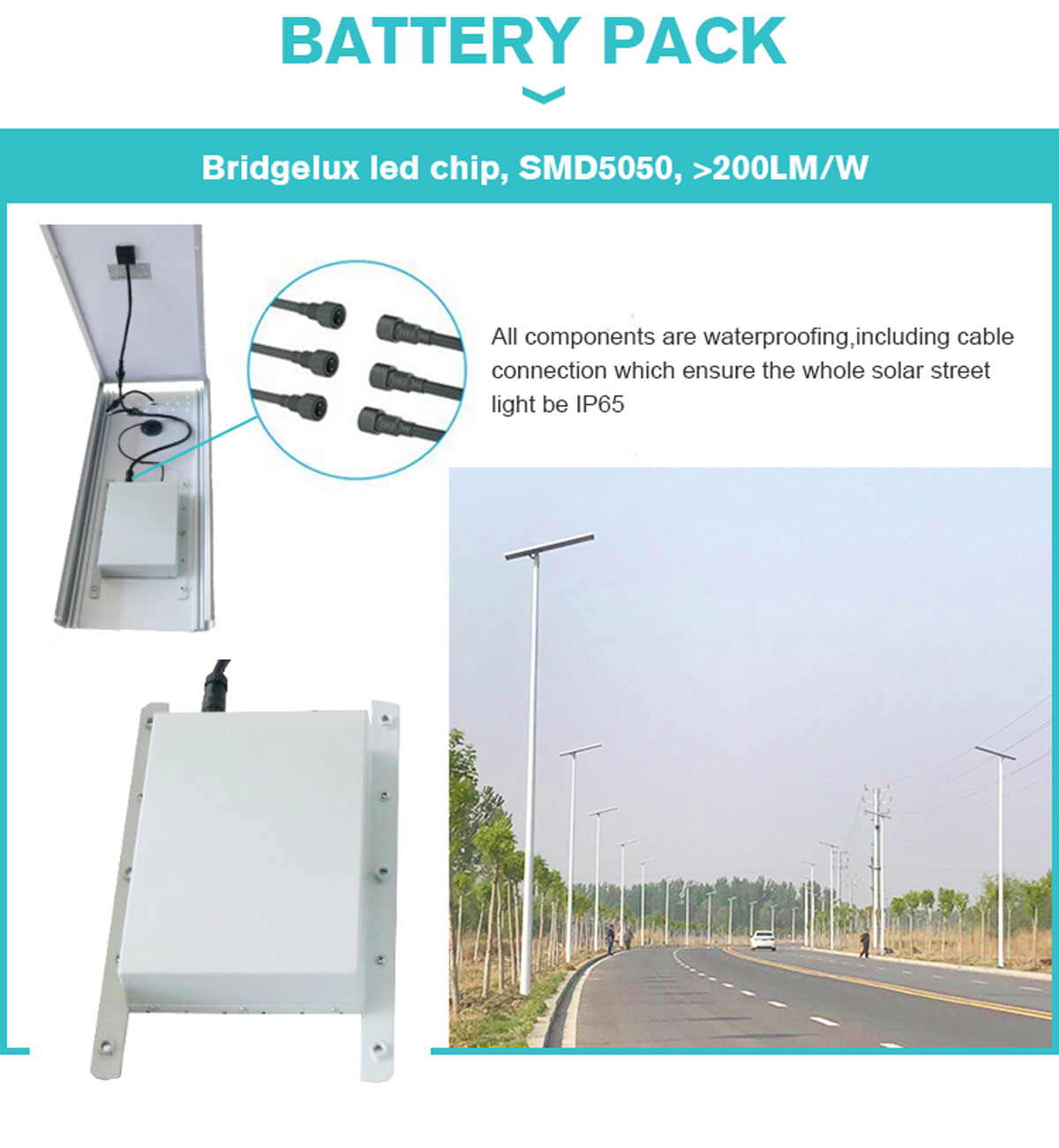

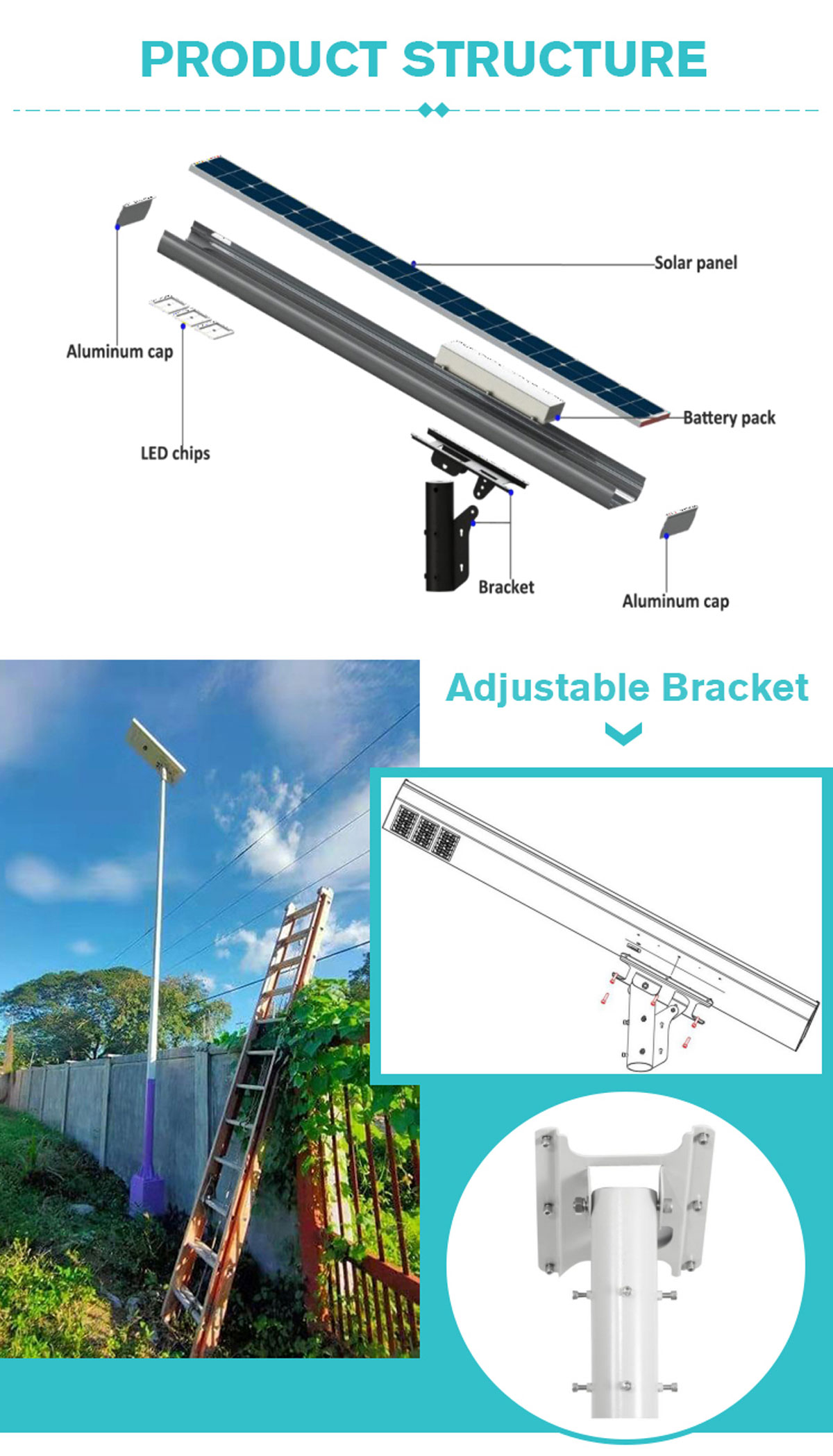

solar street light companysolar light for roadintegrated solar lightstreet light supplierssolar off grid systemoff grid power systemsoff grid electrical systemsSolar street light accessoriesSolar street light structureSolar street lamp street installation scene diagramour companyOur honorOur exhibitionOur transportation service

FAQ:

Q: how about your company history?
A: our company original start from 2005 to supply components and accessory for led lighting company, then move to & only focus solar street lighting production since 2010, we have 10 years of solid business experience.



Q: What is your main product?
A: we used to manufacture various type of led outdoor light, but now we just focus on solar lighting, grid power light and some off-grid home system.



Q: What is your business service?
A: all our product is self-developed patent product, we also provide ODM/OEM service, semi knock down to help customer lower the tariff and fulfill local content.



Q: What is your core competence & flexibility?
A: we have stronger and experienced R & D, quality control, production and international sales team. Offer quick response and action to customer inquiry or characteristic requirement. Our product is module design, there is great flexibility to extend the specification to meet customer expectation.





Q: are your manufacturer? how about your production capacity and delivery lead time?

A: yes, we have more than 3000squre electronic parts production, final assembly and testing workshop, and another 8000square meters for metal part diecast, powder coating, and mechanical process. We also keep minimum inventory for common parts, so our lead time, sample: 3 days, small batch: 1-week, bulk order: 2-4weeks.



Q: How many years of warranty offered? How is lifespan of your product
A: all our product line offers 3 years of warranty base on terms and conditions, and lifespan is 6-8 years depends on working environment.



Q: do you help installation, maintenance and commissioning?

A: we provide good technical support, training or even on-site commissioning upon customer request. Very good one stop turnkey solution & service.

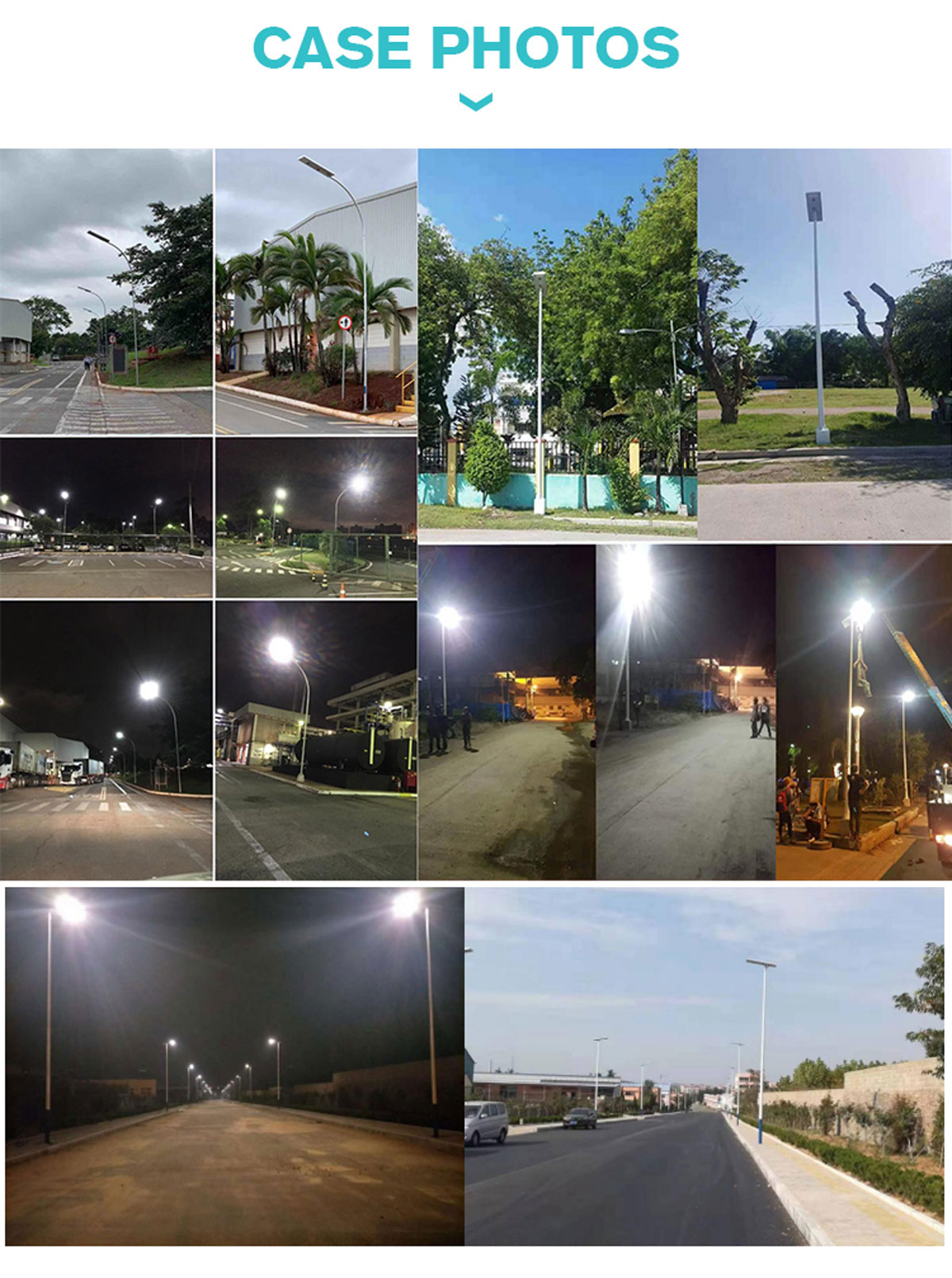

Application
