Home > Product > Darksky All in one solar street light

Integrated solar street lamp design manufacturer, especially the angle of the lighting beam

Model NO. YF-EIF-DK-60

PIR/microwave/Bluetooth/IoT system for optional, Multiple installation methods, energy saving, darkSky standard design for South America market, individual battery pack, adjustable bracket...

INQUIRY NOW
Main Features

Ten years of industry experience

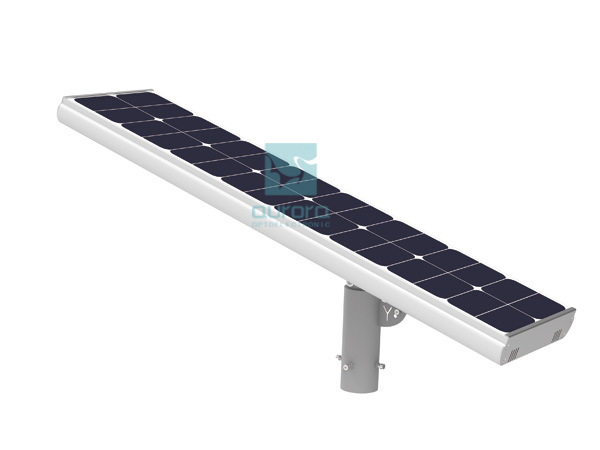

 solar street light integrated all in one design specially lighting beam angle

· PIR/microwave/Bluetooth/IoT system for optional,

· Multiple installation methods,

· Energy saving, individual battery pack,

· Adjustable bracket

· DarkSky standard design for South America MARKET

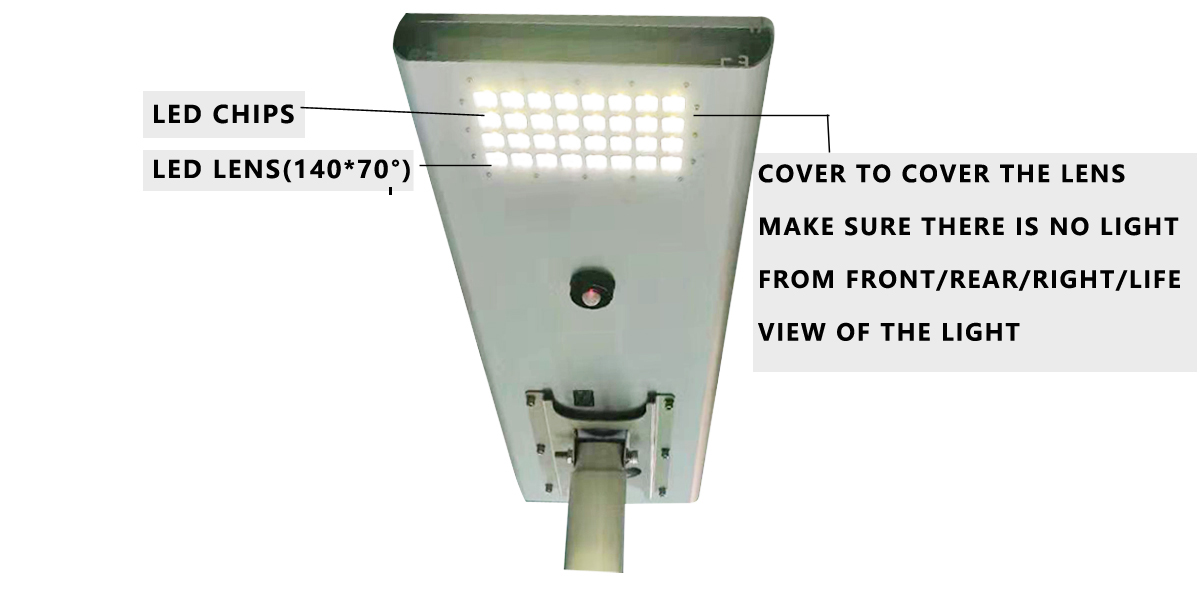

· Special and integrated shell lens to make sure there is no light from the front/rear/left/right view of the light, Darsky standard design specially for South America market.

· Streamline and Integrated design by aviation grade aluminum alloy body, anti-corrosion surface treatment for >10years lifespan, patented product.

· DIY module structure, simply divided by 3parts, solar panel, led with lamp case and energy pack.

· Amazing lighting effect with high brightness chips. Achieve more than 170lm/w

· Bluetooth function, just use mobile to control the lamp and set working parameter.

· PIR/microwave sensor for optional.

· Internet of things is also optional function, make all lamp work smart and intelligent control

· Simple and fool proof installation, just put the bracket onto pole and fasten the screws.


Parameter
ModelYF-EIF-DK-40YF-EIF-DK-60YF-EIF-DK-100
LED  Street Light Power20W(1 LED Module)30W(1 LED Module)40W(2 LED Module)
PV Model70W90W120W
Lumen Flux4500lm6600lm10000lm
LED Chip32PCS 5050 LED Bridgelux64PCS 5050 LED Bridgelux90PCS 5050 LED Bridgelux
Light Distribution TypeType IIType IIType II
Viewing Angle70°*140°70°*140°70°*140°
CRI>80>80>80
Life time>10 years>10 years>10 years
Battery TapeLiFePO4 BatteryLiFePO4 BatteryLiFePO4 Battery
Battery Capacity384WH512WH896WH
Battery life time(5-8 years)(5-8 years)(5-8 years)
MPPT Change ControllerIncluding Wireless Communucation ModuleIncluding Wireless Communucation ModuleIncluding Wireless Communucation Module
Working model

Motion Sensor/time

Motion Sensor/time

Motion Sensor/time

Charging Time(STC)6-8 Hours(With STC)6-8 Hours(With STC)6-8 Hours(With STC)
CertificateCE、ROSH、IP65CE、ROSH、IP65CE、ROSH、IP65
Storage Temperature0℃~45℃0℃~45℃0℃~45℃
Protection GradeIP65IP65IP65
Dimension Size(mm)L1010*W358*H82mmL1310*W235*H98mmL1630*W235*H98mm
Installstion Height5-7M6-8M7-10M
Installation Diameter≤80mm≤80mm≤80mm
Warranry3 years3 years3 years

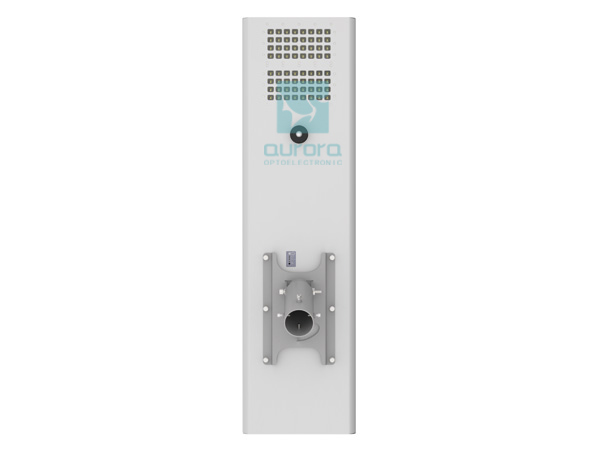

Product Details



solar street lights manufacturers

our companyOur honorOur exhibitionOur transportation service

FAQ:

Q: how about your company history?
A: our company original start from 2005 to supply components and accessory for led lighting company, then move to & only focus solar street lighting production since 2010, we have 10 years of solid business experience.



Q: What is your main product?
A: we used to manufacture various type of led outdoor light, but now we just focus on solar lighting, grid power light and some off-grid home system.



Q: What is your business service?
A: all our product is self-developed patent product, we also provide ODM/OEM service, semi knock down to help customer lower the tariff and fulfill local content.



Q: What is your core competence & flexibility?
A: we have stronger and experienced R & D, quality control, production and international sales team. Offer quick response and action to customer inquiry or characteristic requirement. Our product is module design, there is great flexibility to extend the specification to meet customer expectation.





Q: are your manufacturer? how about your production capacity and delivery lead time?

A: yes, we have more than 3000squre electronic parts production, final assembly and testing workshop, and another 8000square meters for metal part diecast, powder coating, and mechanical process. We also keep minimum inventory for common parts, so our lead time, sample: 3 days, small batch: 1-week, bulk order: 2-4weeks.



Q: How many years of warranty offered? How is lifespan of your product
A: all our product line offers 3 years of warranty base on terms and conditions, and lifespan is 6-8 years depends on working environment.



Q: do you help installation, maintenance and commissioning?

A: we provide good technical support, training or even on-site commissioning upon customer request. Very good one stop turnkey solution & service.

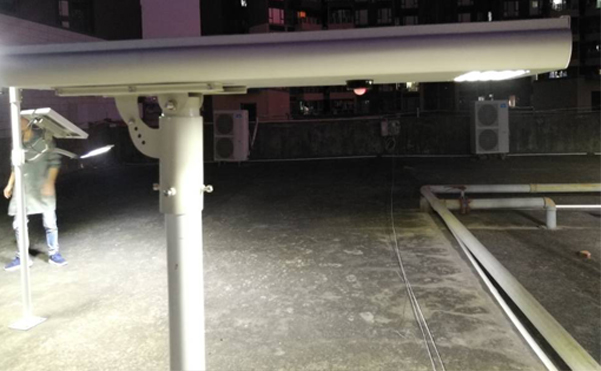

Application
