Monitor camera integrated solar street light work 24hrs

Model NO. YF-EIF-50W-CAM

2 megapixels pixel; 6mm lens size; MTV/CS lens interface; 1.0V/Lux-sec(550nm) Sensitivity; 32G TF Card (64G/128G optional) Storage; WIFI/4G/HOTPOT interface; Supporting Device Version: Android;

INQUIRY NOW
Product Details

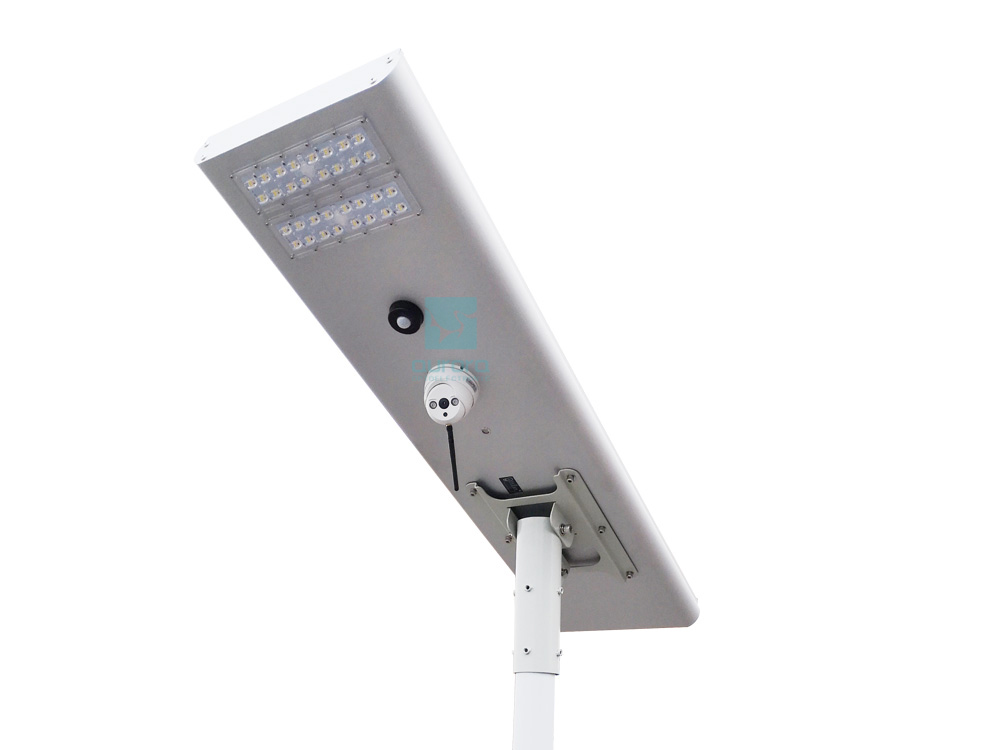

All in one solar security camera CCTV camera 50w with motion sensor

· 2 megapixels pixel;

· 6mm lens size;

· MTV/CS lens interface;

· 1.0V/Lux-sec(550nm) Sensitivity;

· 32G TF Card (64G/128G optional) Storage;

· WIFI/4G/HOTPOT interface;

· Supporting Device Version: Android;

· DC12V/1.0A(MAX) power supply;

· Mobile phone APP use for free, easy to use...


All in one solar security camera CCTV camera 50w with motion sensor

· LED solar security camera


Main Features

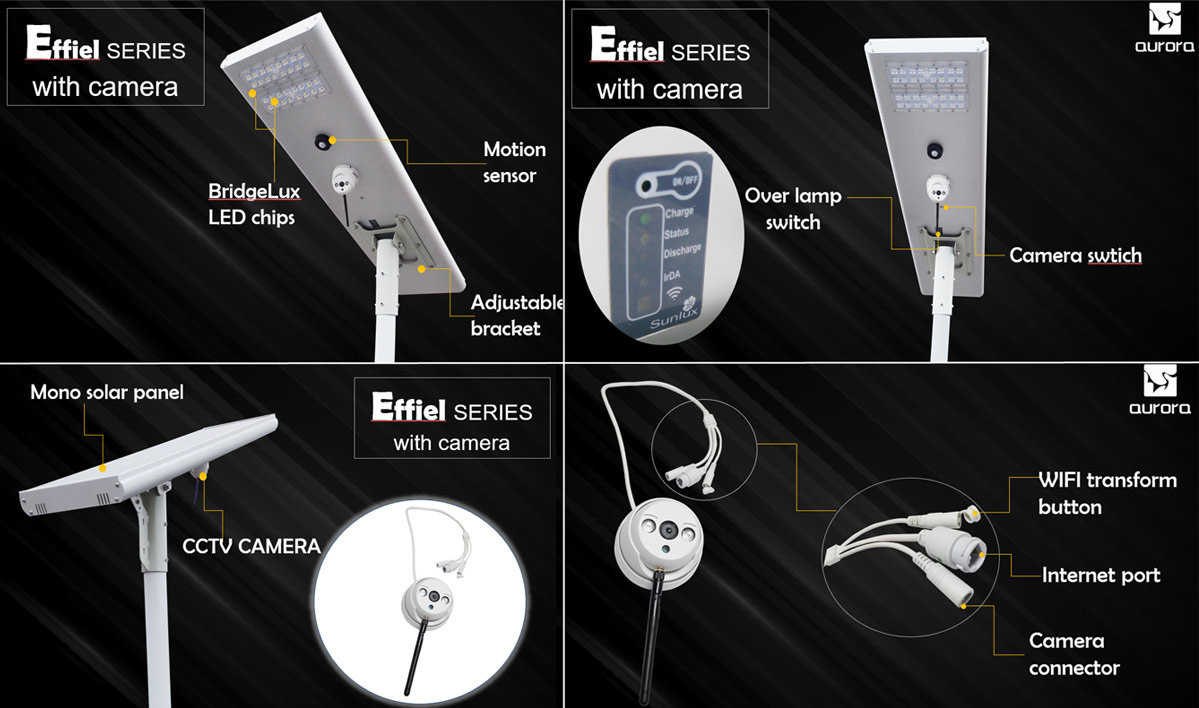

· Streamline and Integrated design by aviation grade aluminum alloy body, anti-corrosion surface treatment for >10years lifespan, patented product.

· DIY module structure, simply divided by 3parts, solar panel, led with lamp case and energy pack.

· Amazing lighting effect with high brightness chips. Achieve more than 170lm/w.

· with CCTV camera, real time monitoring from PC or Mobile.

· HQ Color Images & Video Monitor on Day/Night Time;

· Motion activated lighting.

· Cloud Storage & Build-in SD Card ,SD Card Max 128GB.

· Advanced Motion Detection to capture images& video.

· Free App, Send message and monitor in real time.

· Camera and lighting integration, monitoring lighting both.

· Solar power,No wire needed,No power supply needed.


Parameter
Item NO.YF-EIF-CAM- 50W
Solar Panel Max Power18V 120W
Lifespan25 years
BatteryTypeLiFePO4 battery  768WH
Lifespan8-10 years
LED SourceMax Power80W
Led Chip BrandBridgeLux LED
Luminous Flux12000Lm
Lifespan50,000hrs
Color Temperature2700-6500K
CRI >75Ra
Beam Angle140x70°

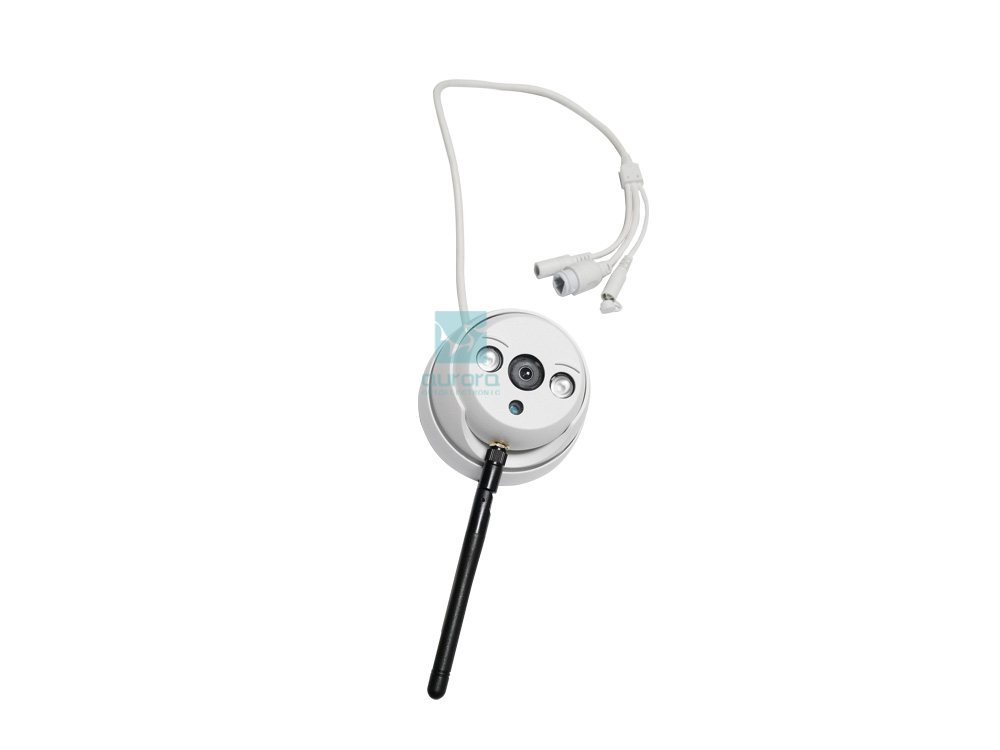

CCTV CameraPixel2 megapixels
Lens size6mm
Lens InterfaceMTV/CS
Sensitivity1.0V/Lux-sec(550nm)
Storage32G TF Card (64G/128G optional)
InterfaceWIFI
SafetyPassword protection
Power supplyDC12V/1.0A(MAX)
Working time24 hours
Charge TimeBy Strong Sunshine6-8 hours
Lighting TimeFull Power12-14hours
30% saving mode39 hours (3~5 rainy days)
Environment ParameterDischaring temperature-20 ℃ to +60 ℃
Charging Temperature0 ℃ to +60 ℃
Storage temperature-20 ℃ to +45 ℃
InstallationMounting Height8-10m
Space Between Lights

25-30m

MaterialSuperior aviation aluminum AL6063-T5
CertificationCE RoHs
IP RatingIP65
Warranty 3 years


Application
