All in two solar street light, safety technology for LiFePO4 battery safety, Smart energy saving lighting technology, 180lm/w, Patented spaceship alloy aluminum body design...
INQUIRY NOWTCS technology battery safety full 200W solar led street light solar powered

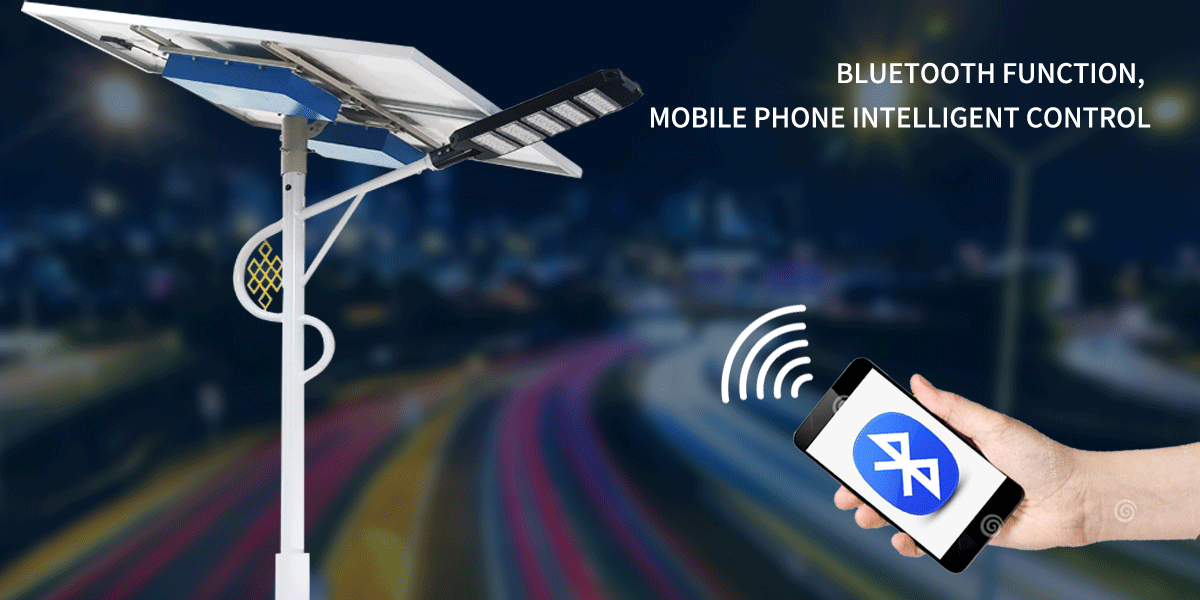

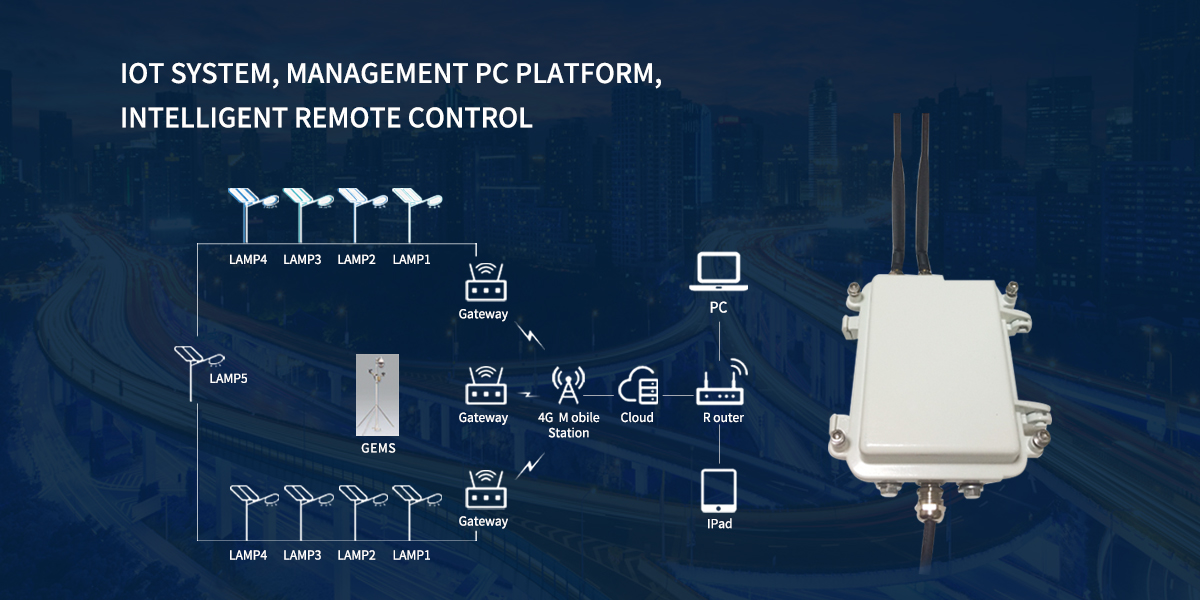

· Bluetooth/IoT system for optional,
· Safety technology for LiFePO4 battery safety,
· Smart energy saving lighting technology,

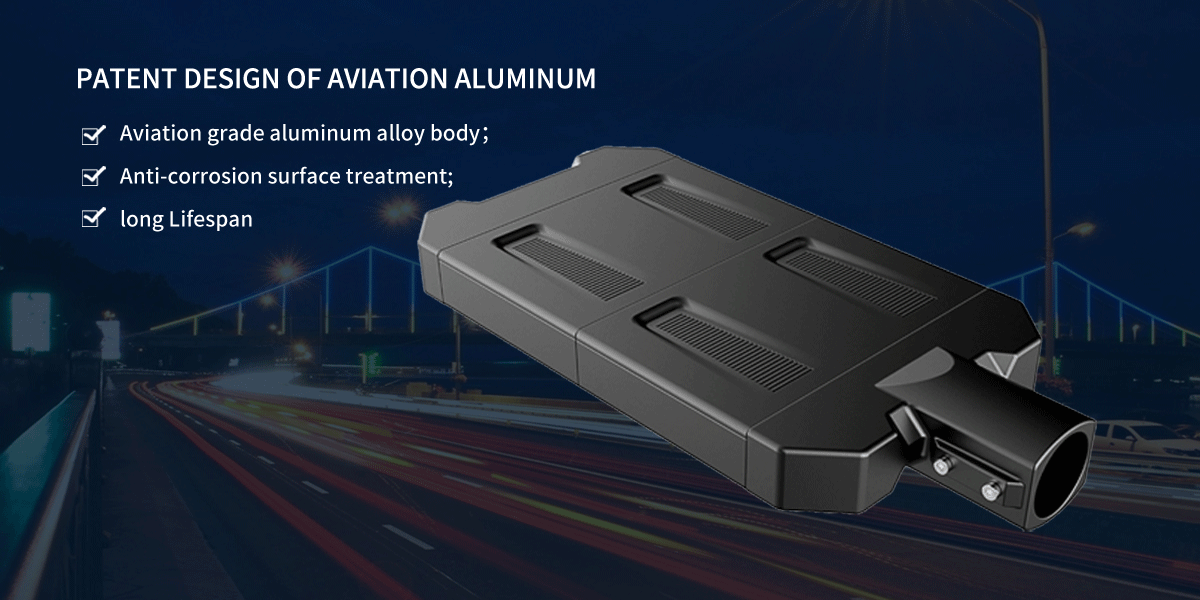

· Patented spaceship alloy aluminum body design
TCS technology battery safety full 200W solar led street light solar powered

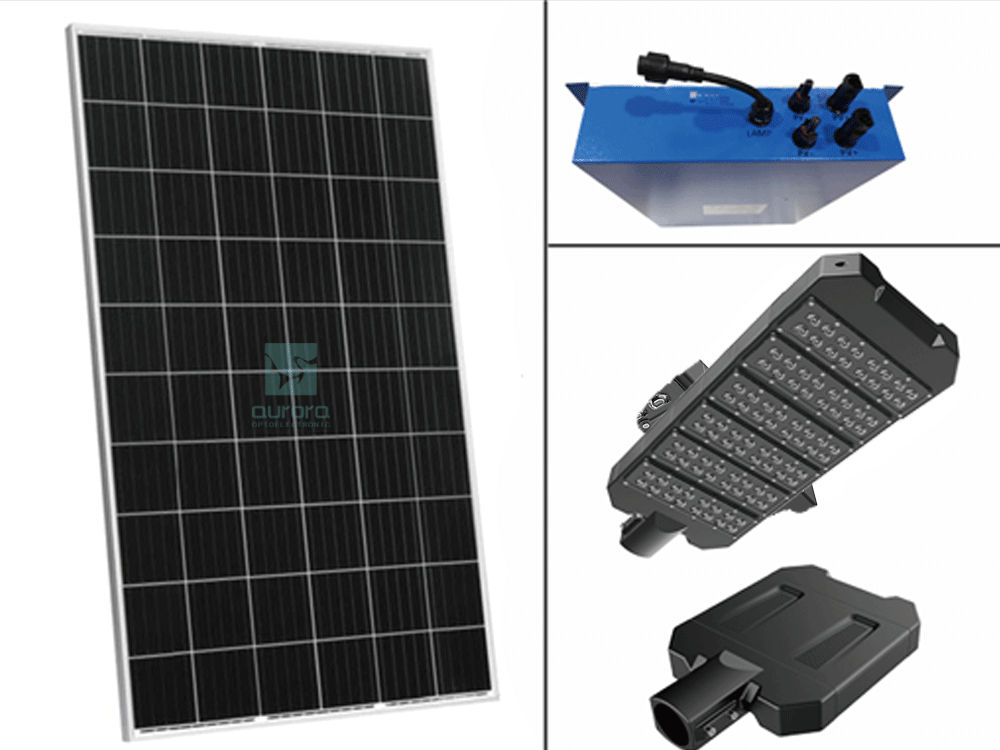

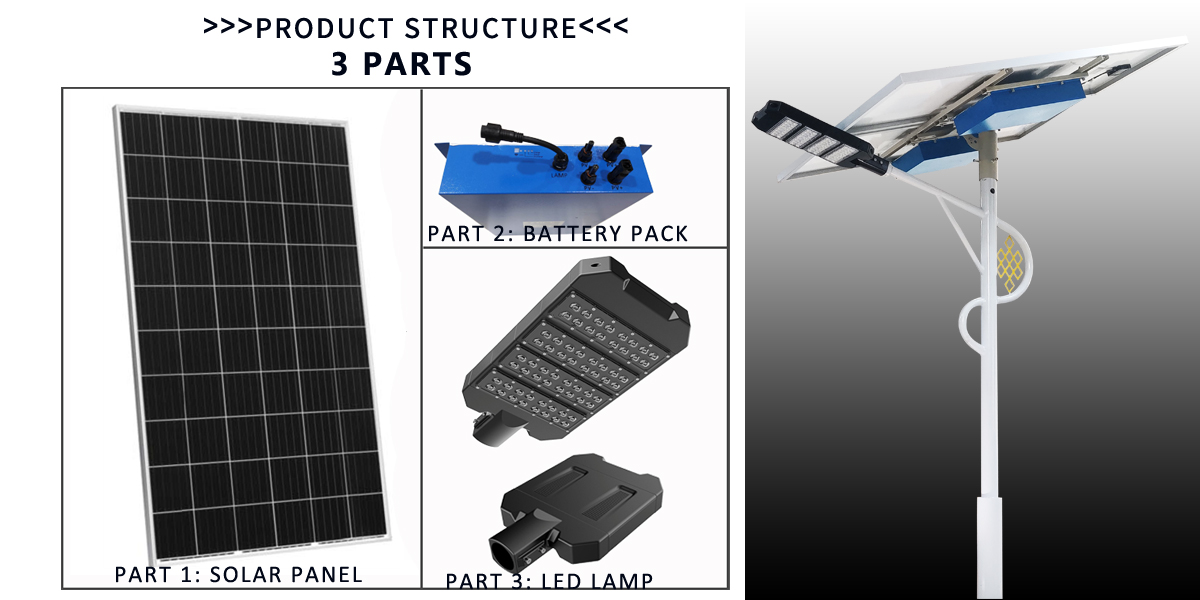

· All in three LED solar street lights
· Patented spaceship alloy aluminum body design, mix and match into different size and capacity
· Individual Energy pack, TCS technology for battery safety, anti-temperature
· Super high lumens output, Specialist product to replace tradition grid power lighting.

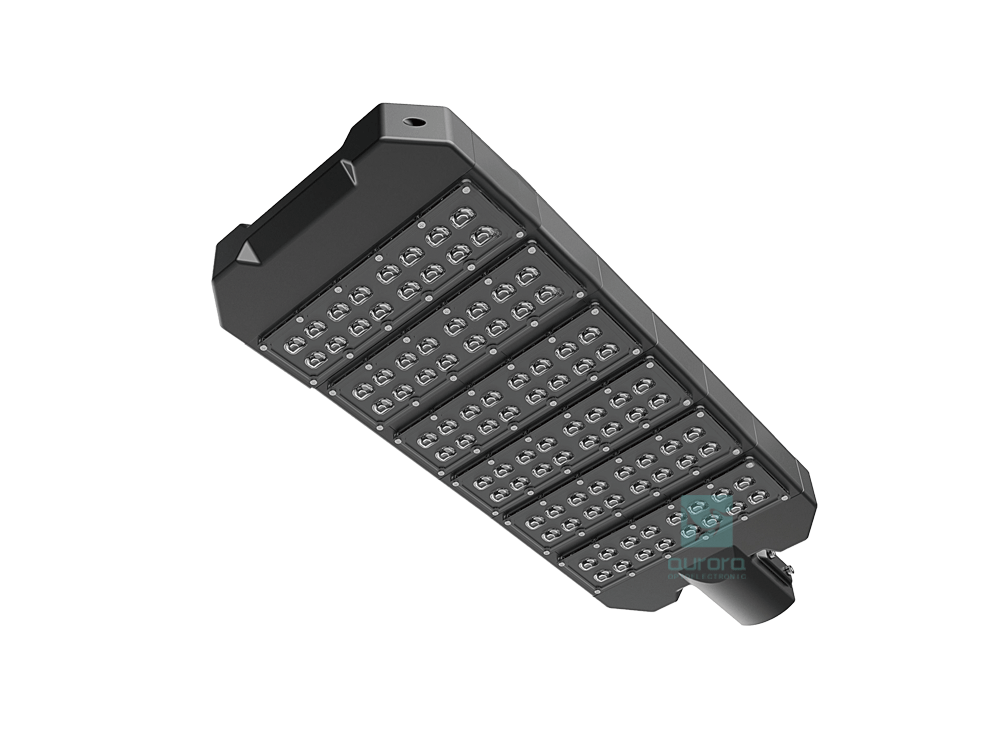

· Led module structure

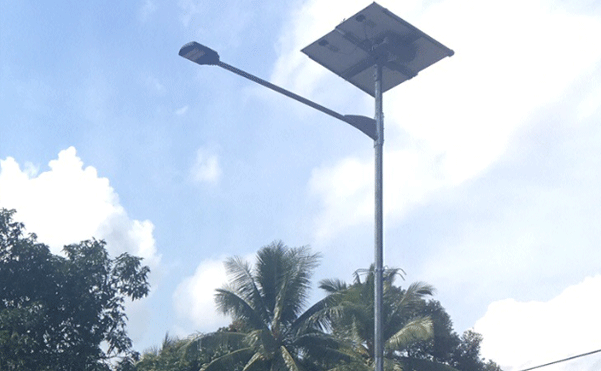

· Perfect solution for main road, high way lighting project.
Model | YF-SLX-120W-3 | YF-SLX-150W-3 | YF-SLX-200W-3 |
LED Street Light Power | 120W(4 LED Modules) | 150W(5 LED Modules) | 200W(6 LED Modules) |

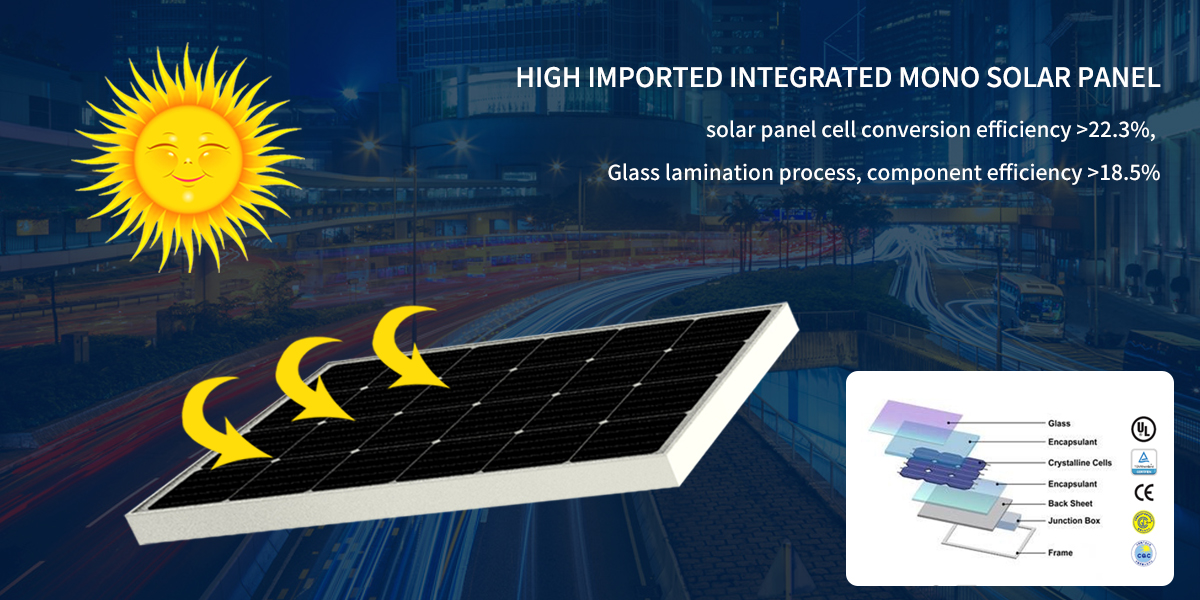

PV Model | 150W*2pcs | 180W*2pcs | 220W*2pcs |
Life Time | 25years ( The power attenuation of each year is around 1%) | 25years ( The power attenuation of each year is around 1%) | 25years ( The power attenuation of each year is around 1%) |
Light Efficiency | 180lm/w | 180lm/w | 180lm/w |

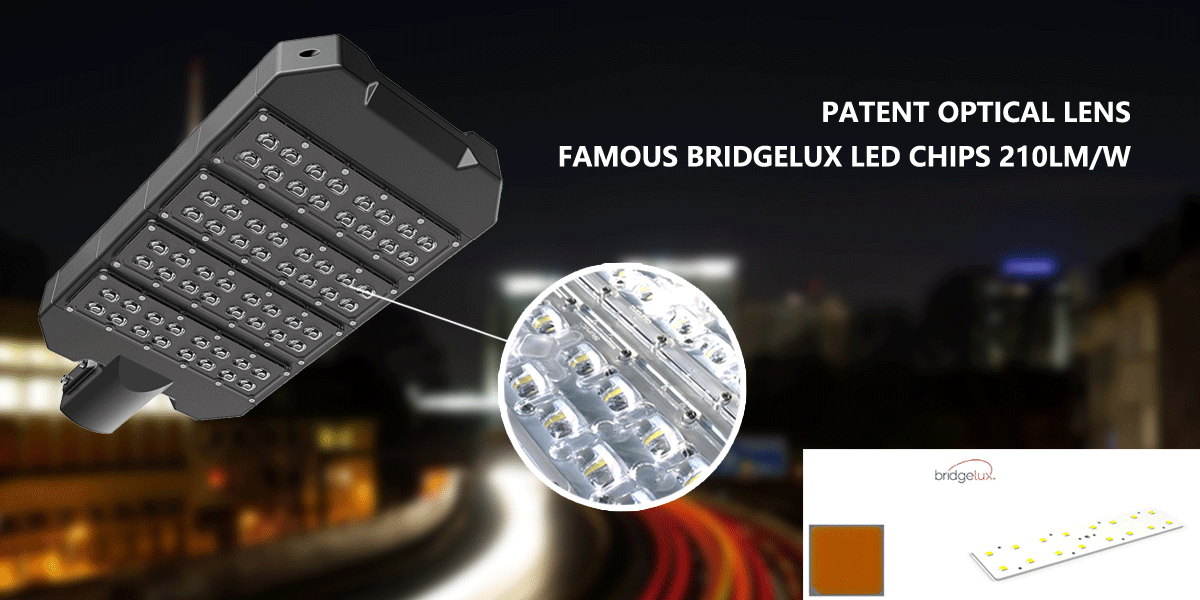

LED Chip | 5050 LED BridgeLux | 5050 LED BridgeLux | 5050 LED BridgeLux |
Light Distribution Type | Type II | Type II | Type II |
Viewing Angle | 70°*140° | 70°*140° | 70°*140° |
Color Temperature | 3000K-6500K,Typical value(5500K-6000K) | 3000K-6500K,Typical value(5500K-6000K) | 3000K-6500K,Typical value(5500K-6000K) |
CRI | >80 | >80 | >80 |
Lifetime | >10 years | >10 years | >10 years |
Battery Tape | LiFePO4 Battery | LiFePO4 Battery | LiFePO4 Battery |
Battery Capacity | 1530WH | 2304WH | 3072WH |
Battery life time | (5-8 years) | (5-8 years) | (5-8 years) |
MPPT Change Controller | Including Wireless Communucation Module | Including Wireless Communucation Module | Including Wireless Communucation Module |
Working model | Time dimming | Time dimming | Time dimming |
Circuit Protection | Overcharge,Discharge,short circuit,open load,lightning protection and other functions | Overcharge,Discharge,short circuit,open load,lightning protection and other functions | Overcharge,Discharge,short circuit,open load,lightning protection and other functions |
Life Time | 8years | 8years | 8years |
Charging Time(STC) | 6-8 Hours(With STC) | 6-8 Hours(With STC) | 6-8 Hours(With STC) |
Certificate | CE、ROSH、IP65 | CE、ROSH、IP65 | CE、ROSH、IP65 |
Storage Temperature | -20℃~+60℃(When the temperature is below -10℃,derating use ) | 0℃~45℃ | 0℃~45℃ |

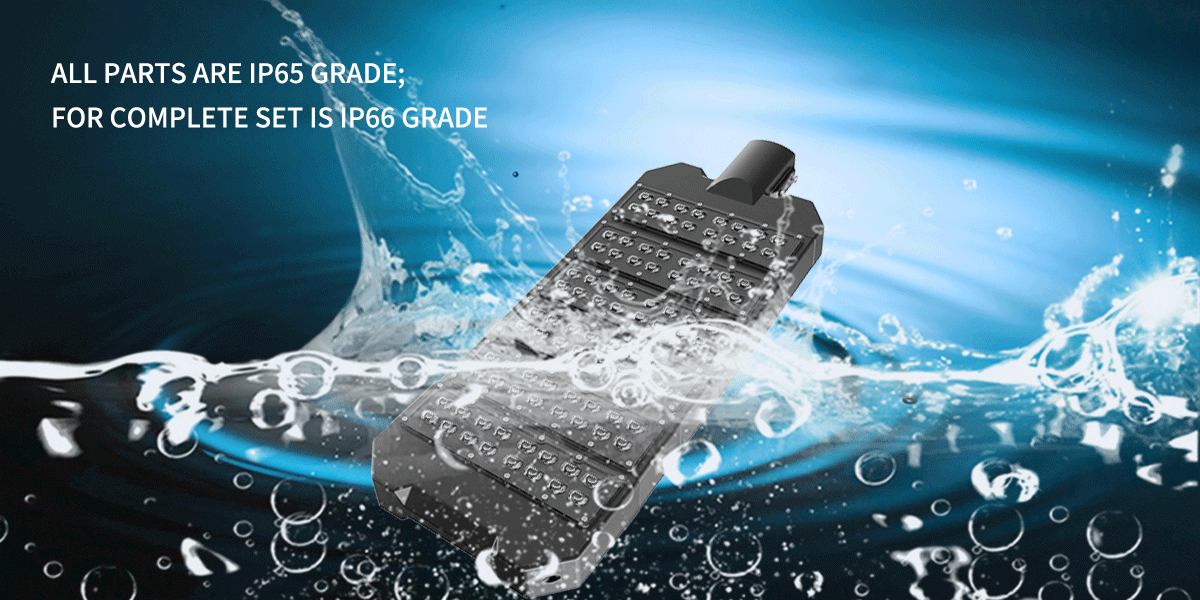

Protection Grade | IP65 | IP65 | IP65 |
Dimension Size(mm) | 586*265*74.5mm | 671*265*74.5mm | 756*265*74.5mm |
Installation Height | 8m to 12m light pole | 8m to 12m light pole | 8m to 12m light pole |
Installation Diameter | ≤60mm | ≤60mm | ≤60mm |
Warranry | 3years | 3years | 3years |
